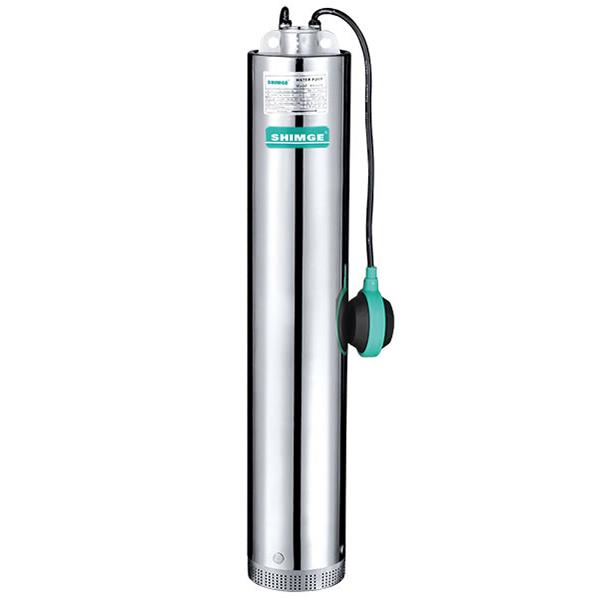

NK(m) 5’’ Submersible Pump

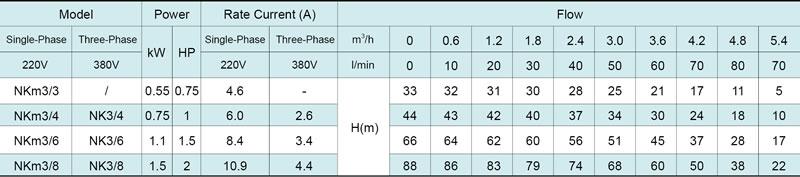

Performance Range

Max. Flow: 5.4m3/h
Max. Head: 88m

Application Limits

1. Max. ambient temperature < 40℃;
2. Sand content(in mass fraction)up to 0.01%;
3. hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
4. pH 6.5 to 8.5;
5. Maximum: 70m below the static water table.


Application Fields

1. Building/construction work/domestic water supply;
2. Irrigation and small water work;
3. Landscaping;
4. Water conservancy system;
5. Factory.


1. Single phase motor equipped with start box which is built in capacitor ¤t mode thermal protector, convenient for replacement;
2. Built-in motor, the suction pump body
3. Installation in 5" or larger boreholes.

Optional Available On Request

Impeller is available with stainless steel 304

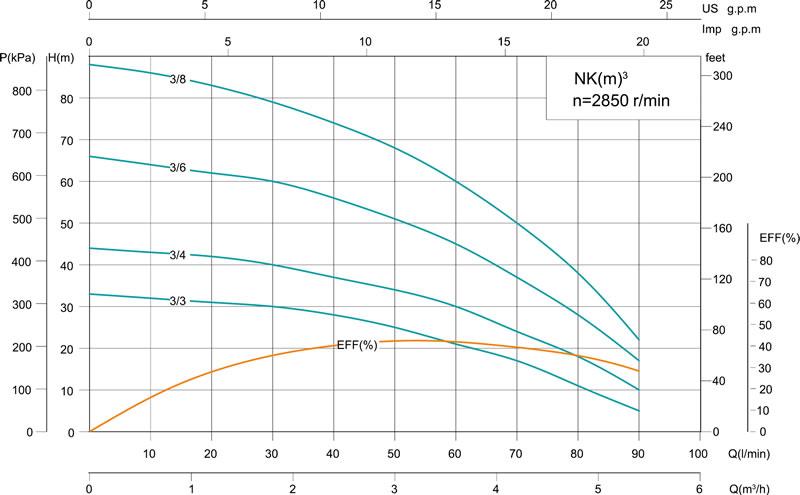

Performance Curve
