This product has been discontinued and removed from our shelves.

Q(D)X submersible pump for clean water is scientifically designed. It is mainly applied for flowing rain water collection and pumping water from well, river, cellar, garage, basement, etc. It is also suitable for water supply and drainage in breeding industry. In addition, the applicable medium is clean water without abrasive particles.

Technical Parameters

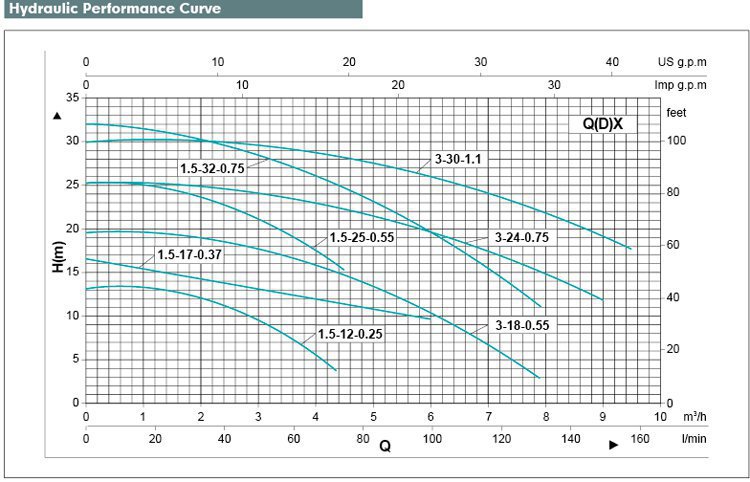

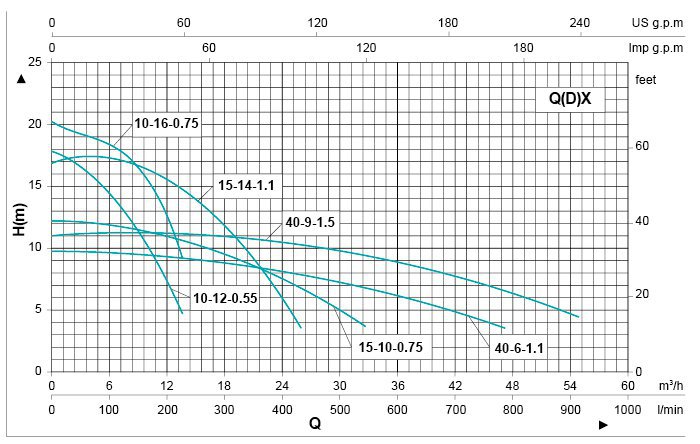

Hydraulic Performance Curve

1. Pump body: Cast aluminum
2. Motor bracket: Cast aluminum
3. Impeller: Aluminum
4. Motor shaft: CS 45#
5. Mechanical seal: Ceramic-graphite, ceramic-ceramic
6. Suction strainer: Plated iron
7. Copper winding

Working Conditions
1. Max. submersion depth: 5 meters
2. Liquid temperature: Up to +40℃
3. Ambient temperature: Up to +40℃

1. 2-pole induction motor
2. Insulation class: E
3. Protection rating: IP X8
4. Single-phase with capacitor and thermal overload protection

Model Instruction
QDX 1.5 - 17 - 0.37 (F)
(F): With float switch.
0.37: Rated power (kW)
17: Rated head (m).
1.5: Rated flow (m3/h).
QDX: Model code, and no "D" means three-phase

As a professional submersible pumps for clean water manufacturer and supplier based in China, SHIMGE offers a broad range of products, including fixed speed circulation pump, self-priming peripheral pump, horizontal multistage centrifugal pump etc.
