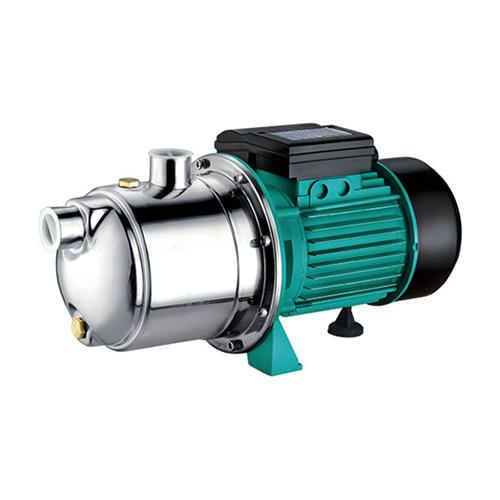

JET-G1 Self-Priming Jet Pump

inquiry form
Performance Range

1. Max. Flow: 6m3/h
2. Max. Head: 48m

Application Limits

1. Suction head up to 9m
2. Liquid temperature up to +40℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 6bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5

Certificate

Applications Fields

1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc.

Features

1. 304 stainless steel pressed tensile pump body & pump cover
2. Hydraulic optimization design, excellent performance
3. Nozzle, guide vane and the impeller PPO engineering plastics
4. Products are complete in specifications, meet drinking water standards

Motor

1. Single-Phase 220V/50Hz
2. Three-Phase 380V/50Hz
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B

Optional Available on Request

1. NSK bearing
2. Motor whose insulation class is F
3. Other voltage or frequency is 60Hz

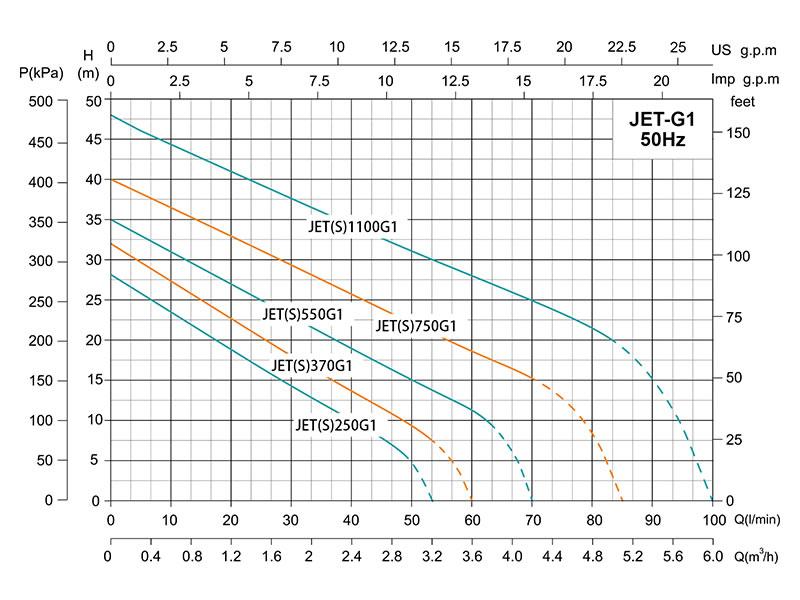

Performance Curve
