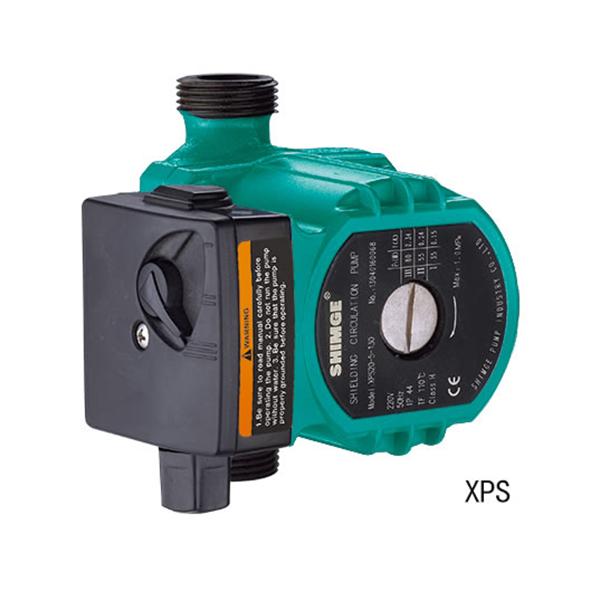

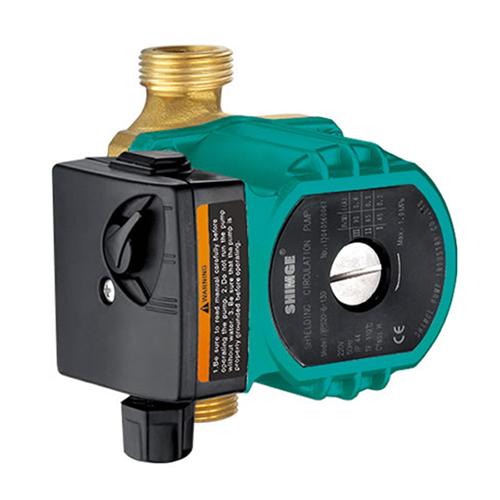

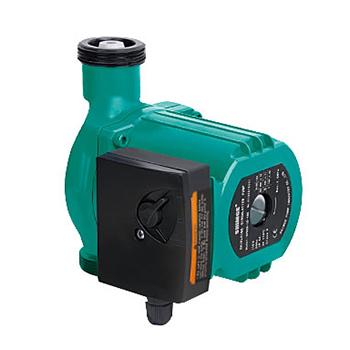

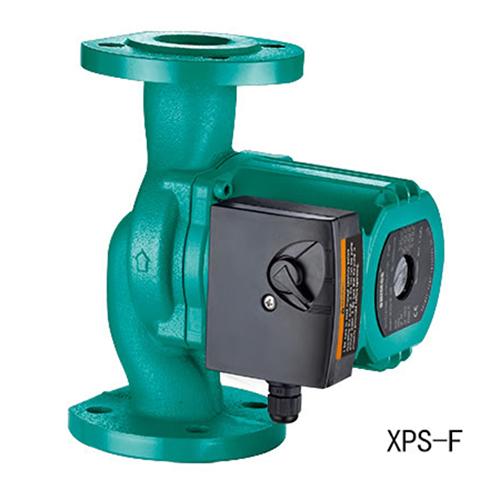

XPS Three Speed Circulation Pump

inquiry form
Performance Range

1. Max. Flow: 10m3/h
2. Max. Head: 12m

Application Limits

1. Liquid temperature: +2℃~+110℃
2. Maximum ambient temperature: +40℃
3. Maximum system pressure: 10bar
4. Protection level: IP44
5. Mains connection: 220V/50Hz, 220V/60Hz, 127V/60Hz
6. Insulation class: H
7. Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water
8. Installation: the motor shaft must be kept in horizontal direction
9. pH: 6.5 to 8.5

Certificate

Applications Fields

XPS circulating pumps are designed for circulation of liquids in heating and air-conditioning systems. Pumps with bronze or stainless steel housings are also suitable for use in hot-water service systems. Examples of typical applications are mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system, etc.

Features

1. 3-speed adjustment
2. Low noise
3. No leakage

Optional Available on Request

1. Products can be customized according to customer's voltage and frequency
2. Brass pump body, enamel pump body, stainless steel pump body

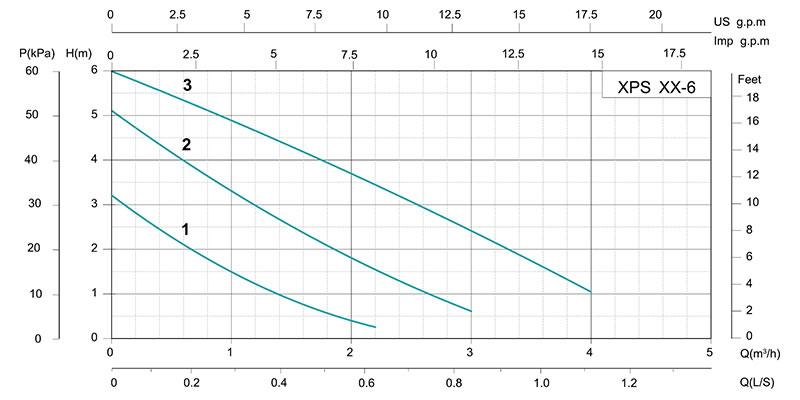

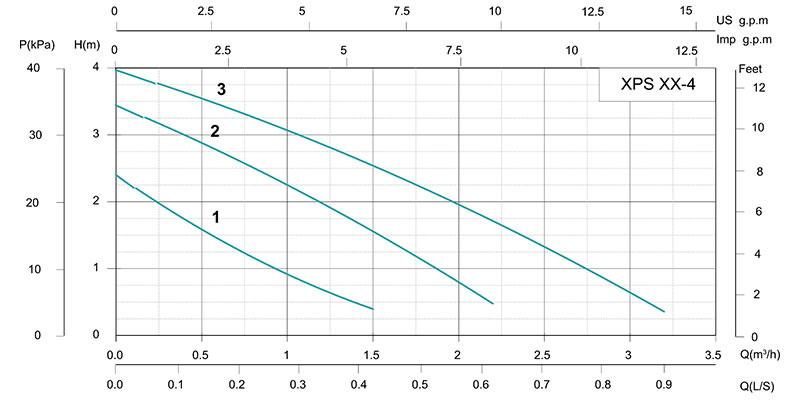

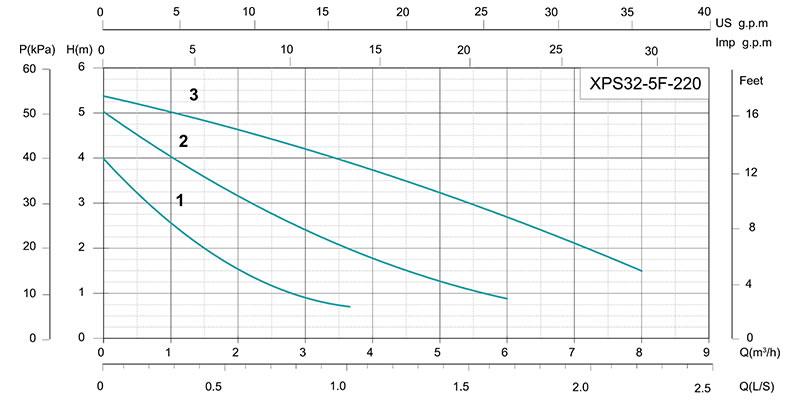

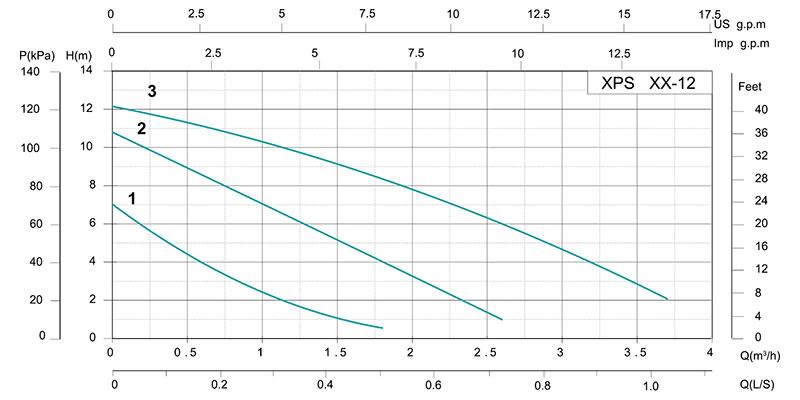

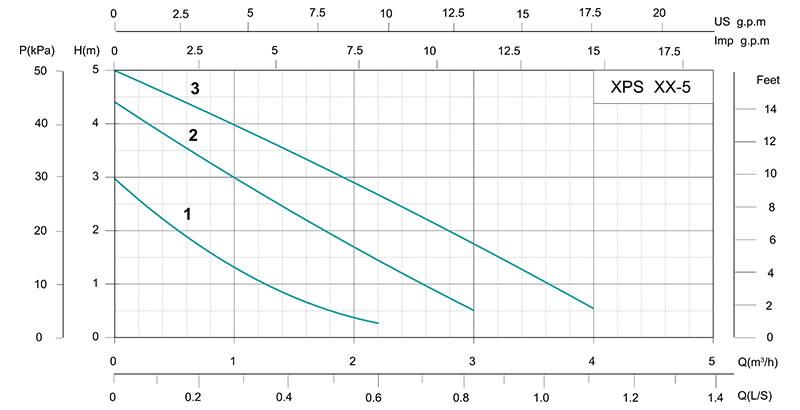

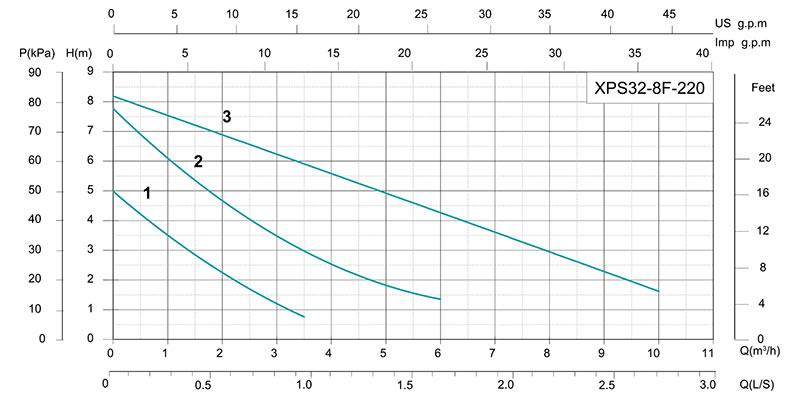

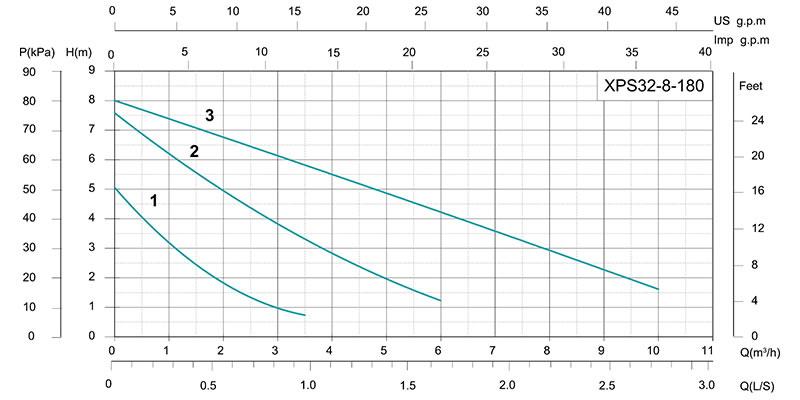

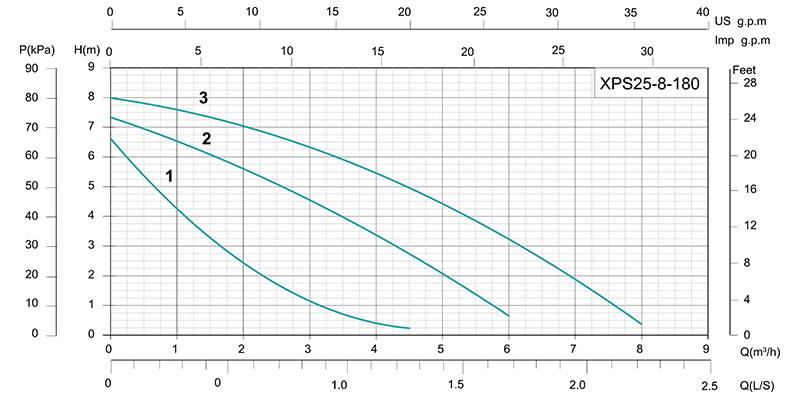

Performance Curve
