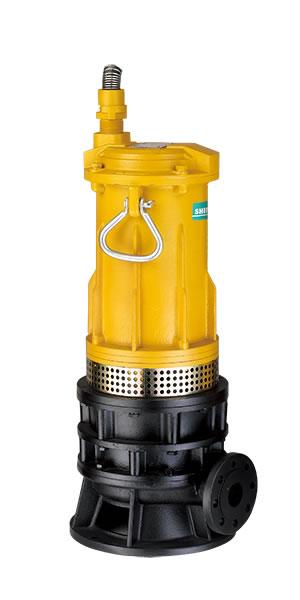

WQ2 Multi-stage Submersible Sewage Pump

Performance Range

Max. Flow: 35m3/h
Max. Head: 98m

Application Limits

1. Maximum liquid temperature +40℃
2. pH level from 4-10
3. Maximum liquid density 1.2×103kg/m3
4. Power frequency is 50Hz. Nominal voltage is 380VAC for three phase with the range from -10% to 10%.
5. Immersion depth from 0.5m-5m


Application Fields

WQ series pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as short fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc. They are ideal equipment for agricultural irrigation and drainage, pool silt cleaning and site construction, but do not apply to the location with explosion-proof requirements.


1. Large power submersible sewage pump, the standard flange outlet.
2. Double channel impeller, good flow capacity, excellent hydraulic performance.
3. The stainless steel shaft extension, carbide double side mechanical sealing.

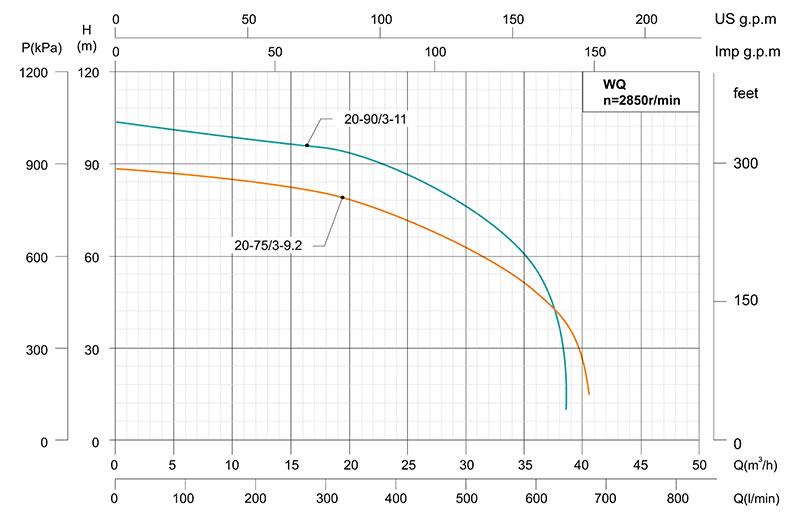

Performance Curves
