This product has been discontinued and removed from our shelves.

The main parts of non-adjustable speed circulator pump include cast aluminum motor casing, engineering plastic impeller, stainless steel driving shaft, SIC bearing, ceramic thrust bearing, high quality EPDM O shaped seal ring, etc.

This product adopts pipeline connection which facilitates the installation as well as maintenance. The bearing shows excellent resistance to abrasion, and its service life is extended. The optimized selection chart and hydraulic design improve the working efficiency of our product. Based on these features, this circulator pump is suitable for solar energy, water heating, industrial circulation device, heating and ventilation, middle scale air conditioner, pressurizing water supply for family, ground heat source, etc.

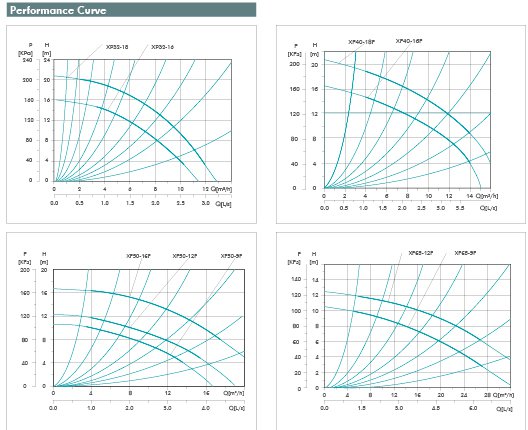

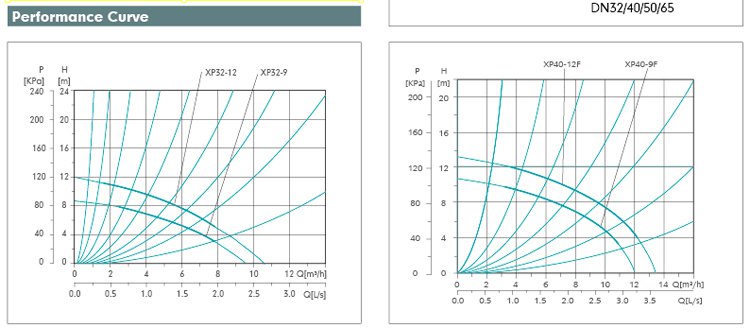

Performance Curve

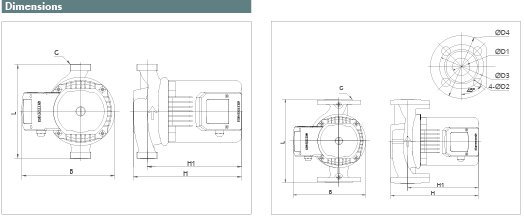

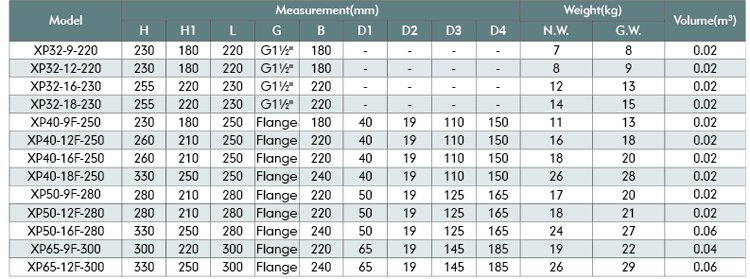

Dimensions

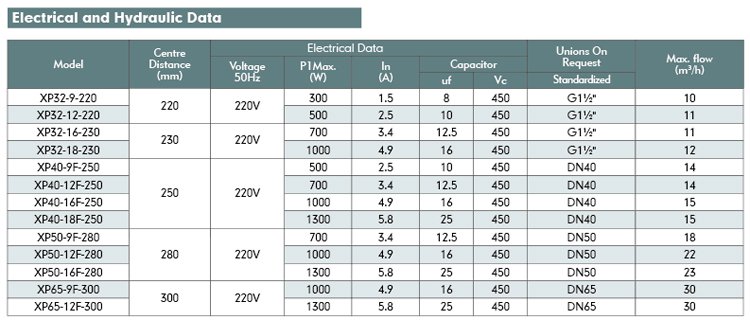

Electrical and Hydraulic Data

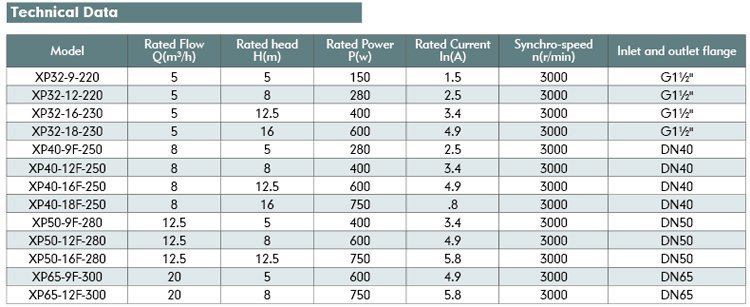

Technical Data

Working Conditions
1. Operating range: 0~30m3/h with head up to 18 meters
2. Liquid temperature range: 2℃~110℃
3. Ambient temperature range: 0℃~40℃
4. Max. working pressure: 10 bar (1000kPa)
5. Protection level: IP44
6. Power supply: 110V~240V, 380V, 50/60Hz
7. Insulation class: F
8. Installation: With motor axis horizontal
9. Pumped liquid characteristics: Clean, free from solid and mineral oil, non viscous, chemically neutral, close to the characteristics of water (max. 30% glycol).

We are an experienced non-adjustable speed circulator pump manufacturer and supplier in China. Our products include centrifugal pump, self-priming jet pump, peripheral turbine anti-blocking submersible pumps for 4” wells, cast iron submersible sewage pump, and more.
