Submersible Pump

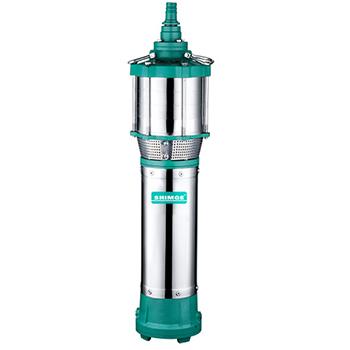

    1. Q(D)Y-K2 Multi-stage Submersible Pump
    2. Q(D)Y-K2 Multi-stage Submersible Pump Max. Flow: 34m3/h
      Max. Head: 127m
      Maximum liquid temperature +40℃
      pH level from 6.5-8.5
      Maximum sand content is 0.1%. Passage of suspended solids up to 0.2mm
      Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC for three phase with the range from -10% to 10%.

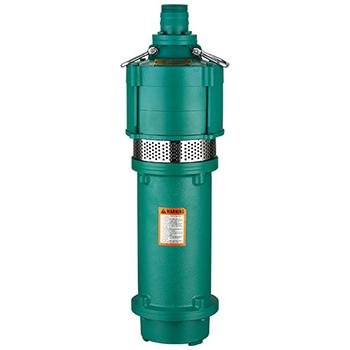

    1. QD Multi-stage Submersible Pump
    2. QD Multi-stage Submersible Pump Max. Flow: 31m3/h
      Max. Head: 120m
      Maximum liquid temperature +40℃
      pH level from 6.5-8.
      Maximum sand content is 0.1%. Passage of suspended solids up to 0.2mm
      Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC for three phase with the range from -10% to 10%.

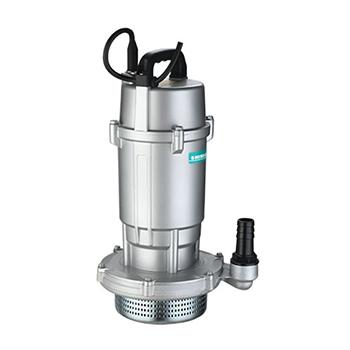

    1. QDX-K1 Submersible Drainage Pump
    2. QDX-K1 Submersible Drainage Pump Maximum liquid temperature +40℃
      pH level from 6.5-8.5
      Maximum sand content is 0.1%. Passage of suspended solids up to 0.2mm
      Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC for three phase with the range from -10% to 10%.
      Immersion depth from 0.5m-5m
      New industrial design, lower motor temperature rise.
      Optimized motor design, improved efficiency.

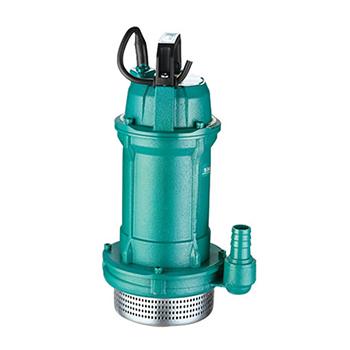

    1. QDX-L Submersible Drainage Pump
    2. QDX-L Submersible Drainage Pump Max. Flow: 61m3/h
      Max. Head: 33m
      Maximum liquid temperature +40℃
      pH level from 6.5-8.5
      Maximum sand content is 0.1%. Passage of suspended solids up to 0.2mm
      Immersion depth from 0.5m-5m

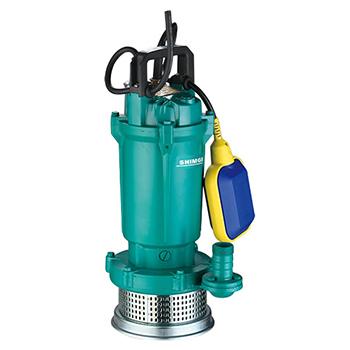

    1. QDX-T Submersible Drainage Pump
    2. QDX-T Submersible Drainage Pump Max. Flow: 44m3/h
      Max. Head: 33m
      Installing depth up to 5m
      Liquid temperature up to +40℃
      pH level from 6.5-8.5
      Maximum sand content is 0.1%. Passage of suspended solids up to 0.2mm
    1. QY Multi-stage Submersible Pump
    2. QY Multi-stage Submersible Pump Max. Flow: 360m3/h
      Max. Head: 190m
      Maximum liquid temperature +40℃
      Maximum sand content is 0.1%.Passage of suspended solids up to 0.2mm
      Power frequency is 50Hz.Nominal voltage is 380VAC for three phase with the range from -10% to 10%
      Immersion depth from 0.5m-5m

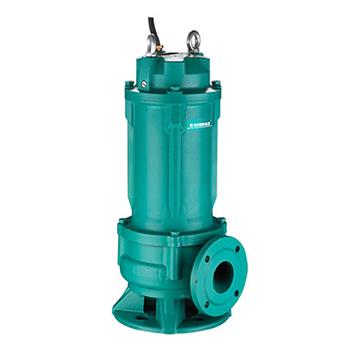

    1. WQ Multi-stage Submersible Sewage Pump
    2. WQ Multi-stage Submersible Sewage Pump Max. Flow: 63m3/h
      Max. Head: 44m
      Maximum liquid temperature +40℃
      pH level from 4-10
      Maximum liquid density 1.2×103kg/m3
      Voltage fluctuation range ±10%
      Immersion depth from 0.5m-5m
    1. WQ(D) Multi-stage Submersible Sewage Pump
    2. WQ(D) Multi-stage Submersible Sewage Pump Max. Flow: 140m3/h
      Max. Head: 44m
      Maximum liquid temperature +40℃
      pH level from 4-10
      Maximum liquid density 1.2×103kg/m3
      Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC or 415VAC for three phase with the range from -10% to 10%.
    1. WQ(D)AS-CB Grinder Pump
    2. WQ(D)AS-CB Grinder Pump Max. Flow: 123m3/h
      Max. Head: 31m
      Cutting impeller which is wear-resistant called: QT450-10, the pump body, motor bracket and the roof are all durable for cast iron material.
      Stainless steel shaft extension, carbide double-side mechanical sealing.
      Single phase with control box and the built-in thermal protector to protect the motor.
      Stainless steel ring handle.
    1. WQ(D)-L1 Submersible Sewage Pump
    2. WQ(D)-L1 Submersible Sewage Pump Max. Flow: 149m3/h
      Max. Head: 44m
      Maximum liquid temperature +40℃
      pH level from 4-10
      Maximum liquid density 1.2×103kg/m3
      Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VACfor three phase with the range from -10% to 10%.
      Immersion depth from 0.5m-5m
    1. WQ(D)S Stainless Steel Submersible Sewage Pump
    2. WQ(D)S Stainless Steel Submersible Sewage Pump Max. Flow: 36m3/h
      Max. Head: 17m
      Maximum liquid temperature +40℃
      pH level from 4-10
      Maximum liquid density 1.2×103kg/m3
      Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC for three phase with tolerance of ±10%.
      Immersion depth from 0.5m-5m

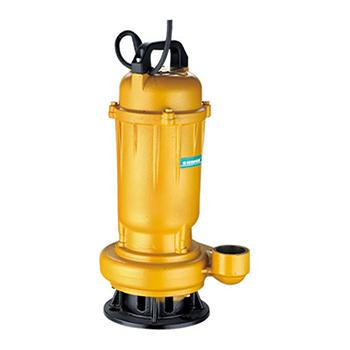

    1. WQK Submersible Sewage Pump
    2. WQK Submersible Sewage Pump Max. Flow: 97m3/h
      Max. Head: 44m
      Maximum liquid temperature +40℃
      pH level from 4-10
      Maximum liquid density 1.2×103 kg/m3
      Power frequency is 50Hz. Nominal voltage 380VAC or 415VAC for three phase with the range from -10% to 10%.
      Immersion depth from 0.5m-5m
    1. WSD Stainless Steel Submersible Sewage Pump
    2. WSD Stainless Steel Submersible Sewage Pump Max. Flow: 22m3/h
      Max. Head: 10
      Maximum liquid temperature +40℃
      pH level from 4-10
      Passage of suspended solids up to 50mm
      Power frequency is 50Hz. Voltage fluctuation range ±10%
    1. WVSD Stainless Steel Submersible Sewage Pump
    2. WVSD Stainless Steel Submersible Sewage Pump Max. Flow: 27m3/h
      Max. Head: 15
      Maximum liquid temperature +40℃
      pH level from 4-10
      Maximum liquid density 1.2×103 kg/m3
      Power frequency is 50Hz. Nominal voltage is 220VAC for single-phase and 380VAC with tolerance of ±10%.
      Immersion depth from 0.5m-5m
