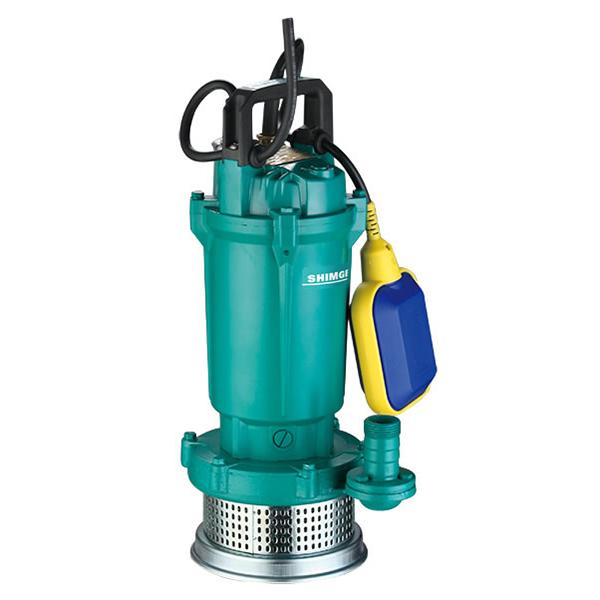

QDX-K1 Submersible Drainage Pump

QDX-K1 Submersible Drainage Pump

Performance Range

Max. Flow: 68m3/h
Max. Head: 33m

Application Limits
  • Maximum liquid temperature +40℃
  • pH level from 6.5-8.5
  • Maximum sand content is 0.1%. Passage of suspended solids up to 0.2mm
  • Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC for three phase with the range from -10% to 10%.
  • Immersion depth from 0.5m-5m
Certificate
Certificate
Applications Fields
  • Suitable for transferring water without abrasive particles
  • Suitable for well water lifting, farm irrigation, garden irrigation and living water supply
  • Suitable for industrial water eliminating, construction water supply and drainage, breeding industry water supply and drainage, etc.
Features
  • New industrial design, lower motor temperature rise.
  • Optimized motor design, improved efficiency.
  • Alloy impeller of high performance engineering plastics or aluminum.
Optional Available On Request

Other voltage or frequency is 60Hz

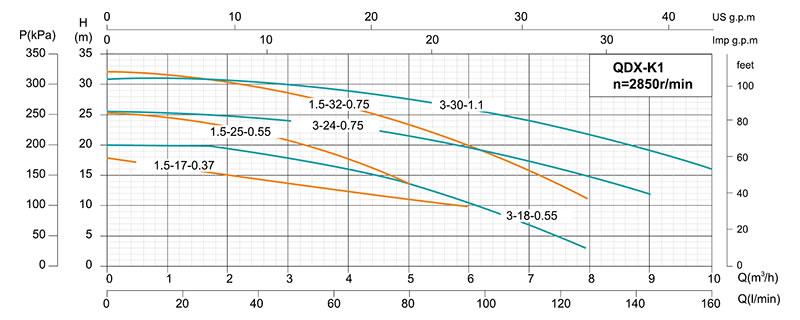

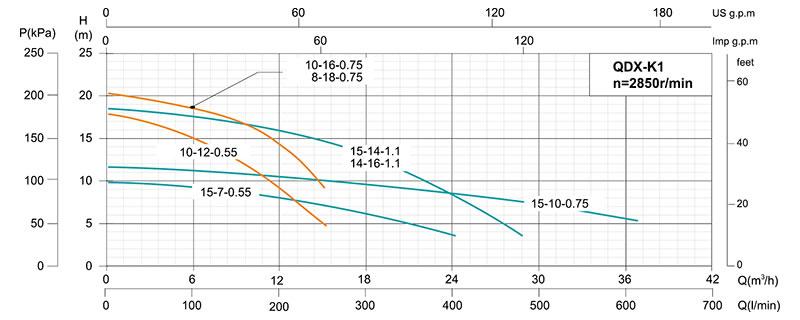

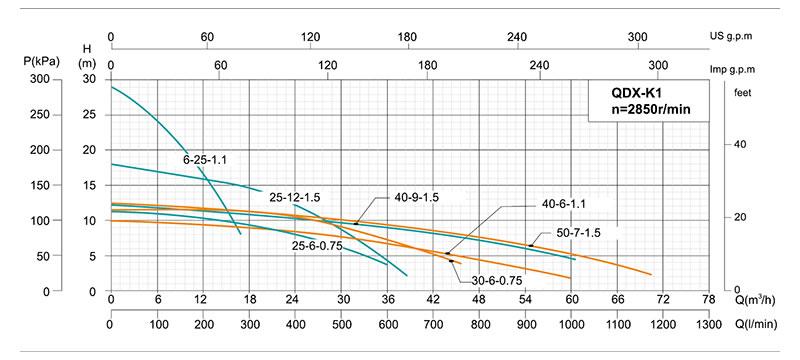

Performance Curve
QDX-K1 Submersible Drainage Pump
QDX-K1 Submersible Drainage Pump
QDX-K1 Submersible Drainage Pump
