This product has been discontinued and removed from our shelves.
Hot water high quality circulator pump is CPH series, and it is used to transfer clean water and other liquids that have similar physical and chemical properties with clean water. Its body is made of cast iron, and the impeller is made of plastic / cast iron. The raw material for shaft is ceramic / stainless steel, and the sealing parts are manufactured using antimony-graphite composite / SiC / fluororubber.
This circulator pump is widely applied in many fields, such as bathroom, heat pump, solar energy, remote transferring, hot water circulation, hot water pressurizing, sprinkling irrigation for garden, pressurizing for fire control, water supply and drainage for city and industry, pressurized water supply for high-rise building, refrigerating cycle of heating and ventilating system, and other cold/hot water circulation devices.

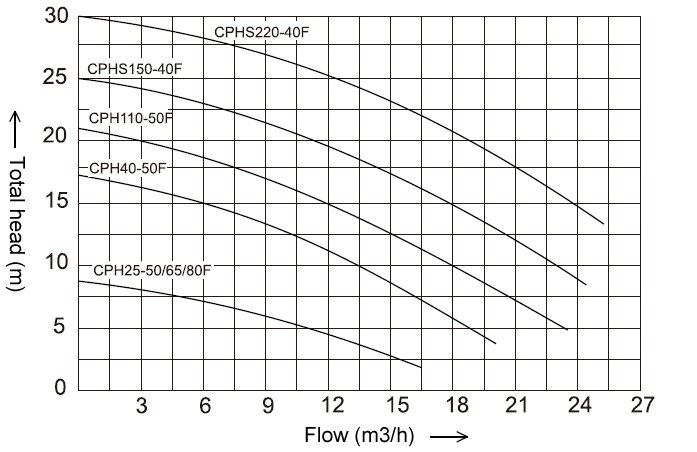

Performance Curve
| Model | Power | Inlet (inch) |
Outlet (inch) |
Max. Flow (m3/h) |
Max. Head(m) |
Dimensions (mm) |
Gross Weight (kg) |
|
| kW | HP | |||||||
| CPHB04-25F | 0.04 | 0.05 | 1 | 1 | 3 | 4 | 165×125×138 | 3 |
| CPHB04-32F | 0.04 | 0.05 | 1.25 | 1.25 | 3 | 4 | 165×125×138 | 3.2 |
| CPHB10-40F | 0.1 | 0.13 | 1.5 | 1.5 | 6 | 5 | 276×152×200 | 7.5 |
| CPHB10-50F | 0.1 | 0.13 | 2 | 2 | 8 | 5 | 276×152×200 | 7.5 |
| CPHB12-40F | 0.12 | 0.16 | 1.5 | 1.5 | 7 | 8 | 276×152×200 | 7.5 |
| CPHB12-50F | 0.12 | 0.16 | 2 | 2 | 10 | 8 | 276×152×200 | 7.5 |
| CPH25-50F | 0.25 | 0.33 | 2 | 2 | 16 | 8 | 310×195×350 | 19 |
| CPH25-65F | 0.25 | 0.33 | 2.5 | 2.5 | 16 | 8 | 310×195×350 | 19 |
| CPH25-80F | 0.25 | 0.33 | 3 | 3 | 16 | 8 | 310×195×350 | 19 |
| CPH40-50F | 0.4 | 0.54 | 2 | 2 | 19 | 17 | 315×235×430 | 26.5 |
| CPH110-50F | 1.1 | 1.5 | 2 | 2 | 21 | 20 | 315×235×430 | 28 |
| CPHS150-40F | 1.5 | 2 | 1.5 | 1.5 | 25 | 25 | 500×350×280 | 37.5 |
| CPHS220-40F | 2.2 | 3 | 1.5 | 1.5 | 25 | 30 | 500×350×280 | 40 |
Working Conditions
1. Applicable liquid: Clean water
2. Liquid temperature range: 0℃~100℃
3. Ambient temperature range: 0℃~40℃
4. Max. working pressure: ≤1.6Mpa
Motor and Pump
1. 2-pole motor, single/three phase, 50/60 Hz
2. Protection rating: IP44
3. Insulation class: F

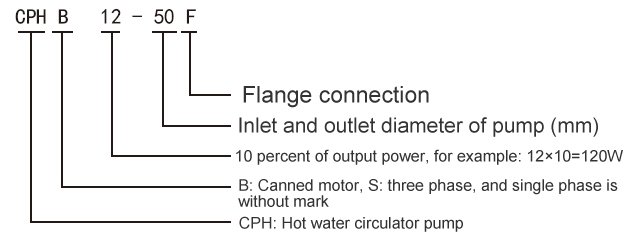

Model Instruction
SHIMGE is a China-based hot water high quality circulator pump manufacturer and supplier. We offer a comprehensive range of products, including horizontal multistage centrifugal pump, 6" deep well pump, small integrated pump unit, and more.
