This product has been discontinued and removed from our shelves.

Automatic booster circulation pump is ZP/ZPS series, and it contains cast aluminum motor casing, engineering plastic impeller, wear resistant ceramic shaft, ceramic thrust bearing, stainless steel protector rotor sleeve, automatic flow switch, mirror finished can, high quality EPDM O ring, etc.

The body is made of bronze, brass or cast iron, and no overload protection is needed. Meanwhile, our product is environment friendly, and it also has some excellent features, such as low noise, no leakage, beautiful appearance, convenient installation, reliable performance, etc. Depending on these properties, this circulation pump is used for solar energy, heating and ventilating system, automatic pressurizing for household water supply and others.

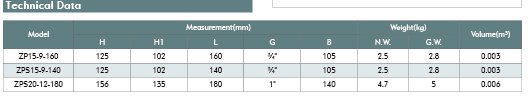

Technical Data

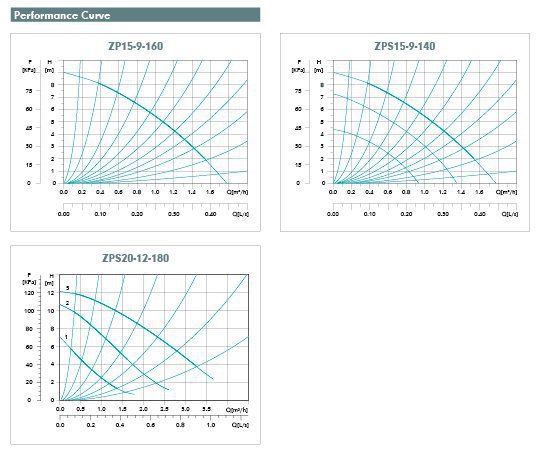

Performance Curve

Electrical and Hydraulic Data

Working Conditions
1. Operating range: 0~3.5m3h with head up to 12 meters
2. Liquid temperature range: 2℃~110℃
3. Ambient temperature range: 0℃~40℃
4. Max. working pressure: 10bar (1000kPa)
5. Protection level: IP44
6. Power supply: 110V~240V, 50/60Hz
7. Insulation class: H
8. Installation: With motor axis horizontal
9. Pumped liquid characteristics: Clean, free from solid and mineral oil, non viscous, chemically neutral, close to the characteristics of water (max. 30% glycol).

As an experienced automatic booster circulation pump manufacturer and supplier in China, SHIMGE provides a wide range of products that includes vertical multistage centrifugal pump, self-priming peripheral pump, multi-stage deep well submersible pump, and self priming jet pump, among others.

Related Names: Automatic Pressure Boosting Circulating Pump | Recycle Pumping Machine with Automatic Boost Control
