This product has been discontinued and removed from our shelves.

CP(m) centrifugal pump uses cast iron to produce pump body and motor bracket, and the impeller is made of brass which makes it very durable. The shaft with rotor takes stainless steel or CS45# as the raw material, and the mechanical seal is made of ceramic-graphite. In addition, copper winding is also applied.

This product has a centrifugal impeller structure, and it has some excellent advantages, such as low noise, stable running, high working efficiency, etc. The power range is 0.37~2.2kW, the maximum head range is 22~59m, and the maximum flow rate varies from 5.5m3/h to 8m3/h. Our machine is suitable for clean water with little impurities, and non corrosive liquid is also applicable. This centrifugal pump is mainly used for irrigation project for garden, household water supply system, water supply and pressurizing systems, such as pressurized water supply for the water heater in the barber's shop. In addition, this product should be installed in enclosed places, or at least some devices should be used to protect it against inclement weather.

Hydraulic Performance Curve

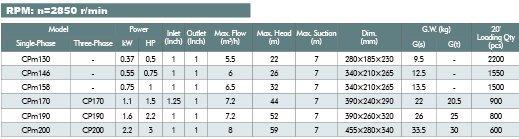

Technical Parameters

Working Conditions
1. Suction lift: Up to 7 meters
2. Liquid temperature: Up to +40℃
3. Ambient temperature: Up to +40℃
4. Max. working pressure: 6 bar

1. 2-pole induction motor: 50Hz
2. Insulation class: B
3. Protection rating: IP44
4. Single-phase with capacitor and thermal overload protection.

SHIMGE is a specialized centrifugal pump manufacturer and supplier in China. Our company provides a vast range of products, including self-priming peripheral pump, automatic pressurizing circulation pump, stainless steel submersible sewage pump, and more.

Related Names: Centrifugal Slag Slurry Pump | Centrifugal Slurry Pumping Machine
