This product has been discontinued and removed from our shelves.

SHFm centrifugal pump is mainly used for circulation system, farm irrigation and other conditions. Its body and motor bracket are made of cast iron, and the impeller is made of brass or cast iron. The raw material for mechanical seal is ceramic-graphite, and the shaft of rotor is manufactured using stainless steel or CS45#. The copper winding is also used.

The main features of this product is high flow and low head, and the maximum flow range is 21~60m3/h while the maximum head range is 11.9~22.5m. The suitable medium is clean water with little impurities, and corrosive liquid should not be tested. Moreover, this pump should be installed in enclosed place, or at least it should be protected against harsh weather.

Hydraulic Performance Curve

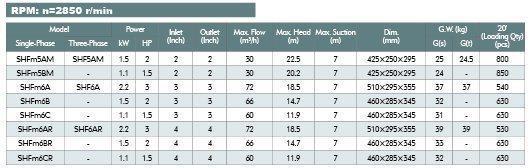

Technical Parameters

Working Conditions
1. Suction lift: Up to 7 meters
2. Liquid temperature: Up to +60℃
3. Ambient temperature: Up to +40℃
4. Max. working pressure: 6 bar

1. 2-pole motor: 50Hz
2. Insulation class: B
3. Protection rating: IP44
4. Single-phase with capacitor and thermal overload protection.

As a professional centrifugal pump manufacturer and supplier in China, we also provide intelligent frequency converter circulation pump, submersible pumps for clean water, automatic self-priming peripheral pump, submersible sewage pump, etc.
