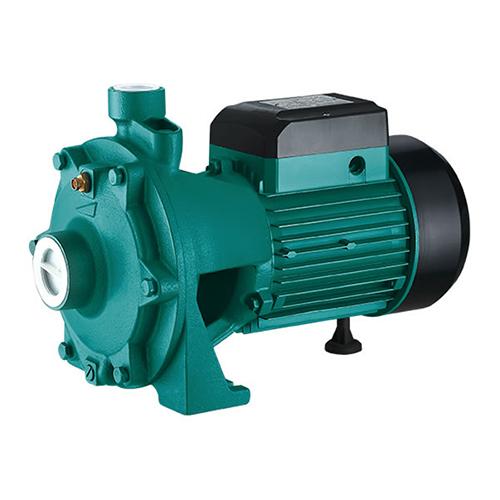

2SGP(m) Centrifugal Pump

2SGP(m) Centrifugal Pump

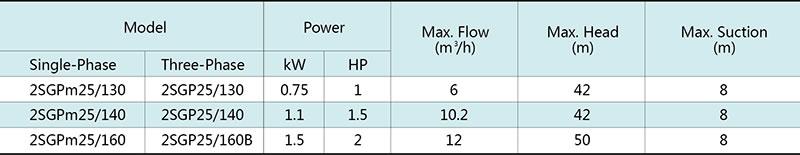

Performance Range

Max. Flow: 12m3/h
Max. Head: 50m

Application Limits
  • Suction head up to 8m
  • Liquid temperature up to +40℃
  • Ambient temperature up to +40℃
  • Max. Working pressure: 5bar
  • Voltage fluctuation should not exceed 10% of rated value.
  • pH: 6.5 to 8.5
Certificate
Certificate
Applications Fields
  • Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
  • Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc.
Features
  • Double impeller centrifugal pump, satisfies the requirement of high head.
  • Compact structure
Motor
  • Single-Phase 220V/50Hz
  • Three-Phase 380V/50Hz
  • Mechanical seal: Ceramic / Graphite / NBR rubber
  • Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
  • Protection: IP44
  • Insulation: Class B
Optional Available on Request
  • NSK bearing
  • Motor whose insulation class is F

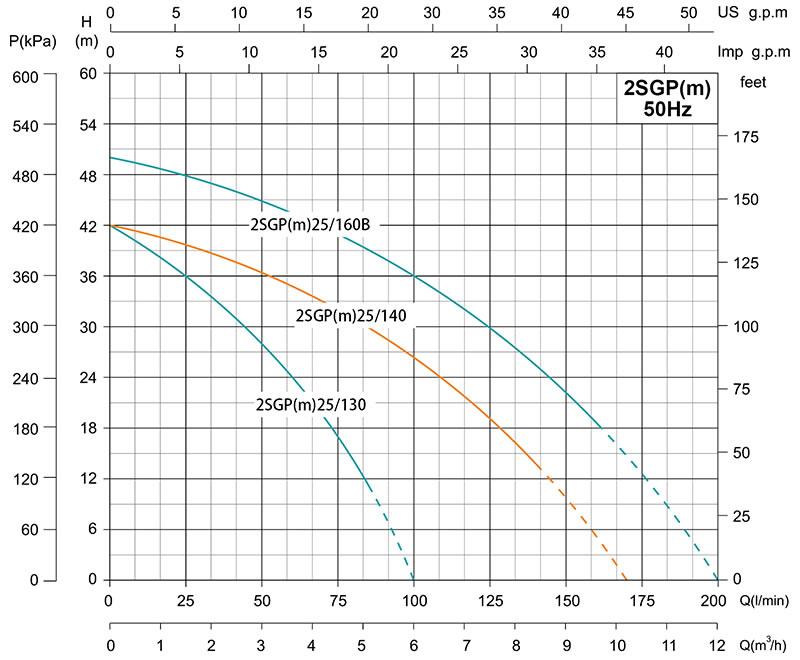

Performance Curve
2SGP(m) Centrifugal Pump
2SGP(m) Centrifugal Pump
