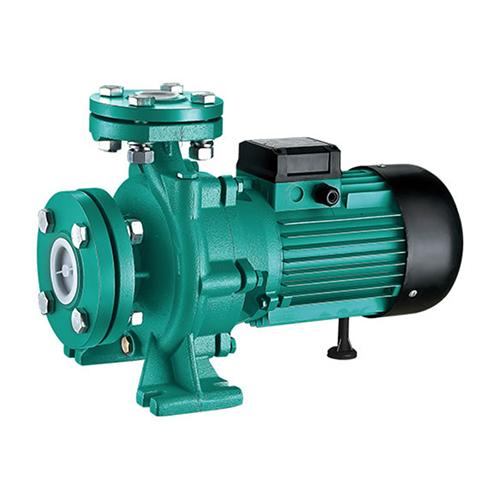

SGT Centrifugal Pump

inquiry form

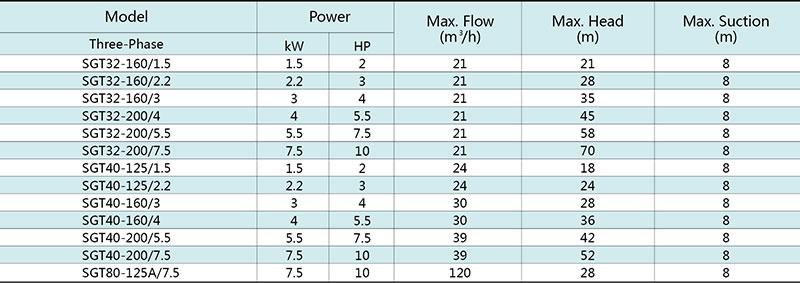

Performance Range

1. Max. Flow: 39m3/h
2. Max. Head: 52m

Application Limits

1. Suction head up to 8m
2. Liquid temperature up to +60℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 6bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5

Certificate

Applications Fields

1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in industrial and urban water supply, high-rise building boosting, fire protection system, breeding

Features

1. Standard flange centrifugal pump
2. Large flow, high efficiency

Motor

1. Three-Phase 380V/50Hz
2. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
3. Protection: IP44
4. Insulation: Class B

Optional Available on Request

1. Motor whose insulation class is F
2. NSK bearing

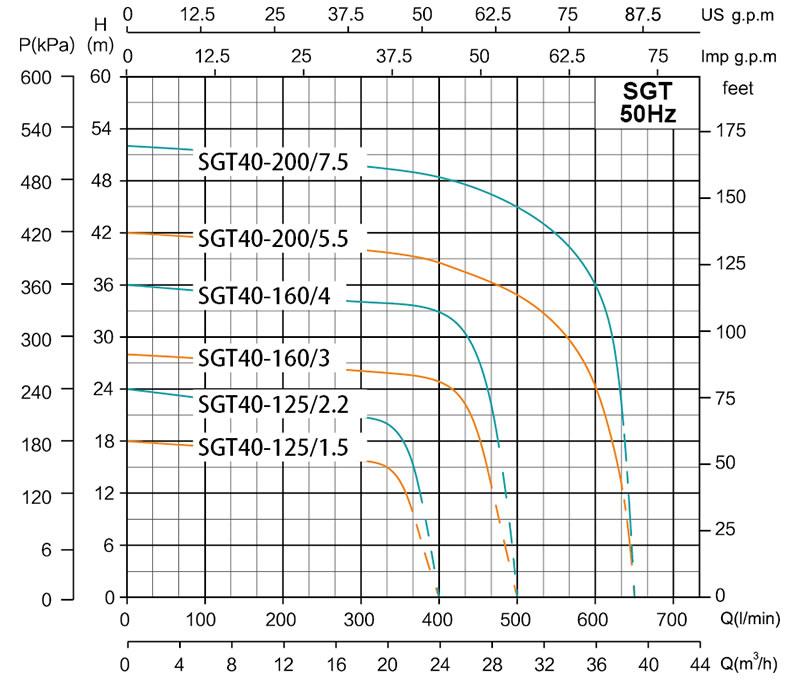

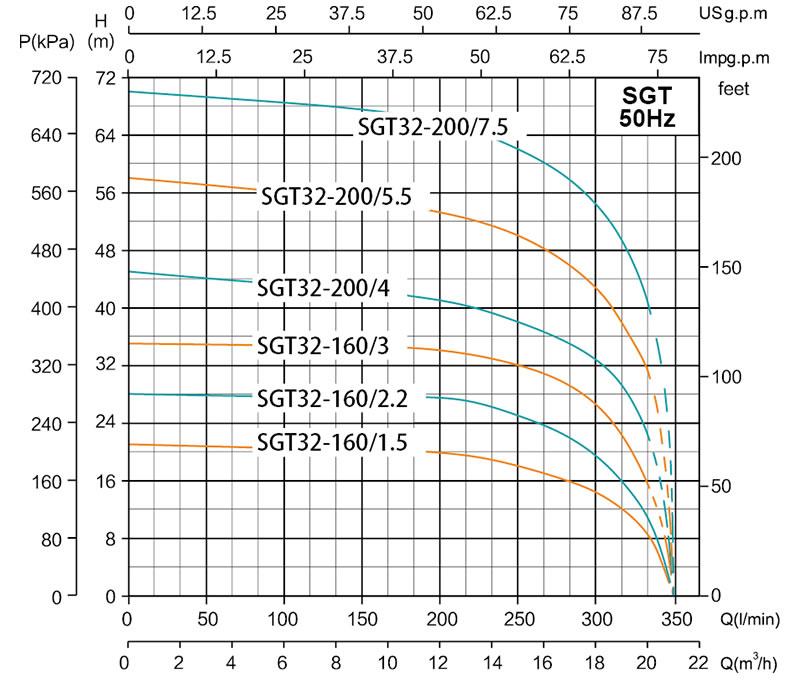

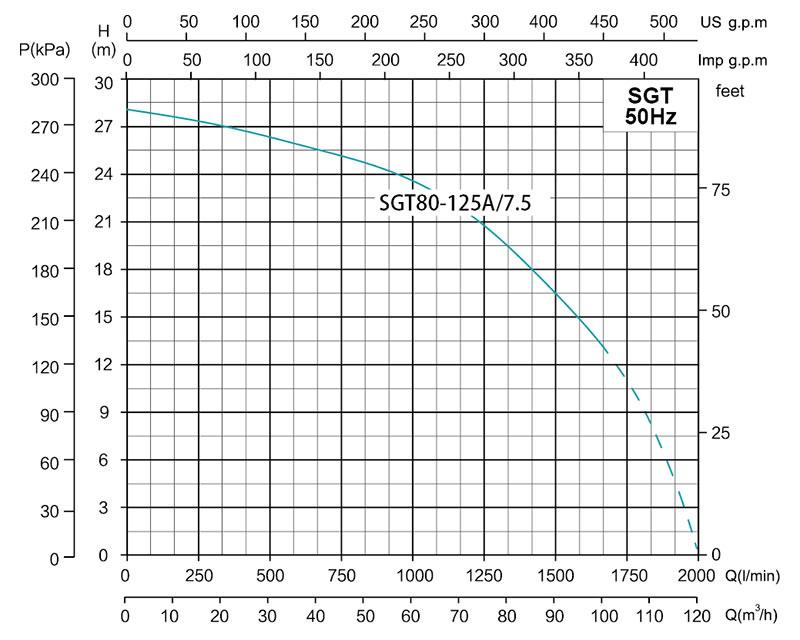

Performance Curve
