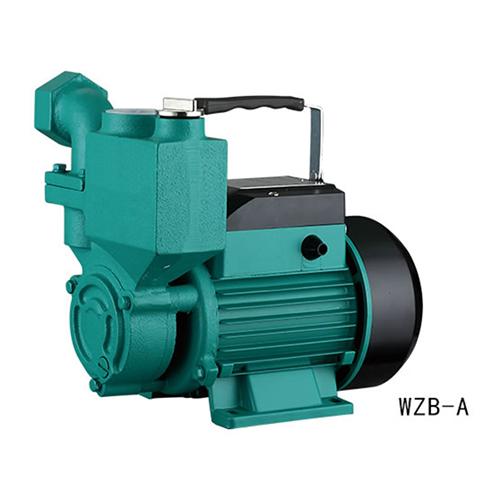

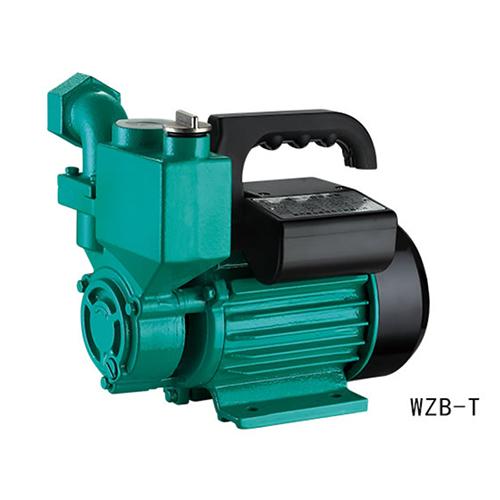

WZB Self-Priming Peripheral Pump

inquiry form
Performance Range

1. Max. Flow: 64m3/h
2. Max. Head: 55m

Application Limits

1. Suction head up to 8m
2. Liquid temperature up to +60℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 6bar
5. Voltage fluctuation should not exceed 10% f rated value.
6. pH: 6.5 to 8.5

Certificate

Applications Fields

1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in well water lifting, water tower water supply, living water supply, automatic irrigation system, small air conditioning system, various corollary equipment, etc.

Features

1. Self-priming pump
2. Built-in one-way valve
3. Add the impeller axial direction contact surface,stainless steel 304 inserts

Motor

1. Single-Phase 220V/50Hz
2. Three-Phase 380V/50Hz
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B

Optional Available On Request

1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz

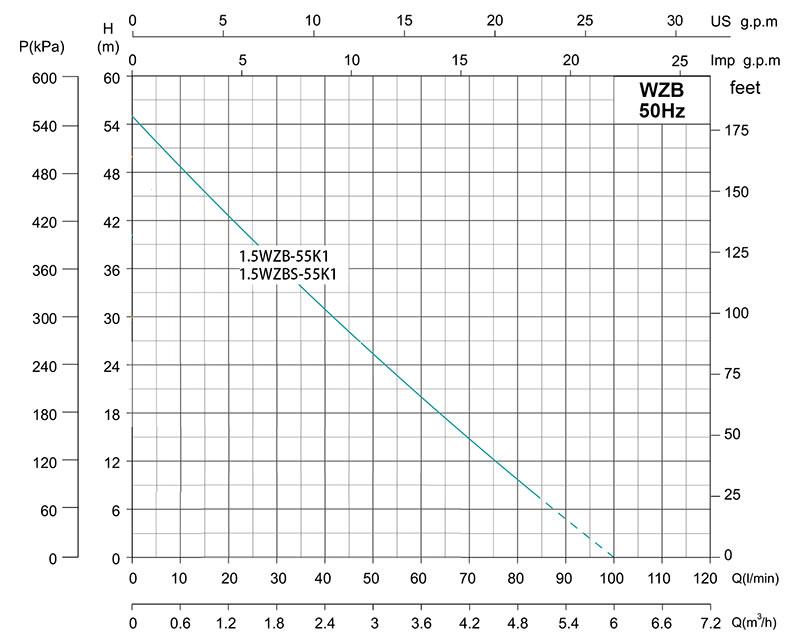

Performance Curve
