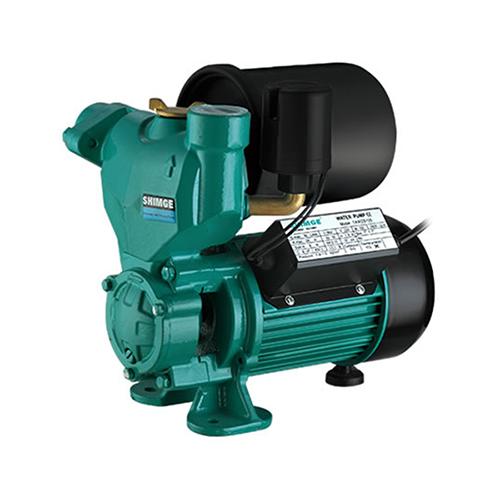

AWZB Automatic Self-Priming Peripheral Pump

inquiry form

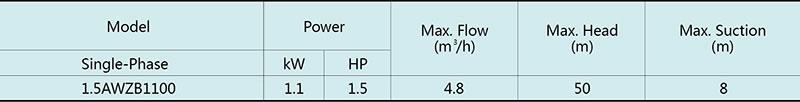

Performance Range

1. Max. Flow: 4.8m3/h
2. Max. Head: 50m

Application Limits

1. Suction head up to 8m
2. Liquid temperature up to +90℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 5bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5

Certificate

Applications Fields

1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in living water supply, water tower water supply, automatic irrigation system, well water lifting, various corollary equipment, etc.

Features

1. Automatic self-priming pump
2. Bulit-in check valve
3. Stainless steel 304 inserts

Motor

1. Single-Phase 220V/50Hz
2. Mechanical seal: Ceramic/Graphite/EPDM rubber
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B

Optional Available on Request

1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz

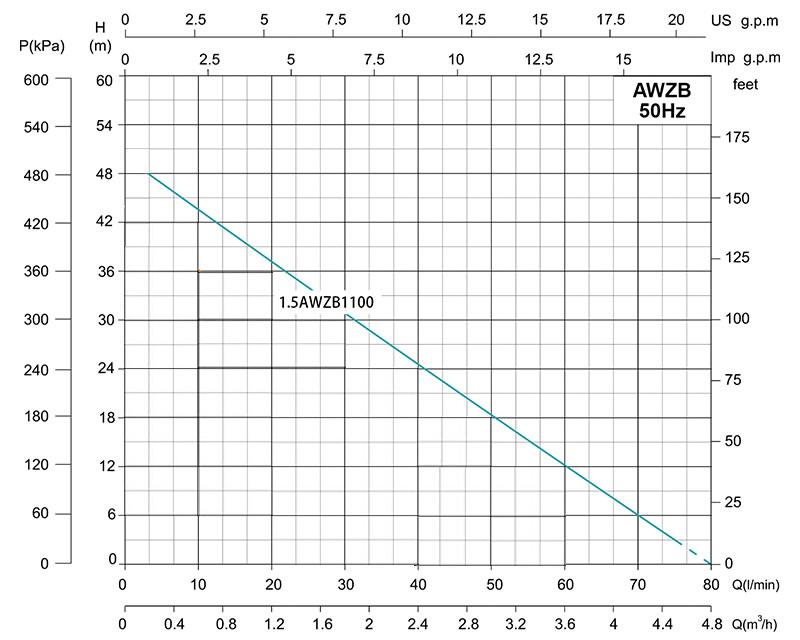

Performance Curve
