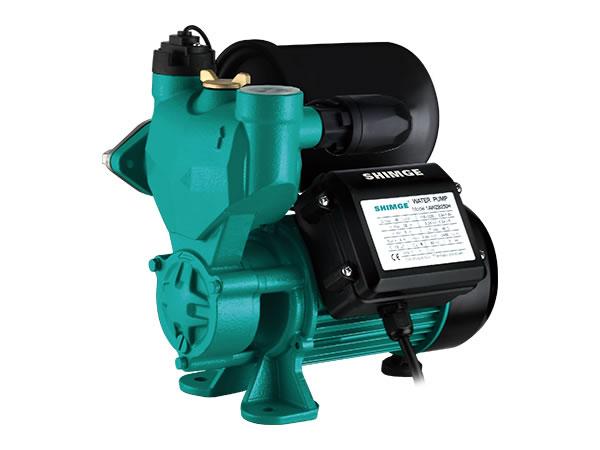

Home » Products » Functions » Surface Pump » AWZB-H1 Automatic Self-Priming Peripheral Pump

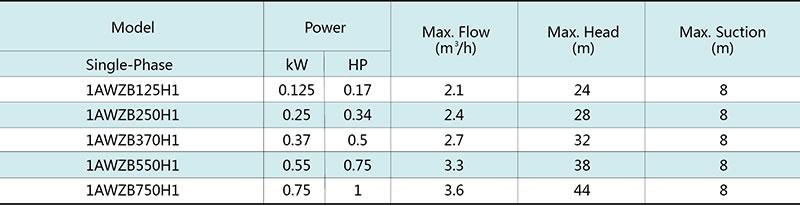

Performance Range

1. Max. Flow: 3.6m³/h
2. Max. Head: 44m

Application Limits

1. Suction head up to 8m
2. Liquid temperature up to +90℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 5bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5

Certificate

Applications Fields

1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in living water supply, tap-water boosting, water tower water supply, well water lifting, solar boosting, hot water pipe boosting, etc.

Features

1. Automatic self-priming pump
2. Bulit-in check valve
3. Stainless steel 304 inserts

Motor

1. Single-Phase 220V/50Hz
2. Mechanical seal: Ceramic / Graphite / EPDM rubber
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B

Optional Available on Request

1. NSK bearing
2. Motor whose insulation class is F

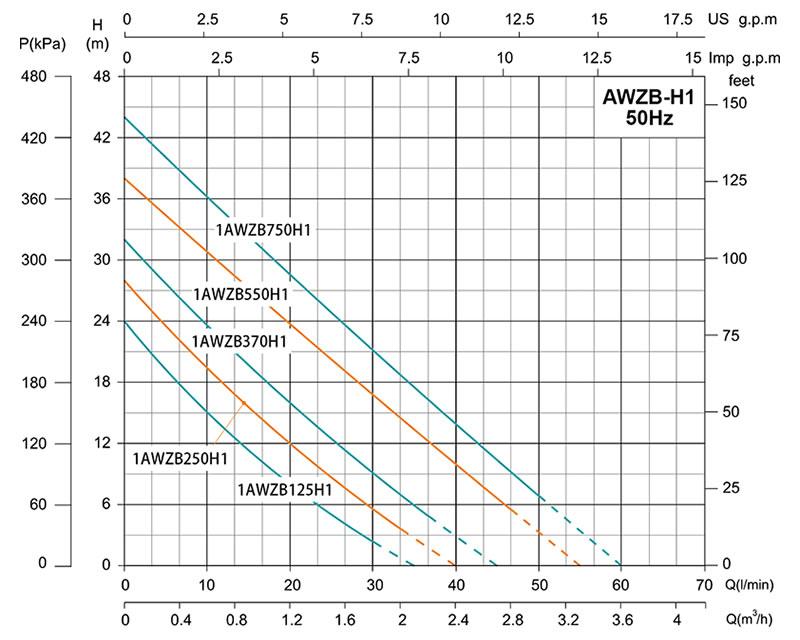

Performance Curve
