This product has been discontinued and removed from our shelves.

Cast iron submersible pumps for clean water are Q(D)X-(T) series, and the pumped medium is clean water without abrasive particles. The major application fields include flowing rain water collection and water pumping from well, river, cellar, garage, basement, etc. Additionally, it is also suitable for water supply and drainage in breeding industry.

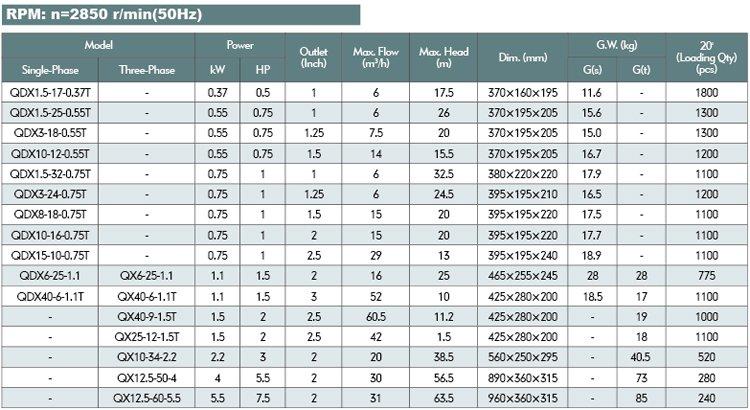

Technical Parameters

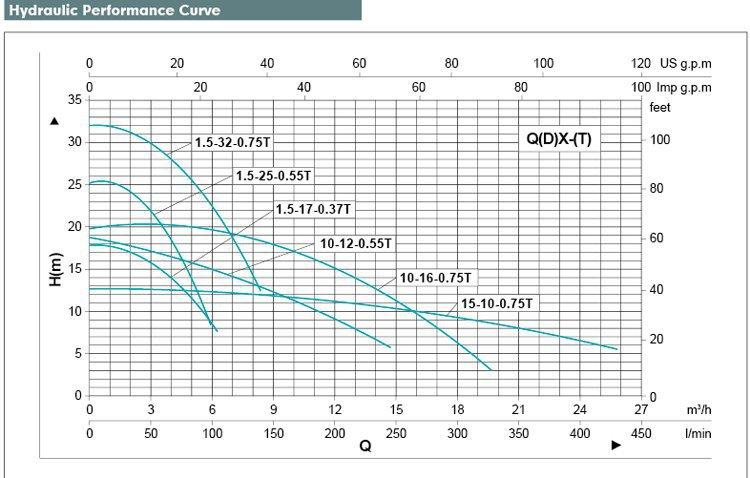

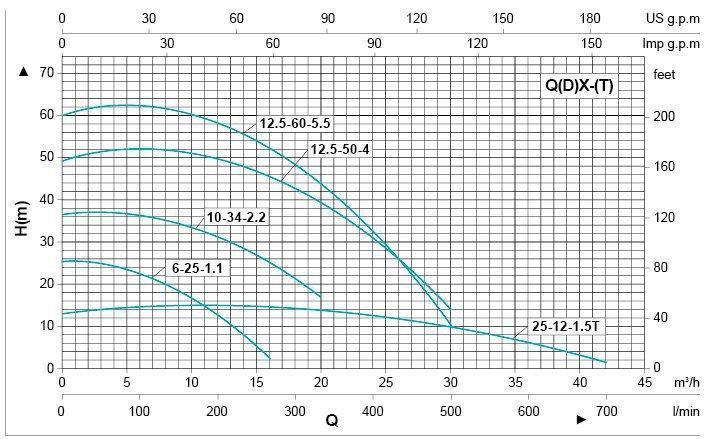

Hydraulic Performance Curve

1. Pump body: Cast iron
2. Motor bracket: Cast iron
3. Impeller: Aluminum or cast iron
4. Motor shaft: CS 45#
5. Mechanical seal: Ceramic-graphite, ceramic-ceramic.
6. Suction strainer: 2Cr13
7. Copper winding.

Working Conditions
1. Max. submersion depth: 5 meters
2. Liquid temperature: Up to +40℃
3. Ambient temperature: Up to +40℃

1. 2-pole induction motor
2. Insulation class: E
3. Protection rating: IP X8
4. Single-phase with capacitor and thermal overload protection.

Model Instruction
QDX 1.5 – 17 - 0.37 T (F)
(F): With float switch
T: Cast iron
0.37: Rated power (kW)
17: Rated head (m)
1.5: Rated flow (m3/h)
QDX: Model code and no "D" means three-phase.

As a China-based cast iron submersible pumps for clean water manufacturer and supplier, SHIMGE also offers variable speed circulation pump, automatic peripheral self priming pump, vertical multistage centrifugal pump, and cast iron submersible sewage pump, among others.
