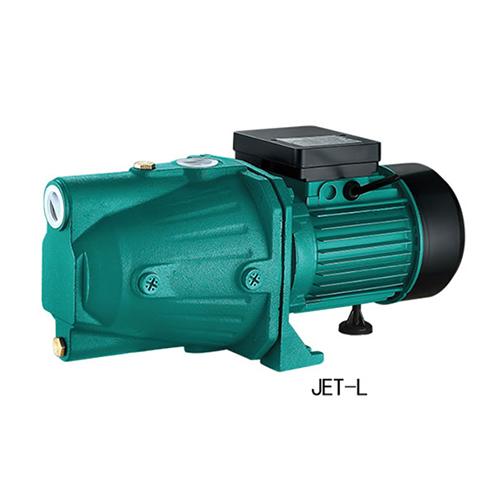

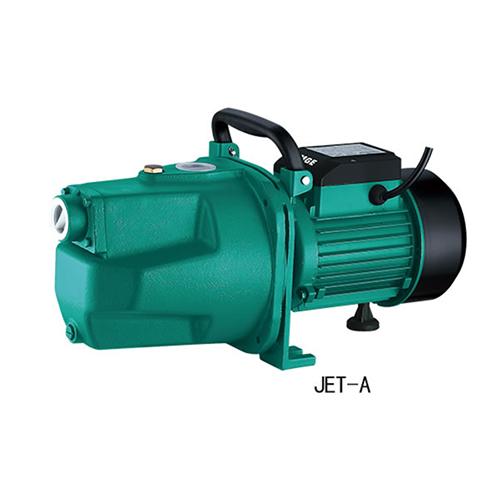

JET Self-Priming Jet Pump

inquiry form
Performance Range

1. Max. Flow: 6m3/h
2. Max. Head: 80m

Application Limits

1. Suction head up to 9m
2. Liquid temperature up to +40℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 5bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5

Certificate

Applications Fields

1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in living water supply, water tower water supply, well water lifting, automatic irrigation system, various corollary equipment, etc.

Features

1. The JET type self-priming pump
2. High suction, with short time
3. Different impeller material configuration

Motor

1. Single-Phase 220V/50Hz
2. Three-Phase 380V/50Hz
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B

Optional Available on Request

1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz

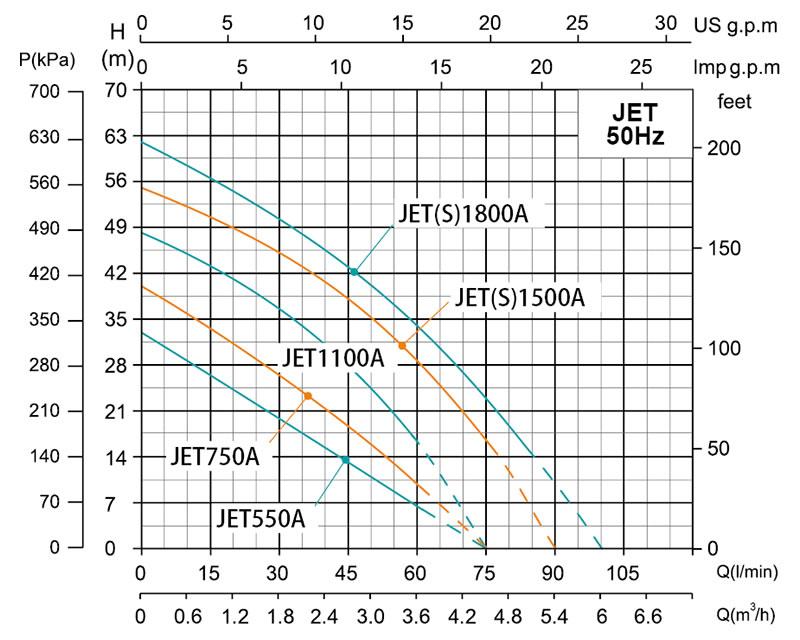

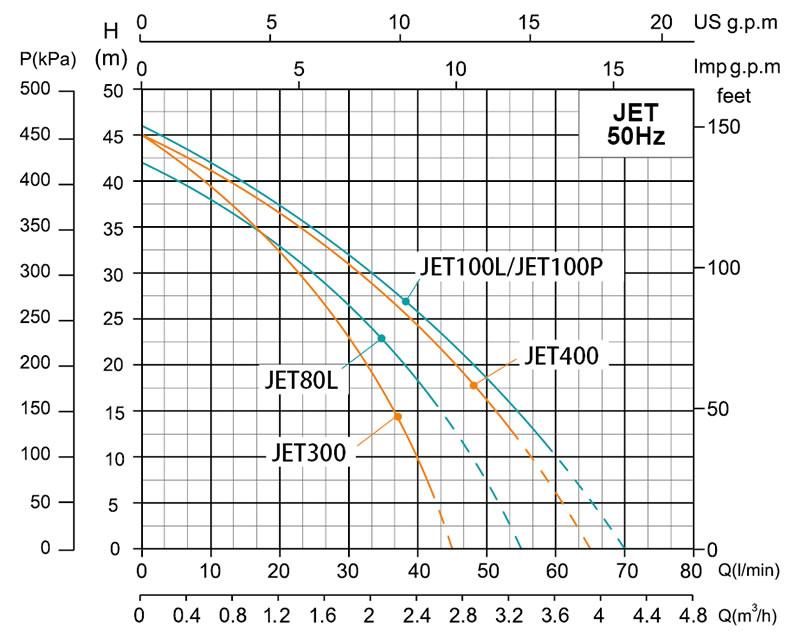

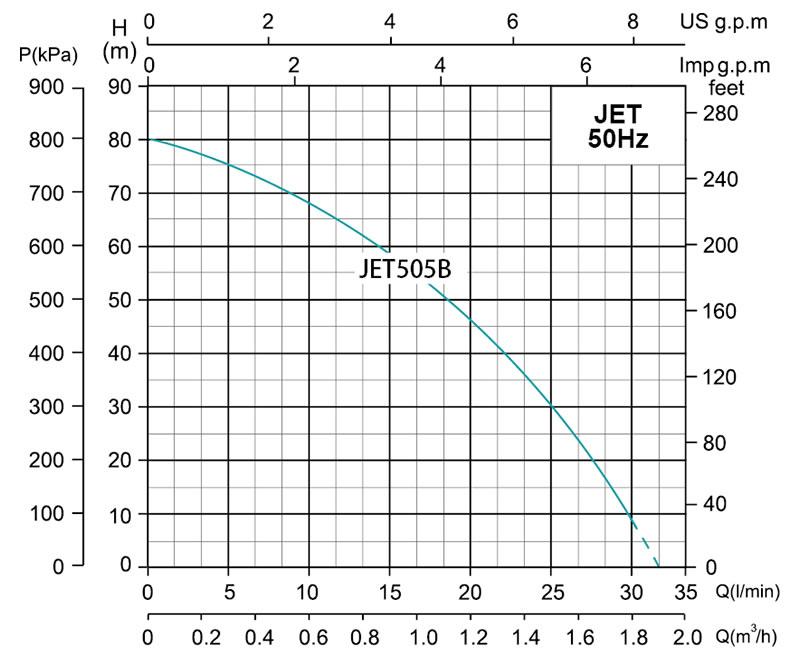

Performance Curve
