This product has been discontinued and removed from our shelves.

Multistage submersible pump for clean water is suitable for clean water without abrasive particles. It is mainly used for flowing rain water collection and pumping water from well, river, cellar, garage, basement, etc. It is also suitable for water supply and drainage in breeding industry.

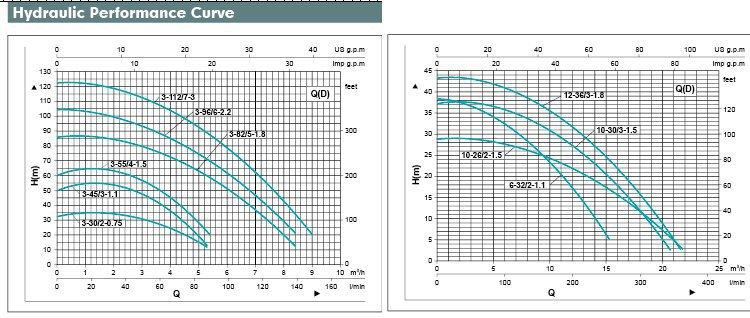

Hydraulic Performance Curve

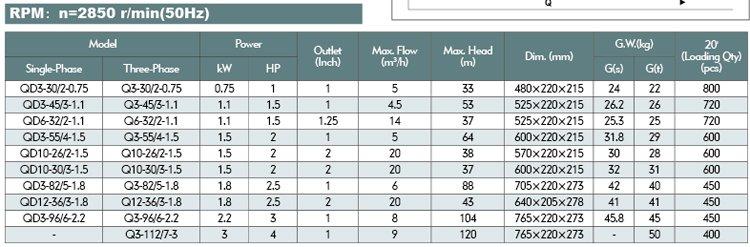

Technical Parameters

1. Pump body: Cast iron
2. Motor bracket: Cast iron
3. Impeller: Aluminum
4. Motor shaft: CS 45#
5. Mechanical seal: Ceramic-graphite, silicon carbide-graphite
6. Suction strainer: Plated iron
7. Copper winding.

Working Conditions
1. Max. submersion depth: 5 meters
2. Liquid temperature: Up to +40℃
3. Ambient temperature: Up to +40℃

1. 2-pole induction motor
2. Dry function motor
3. Insulation class: B
4. Protection rating: IP X8
5. Single-phase with capacitor

Model Instruction
QD 3 - 30 / 2 - 0.75
0.75: Power (kW)
2: Impeller number
30: Rated head (m).
3: Rated flow (m3/h)
QD: Model code, and no "D" for three-phase.

Related Names: Multi Level Submerged Pump | Multi-grade Under Water Pump

SHIMGE is an experienced multistage submersible pumps for clean water manufacturer and supplier in China. In addition to submersible pump, we also offer sewage pump, deep well pump, centrifugal pump, circulation pump, and more.
