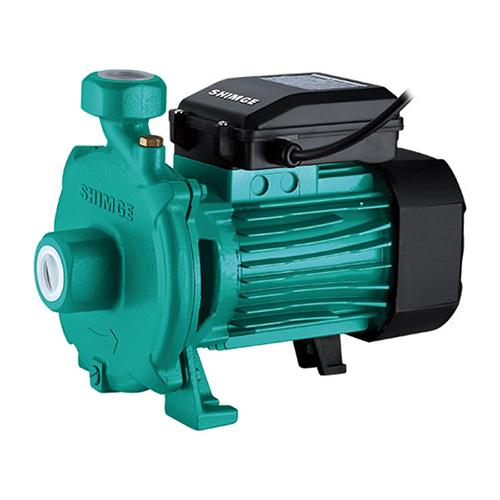

PUM Centrifugal Pump

inquiry form

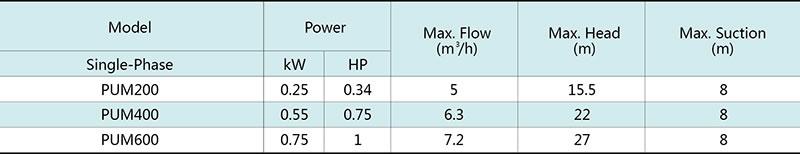

Performance Range

1. Max. Flow: 7.2m3/h
2. Max. Head: 27m

Application Limits

1. Suction head up to 8m
2. Liquid temperature up to +90℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 3bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5

Certificate

Applications Fields

1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in solar boosting, water heater boosting, air energy boosting, various corollary equipment, etc.

Features

1. Stainless steel impeller, shaft 304
2. Specially designed for view of the hot water circulation
3. High quality mechanical seal, NSK bearing, improve the reliability of the product

Motor

1. Single-Phase 220V/50Hz
2. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
3. Protection: IP44
4. Insulation: F

Optional Available on Request

1. NSK bearing
2. Motor whose insulation class is F
3. Other voltage or frequency is 60Hz

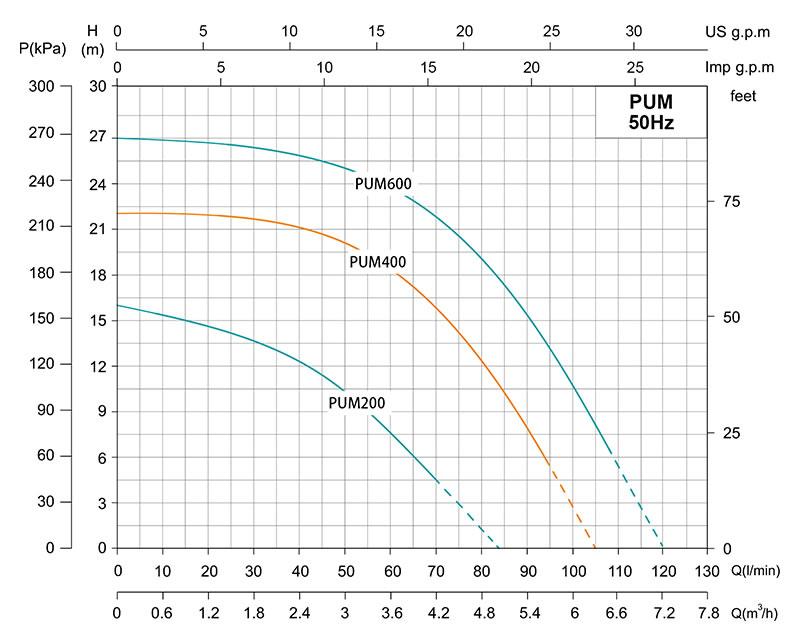

Performance Curve
