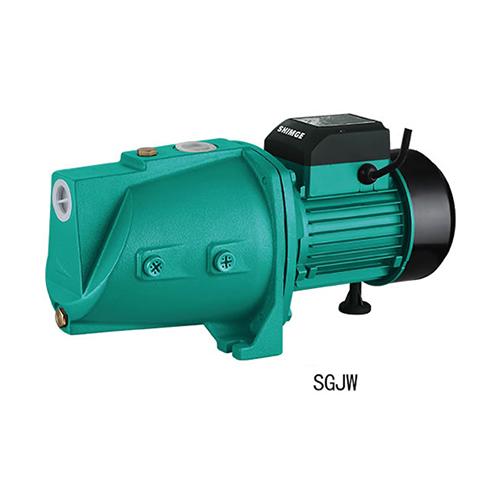

SGJW Self-Priming JET Pump
SGJW Self-Priming JET Pump SGJW Self-Priming JET Pump

SGJW Self-Priming JET Pump

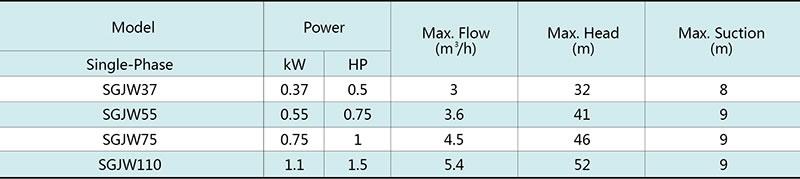

Performance Range

Max. Flow: 5.4m3/h
Max. Head: 52m

Application Limits
  • Suction head up to 9m
  • Liquid temperature up to +40℃
  • Ambient temperature up to +40℃
  • Max. Working pressure: 6bar
  • Voltage fluctuation should not exceed 10% f rated value.
  • pH: 6.5 to 8.5
Certificate
Certificate
Applications Fields
  • Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
  • Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc.
Features
  • Complete models
  • Copper impeller, stainless steel pump cover
  • Pump body with installation foot set
Motor
  • Single-Phase 220V/50Hz
  • Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
  • Protection: IP44
  • Insulation: Class B
Optional Available on Request
  • 304 stainless steel welding shaft
  • Electrophoretic pump body and connections
  • NSK bearing
  • Motor whose insulation class is F
  • Other voltage or frequency is 60Hz

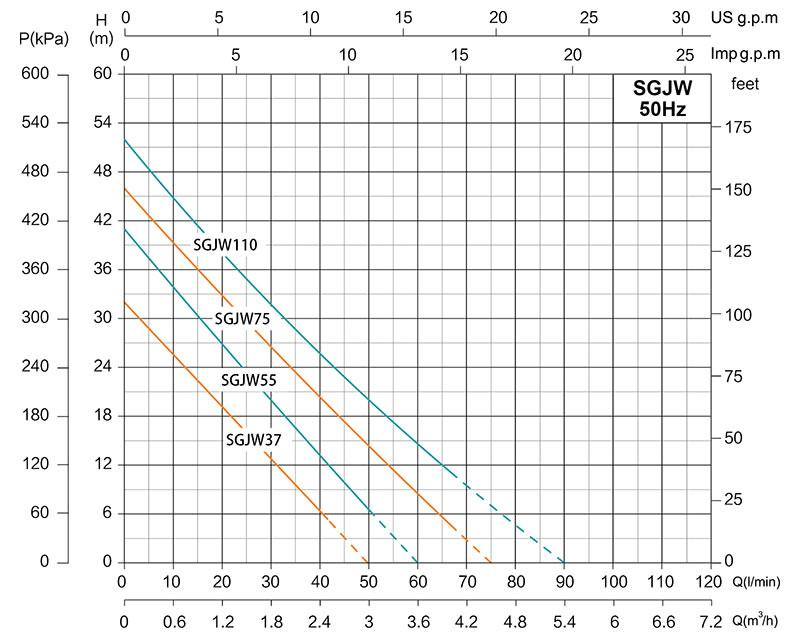

Performance Curve
SGJW Self-Priming JET Pump
SGJW Self-Priming JET Pump
