This product has been discontinued and removed from our shelves.

3SG(m) 3" deep well pump is composed of two parts including submersible pump and single phase oil filled submersible motor, and the oil applied is food grade white machinery oil. The submersion depth reaches up to 70 meters, and the maximum outer diameter is 76mm. The flow and head ranges are 1~5m³/h and 10~150m, respectively, and the outlet diameter is G1~1.5. On the other hand, the capacitor and thermal protector are set externally, and control box is also adopted.

This pump has some excellent components, such as brass outlet, stainless steel casing, stainless steel shaft as well as centrifugal type plastic impeller, and the seat is 3 inches. Depending on these features, our product is suitable for many circumstances in production and daily life, such as sprinkling irrigation for garden and agriculture, water lifting from deep well, pressurized water supply for high place, etc.

Working Conditions
1. The voltage of power supply should be in accordance with the requirement on the nameplate, and the fluctuation range is ±10%. Meanwhile, the frequency should comply with the requirement on the nameplate as well.
2. Submersion depth range: 5~70 meters
3. Sufficient water should be supplied.
4. Pumped medium: Clean water, and the temperature is not over 40℃. The volume content of the solid impurities is not higher than 0.1%, and the granularity of solid particles does not exceed 0.2mm. Meanwhile, the PH value should be within the range of 6.5~8.5.

Motor
Single phase oil filled submersible motor is adopted by our pump, and the voltage is 110V/220V. The frequency is 50/60Hz, while the power range is 0.18~1.1kW.

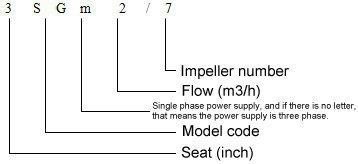

Model Instruction

As an experienced 3" deep well pump manufacturer and supplier in China, SHIMGE provides a comprehensive range of products, including stainless steel submersible sewage pump, vertical multistage centrifugal pump, intelligent frequency converter circulation pump, and more.
