This product has been discontinued and removed from our shelves.

3.5SG(m) 3.5" deep well pump is able to process clean water with sand, and it is widely used for water supply, river pumping, well pumping, farm irrigation, mining and drainage in breeding industry.

Hydraulic Performance Curve

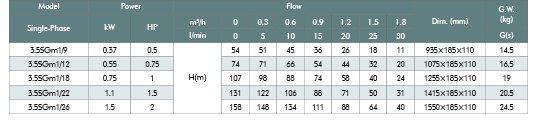

Technical Parameters

1. DN: 1"
2. RPM: n=2850r/min.

1. Pump body: Stainless steel
2. Motor bracket: Stainless steel
3. Pump shaft and motor shaft: Stainless steel
4. Mechanical seal: Graphite-silicon carbide
5. Impeller: POM
6. Coupling and outlet: Brass.

Working Conditions
1. Submersion depth: 70 meters
2. Liquid temperature: Up to +40℃
3. Ambient temperature: Up to +40℃
4. Max. sand content: 150g/m3
5. Min. well diameter: 3.5"

Motor and Pump
1. 2 pole induction motor
2. Single-phase: 50Hz
3. Submersible motor in oil bath
4. Insulation class: B
5. Protection rating: IP X8
6. Outlet diameter: 1"

Model Instruction
3.5 SG m 1 / 9
9: Impeller number
1: Rated flow (m3/h)
m: Single-phase, and no "m" stands for three-phase.
SG: Model code
3.5: Minimum diameter of well (inch).
