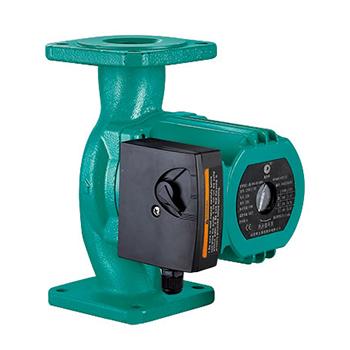

BPS Automatic Exhaust Circulation Pump

inquiry form
Performance Range

1. Max. Flow: 2m3/h
2. Max. Head: 7m

Application Limits

1. Liquid temperature: +2℃~+95℃
2. Maximum ambient temperature: +40℃
3. Maximum system pressure: 10bar
4. Protection level: IP44
5. Mains connection: 220V/50Hz
6. Insulation class: H
7. Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water
8. Installation: the motor shaft must be kept in horizontal direction
9. pH: 6.5 to 8.5

Certificate

Applications Fields

For gas or electric hanging furnace hot water circulation system

Features

1. 3-speed adjustment
2. Low noise
3. No leakage
4. Automatic exhaust

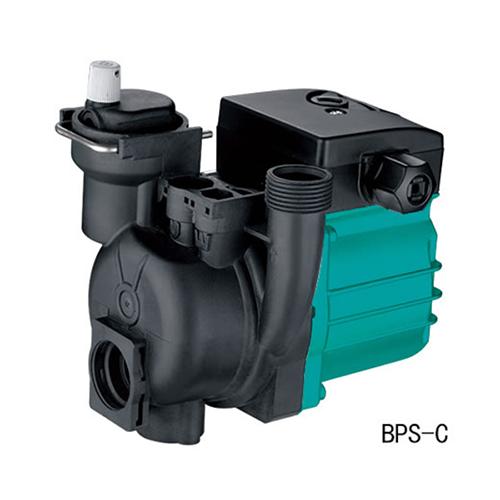

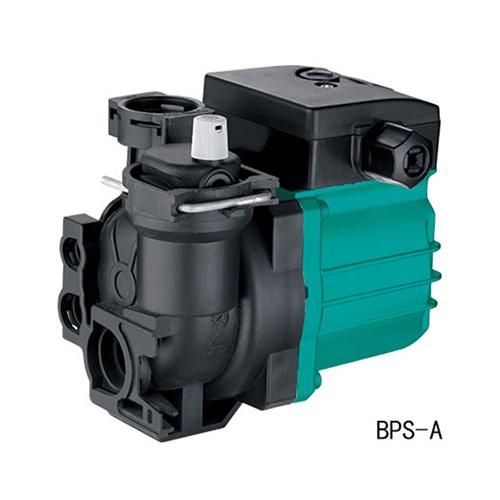

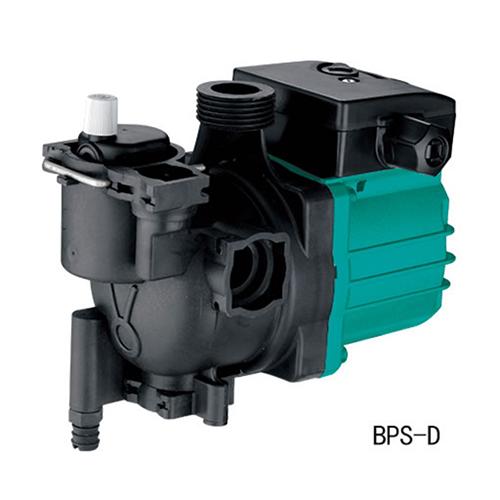

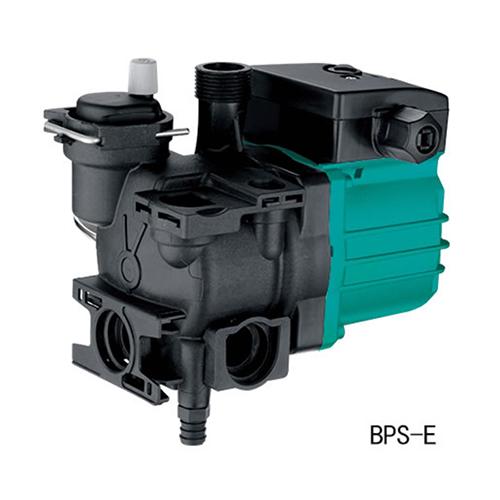

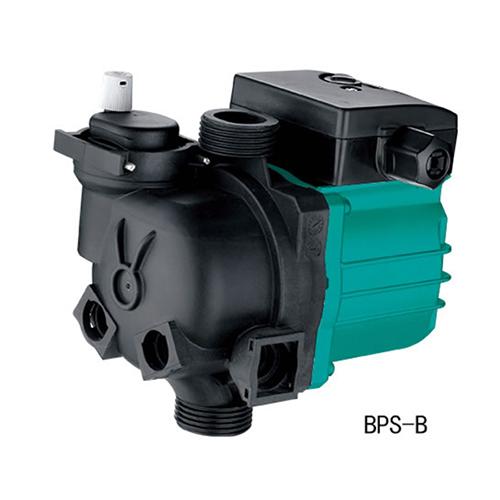

5. Various pump body structures applied to various types of installation

Optional Available on Request

Products can be customized according to customer's voltage and frequency

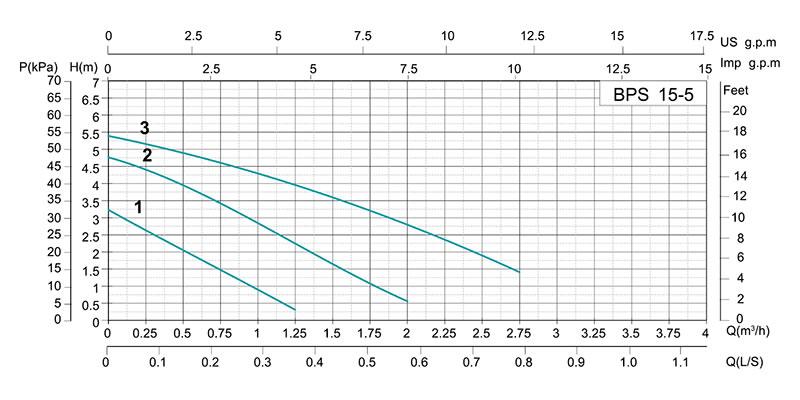

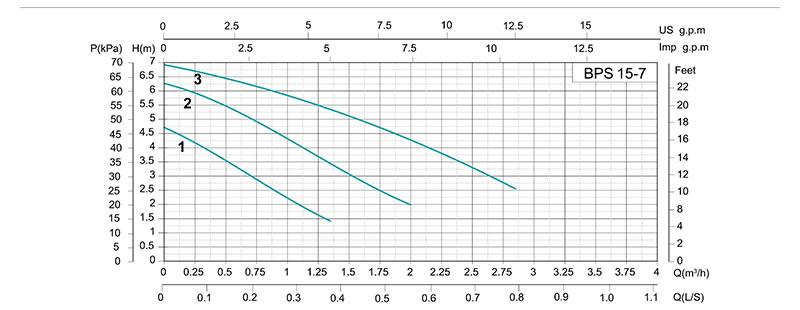

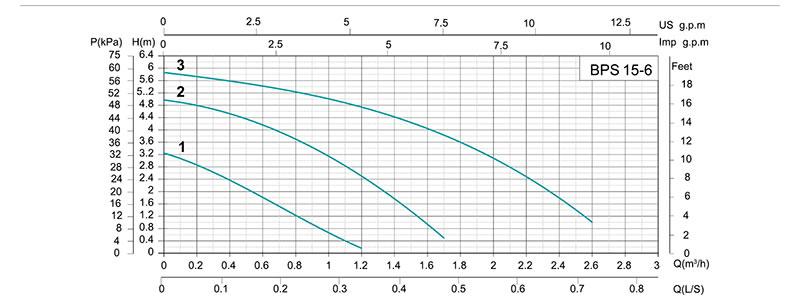

Performance Curve
