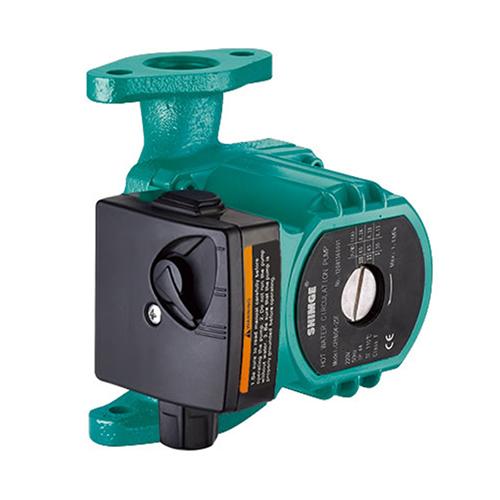

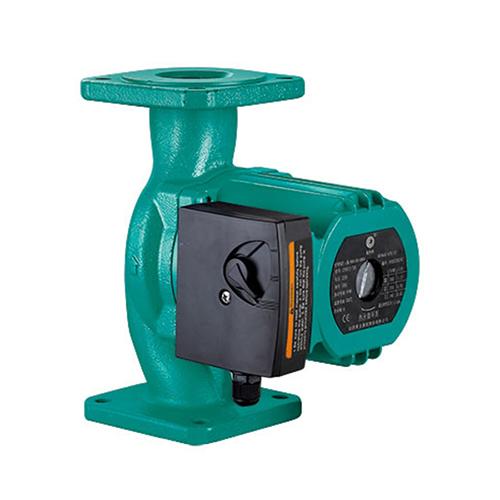

CPHB Hot Water Circulation Pump

Performance Range

Max. Flow: 10m³/h
Max. Head: 8m

Application Limits

Liquid temperature: +2℃~+100℃
Maximum ambient temperature: +40℃
Maximum system pressure: 10bar
Protection level: IP44
Mains connection: 220V/50Hz
Insulation class: H
Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water
Installation: the motor shaft must be kept in horizontal direction
pH: 6.5 to 8.5

Certificate

Applications Fields

For hot water circulation system such as HVAC systems, solar hot water circulation system, boiler heating system, pressurization of domestic tap water, industry water circulation system, etc.

Features

Flange connection
Low noise
No leakage

Optional Available on Request

Products can be customized according to customer's voltage and frequency
Brass pump body, enamel pump body, stainless steel pump body

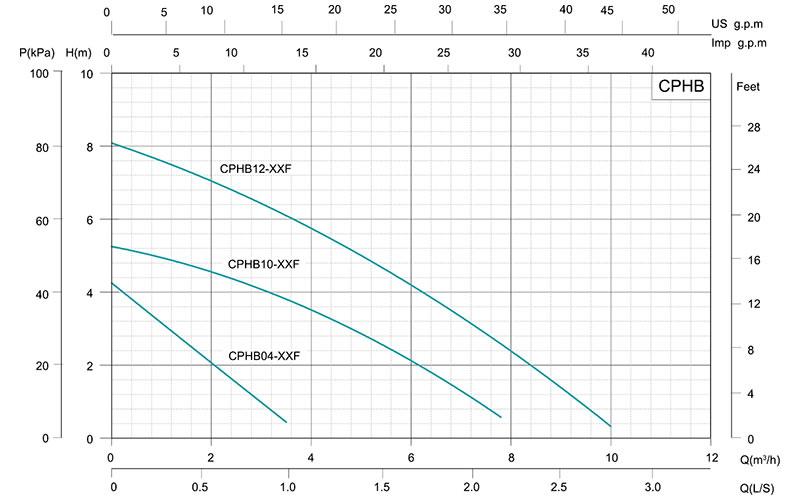

Performance Curve
