This product has been discontinued and removed from our shelves.

6SG 6" deep well pump is designed for different water-relevant conditions in production and daily life, such as water lifting from deep well, pressurized water supply for high place, sprinkling irrigation for garden and agriculture, etc. It is composed of two parts which are submersible pump and three phase oil filled submersible motor. The motor is in accordance with NEMA standard, and the oil used is food grade white machinery oil. In addition, the maximum outer diameter is 145mm, and the seat is 3 inches.

Our product has medium-high flow and high head, and the flow and head ranges are 10~60m³/h and 25~320m, respectively. Cable sealing technology is used to ensure the excellent insulation and sealing properties of electrical connectors, and this machine is able to work under high flow rate without abrasion due to the application of thrust bearing. On the other hand, this pump has light weight, and it takes stainless steel to manufacture casing and shaft, cast iron is used to produce water outlet as well as structural parts, and the impeller and overflowing parts are made of plastics. In addition, the outlet diameter is G3.

Working Conditions
1. Submersion depth range: 5~70 meters
2. Sufficient water should be supplied.
3. The voltage and frequency of power supply should meet the requirements on the nameplate, and the voltage fluctuation range is ±10%.
4. Pumped medium: Clean water. Its temperature should be lower than 40℃, and the PH value should be within the range of 6.5~8.5. The volume content of the solid impurities is not higher than 0.1%, and the granularity of solid particles does not exceed 0.2mm.

Motor
Our pump uses three phase oil filled submersible motor, and the power range is 4~18.5kW. The voltage is 380~415V, and the frequency is 50Hz.

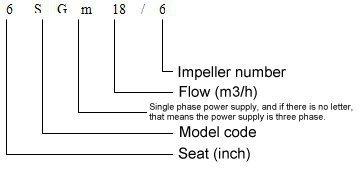

Model Instruction

As a professional 6" deep well pump manufacturer and supplier in China, our company also provides self-priming peripheral pump, submersible sewage pump, automatic exhaust circulator pump, peripheral turbine anti-blocking submersible pumps for 4" wells, and much more.
