This product has been discontinued and removed from our shelves.

QJD deep well pump is composed of submersible pump and single phase dry type submersible motor. The maximum outer diameter is 102mm, and the flow and head ranges are 2~4m3/h and 20~120m, respectively. The outlet diameter is G1.5, and the seat is 4 inches. Meanwhile, capacitor and thermal protector are built-in.

The casing is made of stainless steel, and the impeller is plastic. Cast iron is used to manufacture outlet and connecting parts. This pump is suitable for water relevant conditions in production and family life, for example, lifting water from deep well, pressurized water supply for high-rise building, sprinkling irrigation for garden and agriculture, etc.



Technical Parameters
No. Model Rated
Flow
(m3/h)		 Max.
Flow
(m3/h)		 Rated
Head
(m)		 Max.
Head(m)		 Rated
Power
(kW)		 Rated
Current
(A)		 Synchronous
Speed
(r/min)		 Rated
Voltage		 Inner
Diameter
of Pipe
(mm)		 Head
Application
Range (m)		 Overall
Dimensions
(mm)
1 QJD2/7-0.5 2 5.5 40 45 0.5 4.0 3000 220 25 15-43 98×715
2 QJD4/6-0.37 4 23 43 0.37 3.2 38 15-35 98×672
3 QJD4/8-0.55 31 57 0.55 4.4 20-46 98×758
4 QJD4/10-0.75 38 71 0.75 5.6 25-58 98×850
5 QJD4/14-1.1 54 100 1.1 8.0 35-81 98×1058
6 QJD4/6-0.37C 23 43 0.37 3.3 15-35 98×661
7 QJD4/8-0.55C 31 57 0.55 4.6 20-46 98×747
8 QJD4/10-0.75C 38 71 0.75 6 25-58 98×849
9 QJD4/14-1.1C 54 100 1.1 8.4 35-81 98×1052
10 QJD4/18-1.5C 69 129 1.5 10.9 45-104 98×1273
11 QJD6/7-0.55C 6 7.5 22 45 0.55 4.6 11-39 98×760
12 QJD6/9-0.75C 28 57 0.75 6 14-51 98×875
13 QJD6/12-1.1C 37 77 1.1 8.4 19-68 98×1064
14 QJD6/16-1.5C 50 102 1.5 10.9 25-90 98×1311
15 QJD8/7-0.75C 8 10 21 43 0.75 6 51 12-34 98×795
16 QJD8/9-1.1C 27 55 1.1 8.4 15-43 98×910
17 QJD8/12-1.5C 36 74 1.5 10.9 20-58 98×1151
18 QJD10/6-0.75C 10 12 21 37 0.75 6 51 13-29 98×786
19 QJD10/8-1.1C 28 49 1.1 8.4 17-38 98×910
20 QJD10/10-1.5C 35 62 1.5 10.9 21-48 98×1122

Working Conditions
1. Water should be enough.
2. The maximum submersion depth is 15 meters.
3. The voltage and frequency of power supply should be in accordance with the requirements on the nameplate, and the voltage fluctuation range is ±10%.
4. Pumped medium: Clean water. Its temperature is not over 40℃, and the PH value is within 6.5~8.5. Meanwhile, the volume content of the solid impurities is not higher than 0.1%, and the granularity of solid particles does not exceed 0.2mm.

Motor
This pump uses dry type submersible motor. The single phase voltage is 110V/220V, the frequency is 50/60Hz, and the power range is 0.37~1.5kW.

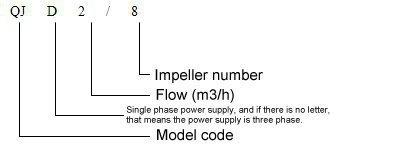

Model Instruction
