This product has been discontinued and removed from our shelves.

SGJW self priming jet pump is provided by us, and it is applicable for water lifting, household application, irrigation for garden and farmland, water distribution with small or medium pressure sets, etc. This product should be installed in enclosed place, and if there is a problem doing so, it should be protected against severe weather at least. The lift height is quite high, and clean water without abrasive particles is applicable.

Hydraulic Performance Curve

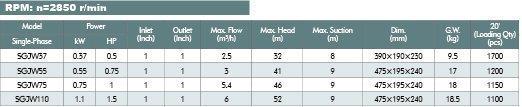

Technical Parameters

1. Pump body: Cast iron
2. Motor bracket: Aluminum
3. Impeller: Brass
4. Shaft with rotor: Stainless steel or CS45#
5. Mechanical seal: Ceramic-graphite or silicon carbide-graphite
6. Copper winding

Working Conditions
1. Suction height: Up to 9 meters
2. Liquid temperature: Up to 40℃
3. Ambient temperature: Up to 40℃
4. Max. working pressure: 6 bar

1. 2-pole induction motor: 50Hz
2. Protection rating: IP44
3. Insulation class: B
4. With capacitor and thermal overload protection

Our company is an experienced self priming jet pump manufacturer and supplier in China. Our products include centrifugal pump, intelligent frequency converter circulation pump, submersible screw pump, automatic self-priming peripheral pump, and more.
