AWZB-K automatic peripheral self priming pump consists of four parts, motor, water pump, sealing part and control system. The motor is asynchronous type, and the impeller has peripheral structure.

The control system is used to achieve the automatic running according to the water pressure, and the start and stop of our machine is controlled by the valve. The electronic pressure switch applied is adjustable and visible which means that the start and stop pressures can be adjusted depending on the actual working pressure. In this way, the automatic working is realized, and there is no need to cut off electricity. In addition, our pump has a pressure gauge which facilitates the adjustment.

Hydraulic Performance Curve

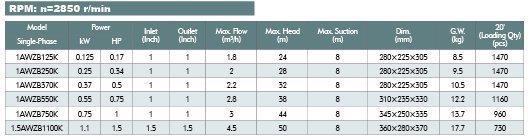

Technical Parameters
Model Max.
Flow
(m3/h)		 Max.
Head
(m)		 Rated
Flow
(m3/h)		 Rated
Head
(m)		 Rated
Power
(kW)		 Rated
Voltage
(V)		 Rated
Motor
Speed
(r/min)		 Max.
Suction
Height
(m)		 NPSHr
(m)		 Pipe
Diameter
(mm)		 Performance
Curve
Number		 Note
1AWZB125A/
H1/K/K1/AK		 1.8 24 0.8 12 0.125 220 2850 8 3.5 25 1 Built-in
thermal
protector
1AWZB250A/
H1/K/K1/AK		 2 28 1 14 0.25 3.5 25 2
1AWZB370A/
H1/K/K1/AK		 2.2 32 1.2 16 0.37 3.5 25 3
1AWZB550A/
H1/K/K1/AK		 2.8 38 1.5 18 0.55 3.8 25 4
1AWZB750A/
H1/K/K1/AK		 3 44 1.8 22 0.75 3.8 25 5
1.5AWZB1100A/
H1/K/K1/AK		 4.5 50 2.5 25 1.1 3.8 40 6

This self-priming pump is able to supply water at stable pressure, and it also features small size, light weight, compact structure, easy installation, low power, small flow, high head, ensured safety, high efficiency, energy conservancy, etc. Based on these excellent properties, our product is perfect for family use, and it is also suitable for water lifting from well, irrigation for garden and vegetable greenhouse, water supply and drainage in breeding industry, pressurizing for pipeline, water tower and tap water, etc. In addition, this machine should be installed in enclosed place, or be sheltered from harsh weather at least.

Materials
1. Pump body: Cast iron
2. Motor bracket: Aluminum
3. Impeller: Brass
4. Shaft with rotor: Stainless steel or CS 45#
5. Mechanical seal: Silicon carbide-graphite
6. Copper winding

Working Conditions
1. Long-term application pressure: ≤6 bar
2. Liquid temperature range: 0℃~90℃
3. Ambient temperature: ≤40℃
4. Voltage fluctuation range: ≤10% of rated voltage
5. Suction height: ≤8 meters
6. Pumped medium requirement: Clear water and non-aggressive liquid without sand and other solid impurities. The PH value should be within 6.5~8.5, the volume content of solid impurities is less than 0.1%, and the granularity is below 0.2mm.

Motor
1. 2-pole induction motor
2. Protection rating: IP44
3. Insulation class: B
4. Single phase motor: 50Hz
5. Single phase motor with built-in capacitor and thermal overload protection

Model Instruction
1AWZB370K
1: Nominal diameter of inlet
A: Automatic
WZB: Peripheral self priming pump
370: Power (W)
K: Equipped with pressure switch

We are an experienced automatic peripheral self priming pump manufacturer in China. We provide various types of products such as horizontal multistage centrifugal pump, multi-stage deep well submersible pump, automatic exhaust circulator pump, and 4" deep well pump.
