This product has been discontinued and removed from our shelves.

WSD(T) stainless steel submersible sewage pump is used to pump and drain dirty water with suspended solid, and the solid can be as large as 50mm. This product is also suitable for emptying cesspit, processing industrial and sanitary waste water, etc.

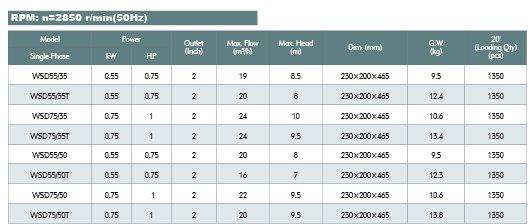

Technical Parameters

Hydraulic Performance Curve

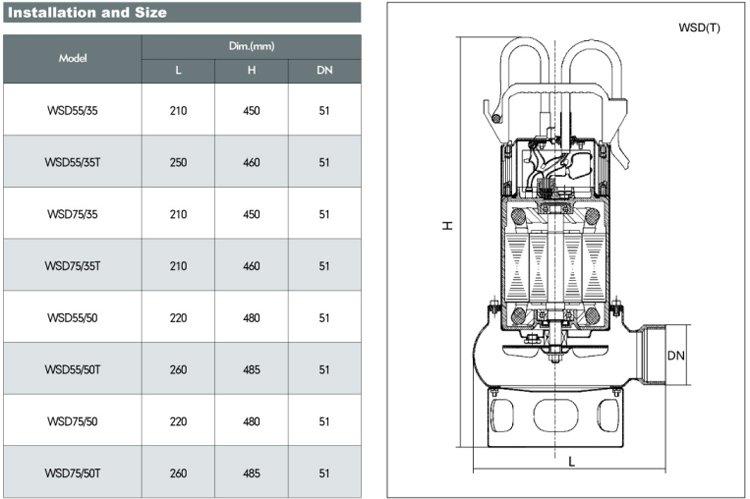

Installation and Size

1. Pump body: Stainless steel (AISI304) or cast iron
2. Motor bracket: Stainless steel (AISI304)
3. Impeller: Stainless steel (AISI304)
4. Motor shaft: Stainless steel with CS45#
5. Mechanical seal: Ceramic-graphite
6. Copper winding

Working Conditions
1. Max. submersion depth: 5 meters
2. Liquid temperature: Up to +40℃
3. Ambient temperature: Up to +40℃
4. Max. working pressure: 6 bar
5. Allowed suspended solid size: Up to 50mm

1. 2-pole induction motor
2. Insulation class: E
3. Protection rating: IP X8
4. Single phase motor with capacitor and thermal protector

Model Instruction
WSD 55 / 35 (T)
(T): Pump body material. T for cast iron and no T for stainless steel
35: Max. flow particle size (mm)
55: 1/10 of the rated output power (W)
WSD: Model code, and D for single-phase
