This product has been discontinued and removed from our shelves.

WVS(D)(A2)(F) stainless steel submersible sewage pump features outstanding reliability, especially when it works under automatic operating condition in fixed installation. Our product is widely used to drain water from cesspool as well as sewage system, and it is also applicable for flooded places, such as cellar, car washing station, underground car park, etc.

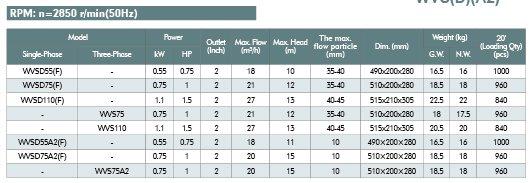

Technical Parameters

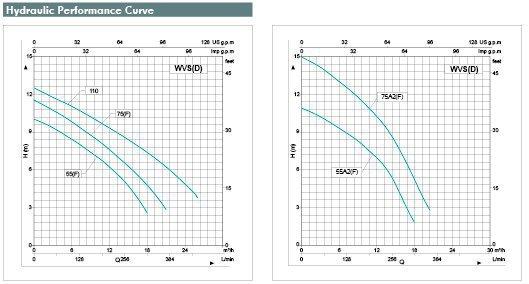

Hydraulic Performance Curve

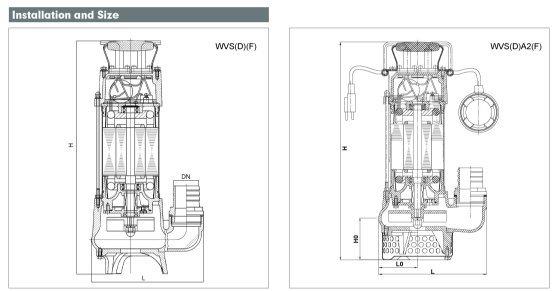

Installation and Size

1. Pump body: Cast iron
2. Motor bracket: Stainless steel
3. Impeller: Cast iron
4. Motor shaft: SS316 with CS45#
5. Mechanical seal: Ceramic-graphite, silicon carbide-carbide alloy
6. Copper winding

Working Conditions
1. Submersion depth: 5 meters
2. Liquid temperature: Up to +40℃
3. Ambient temperature: Up to +40℃
4. Max. working pressure: 6 bar
5. Allowed suspended solid size: Up to 45mm

1. 2-pole induction motor
2. Single/three phase: 50Hz
2. Insulation class: B
3. Protection rating: IP68
4. Single phase motor has capacitor and thermal overload protector, and three phase motor is equipped with thermal overload protector

Model Instruction
WVS(D) 55
55: 1/10 of the rated power (W)
WVS(D): Model code, and no D means three-phase.

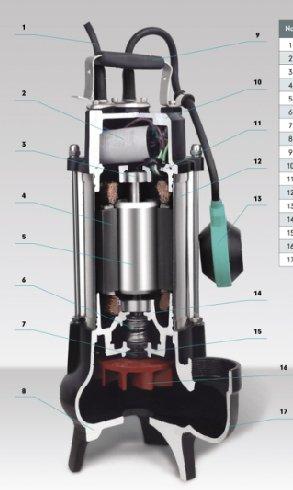

Structural Sketch

1. Cable
2. Capacitor
3. Deep groove ball bearing
4. Stator winding
5. Rotor
6. Mechanical seal
7. Framework oil seal
8. Bottom case
9. Handle
10. Top cover
11. Upper bearing block
12. Motor bracket
13. Float switch
14. Oil chamber
15. Oil chamber cover
16. Impeller

As an experienced stainless steel submersible sewage pump manufacturer and supplier in China, SHIMGE offers a comprehensive range of products that includes self-priming peripheral pump, submersible screw pump, deep well pump, centrifugal pump and more.
