This product has been discontinued and removed from our shelves.

WQ(D)AS-CB cast iron submersible sewage pump has a single-channel impeller, and it is suitable for domestic, commercial as well as industrial applications. For example, it can process industrial waste water in factory, and it can also drain sewage from hotel, garage, sprinkler system, building basement, etc.

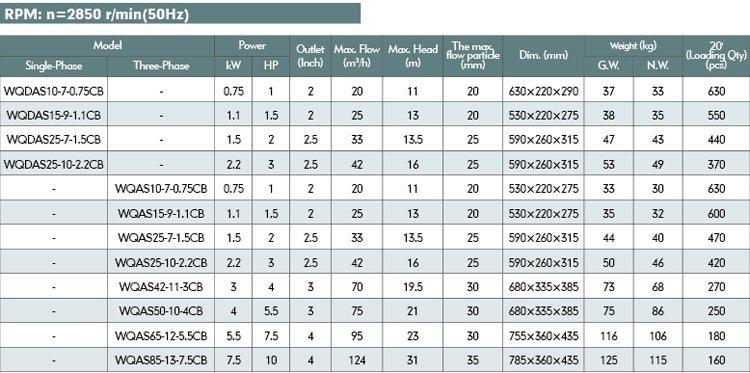

Technical Parameters

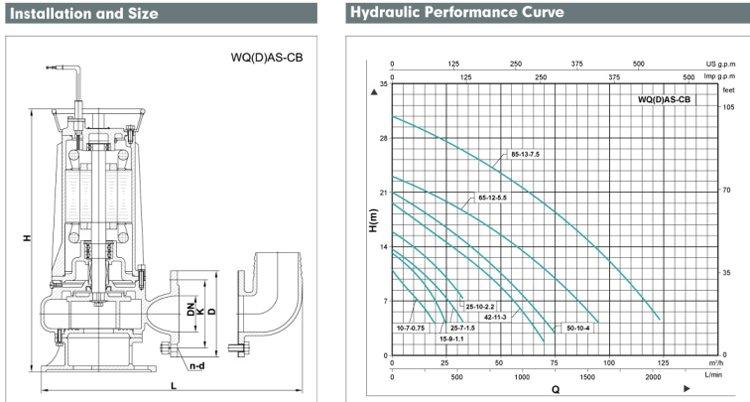

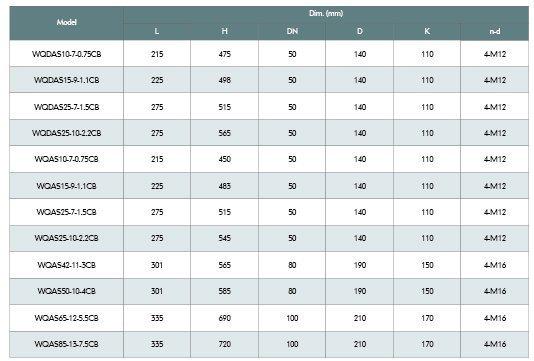

Installation, Size and Hydraulic Performance Curve

1. Pump body: Cast iron
2. Motor bracket: Cast iron
3. Impeller: Cast iron
4. Motor shaft: SS316 with CS45#
5. Mechanical seal: Ceramic-graphite, silicon carbide-carbide alloy
6. Copper winding

Working Conditions
1. Submersion depth: 5 meters
2. Liquid temperature: Up to +40℃
3. Ambient temperature: Up to +40℃
4. Max. working pressure: 6 bar
5. Allowed suspended solid size: Up to 35mm

1. 2-pole induction motor
2. Single/three-phase: 50Hz
3. Insulation class: E
4. Protection rating: IP X8
5. Single-phase with capacitor and thermal overload protection

Model Instruction
WQ(D)AS 10 - 7 - 0.75 CB
CB: Cutting impeller
0.75: Rated power (kW)
7: Rated head (m)
10: Rated flow (m3/h)
WQ(D)AS: Model code, and no D for three-phase.

SHIMGE is a specialized cast iron submersible sewage pump manufacturer in China. Our company provides a broad range of products, including submersible sewage pump, peripheral water pump, non-adjustable speed circulator pump, multi-stage deep well submersible pump, among others.
