This product has been discontinued and removed from our shelves.

WQK cast iron submersible sewage pump is well designed, and the outstanding performance is ensured. It has a single-channel or double-channel impeller, and it is suitable for domestic, commercial as well as industrial applications. For example, our product can drain dirty water from hotel, garage, sprinkler system and building basement, and it is also suitable for industrial waste water in factory.

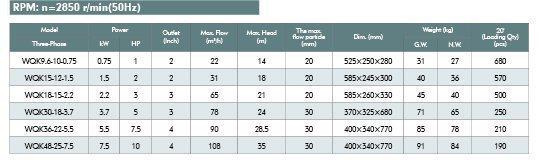

Technical Parameters

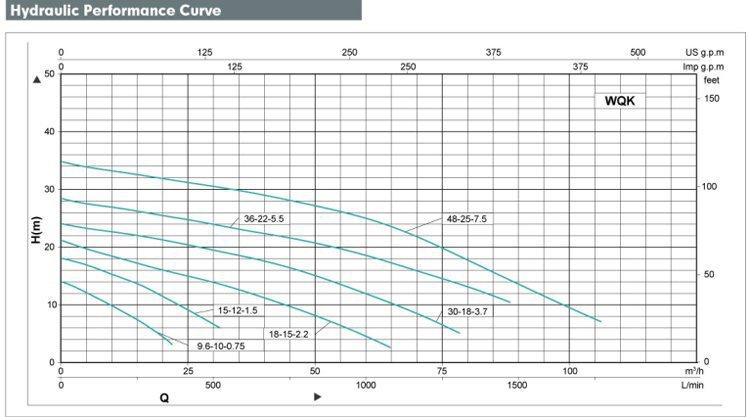

Hydraulic Performance Curve

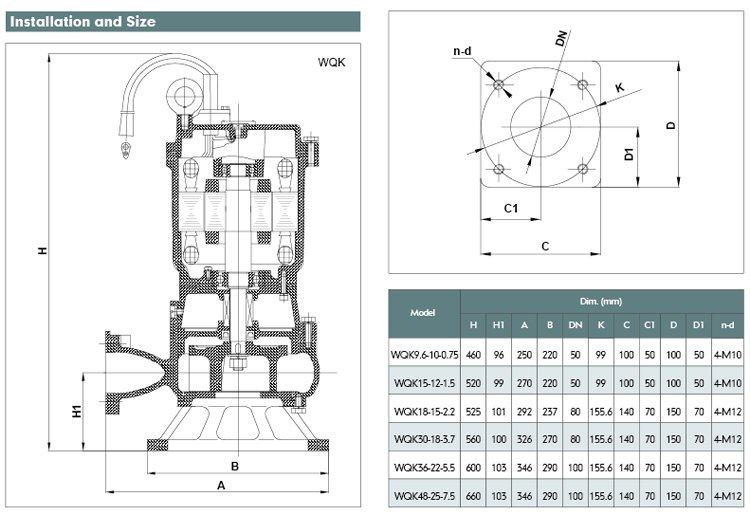

Installation and Size

1. Pump body: Cast iron
2. Motor bracket: Cast iron
3. Impeller: Cast iron
4. Motor shaft: SS420 or CS45#
5. Mechanical seal: Ceramic-graphite, silicon carbide-carbide alloy
6. Copper winding

Working Conditions
1. Submersion depth: 5 meters
2. Liquid temperature: Up to +40℃
3. Ambient temperature: Up to +40℃
4. Max. working pressure: 6 bar
5. Allowed suspended solid: Up to 30mm

1. 2-pole induction motor
2. Three-phase: 50Hz
3. Insulation class: E
4. Protection rating: IP X8

Model Instruction
WQK 9.6 - 10 - 0.75
0.75: Rated power (kW)
10: Rated head (m)
9.6: Rated flow (m3/h)
K: Cutting impeller
WQ: Model code.

As a professional cast iron submersible sewage pump manufacturer and supplier in China, we also provide self-priming peripheral pump, self priming jet pump, submersible screw pump, and automatic exhaust circulator pump, among others.
