This product has been discontinued and removed from our shelves.

WVS stainless steel submersible sewage pump is a unique product supplied by us. It shows excellent reliability which can be obviously seen if it works under automatic operation condition in fixed installation. Our product can be used to drain flooded area such as cellar, car washing shop as well as underground car park, and it is also suitable for handling sewage and emptying cesspool.

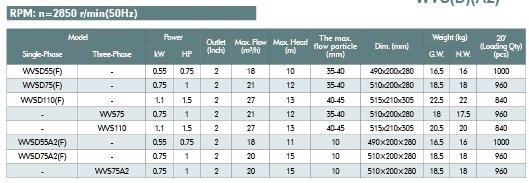

Technical Parameters

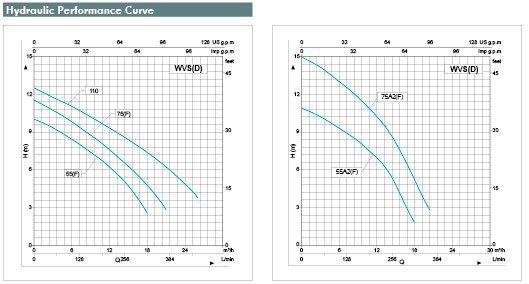

Hydraulic Performance Curve

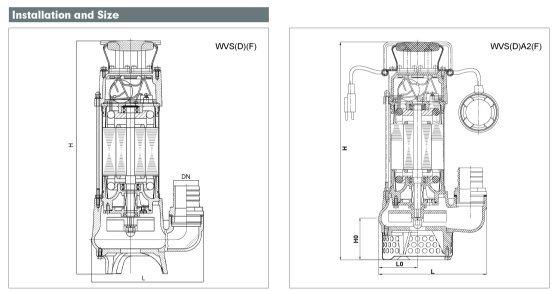

Installation and Size

1. Pump body: Cast iron
2. Motor bracket: Stainless steel
3. Impeller: Cast iron
4. Motor shaft: SS316 with CS45#
5. Mechanical seal: Ceramic-graphite, silicon carbide-carbide alloy
6. Copper winding

Working Conditions
1. Submersion depth: 5 meters
2. Liquid temperature: Up to +40℃
3. Ambient temperature: Up to +40℃
4. Max. working pressure: 6 bar
5. Allowed suspended solid size: Up to 45mm

1. 2-pole induction motor
2. Single/three phase: 50Hz
3. Insulation class: B
4. Protection rating: IP68
5. Single phase motor has capacitor and thermal overload protector, and three phase motor is equipped with thermal overload protector

Model Instruction
WVS(D) 55
55: 1/10 of the rated power (W)
WVS(D): Model code, and no D means three-phase.

As a professional stainless steel submersible sewage pump manufacturer and supplier in China, we also offer peripheral water pump, electronic adjustable speed circulation pump, 4" deep well pump, self priming jet pump, and more.

Related Names: Rustless Steel under Water Sump Pump | Rustless Steel Submerged Sludge Tank Pumping Machinery
