Vertical Multi-Stage Centrifugal Pump

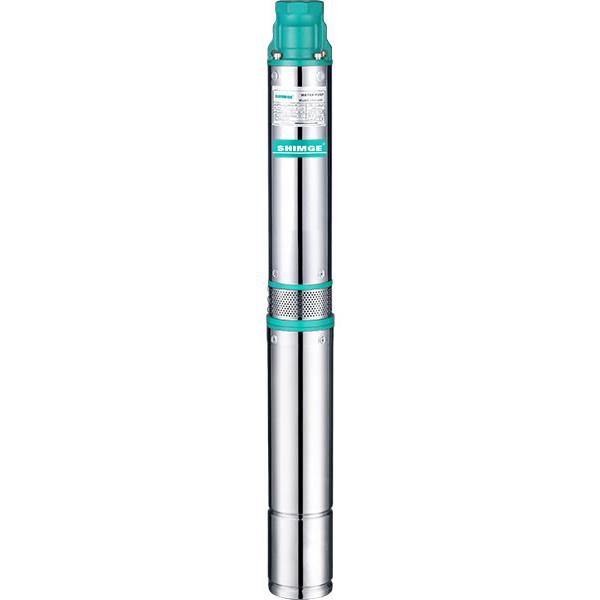

3SE(m) 3" Deep Well Pump

Performance Range

Max. Flow: 3.6m3/h
Max. Head: 142m

Application Limits
  • Max. ambient temperature < 40℃;
  • Sand content (in mass fraction) up to 0.01%;
  • Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
  • pH 6.5 to 8.5;
  • Maximum: 70m below the static water table.
Certificate
Certificate
Application Fields
  • Building/construction work/Domestic water supply;
  • Irrigation and Small water work;
  • Landscaping;
  • Water conservancy system;
  • Factory.
Features
  • Edible oil filled motor, stable & reliable running with pressure regulating membrane;
  • Single phase motor with built in B Grade oil proofed capacitor & thermal mode protector;
  • Available with pump casing with plug, single stage floating impellers;
  • Installation in 3" or larger boreholes.
Optional available on request

Discharge chamber, Inlet parts are available with Brass or Stainless steel 304.

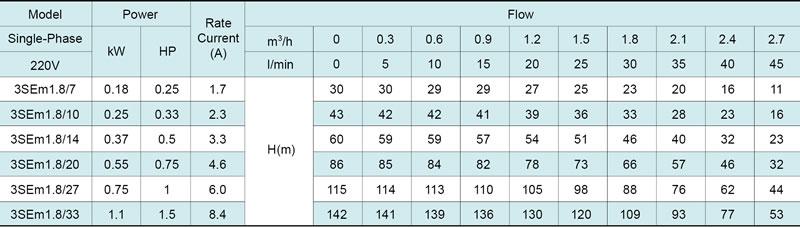

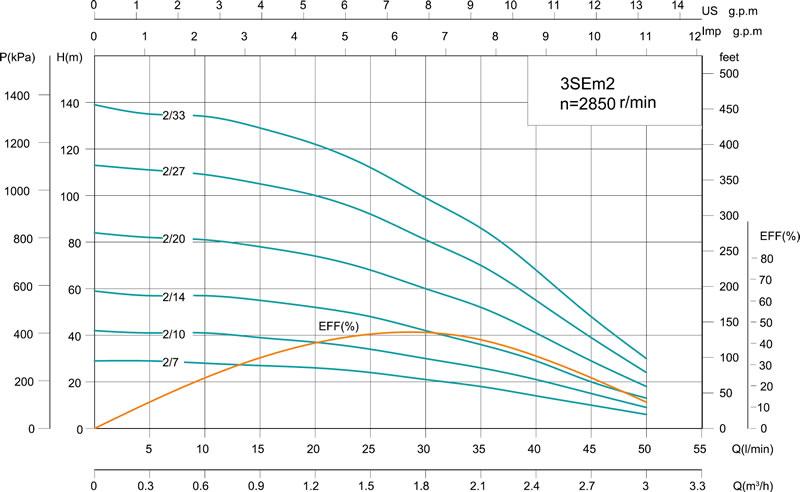

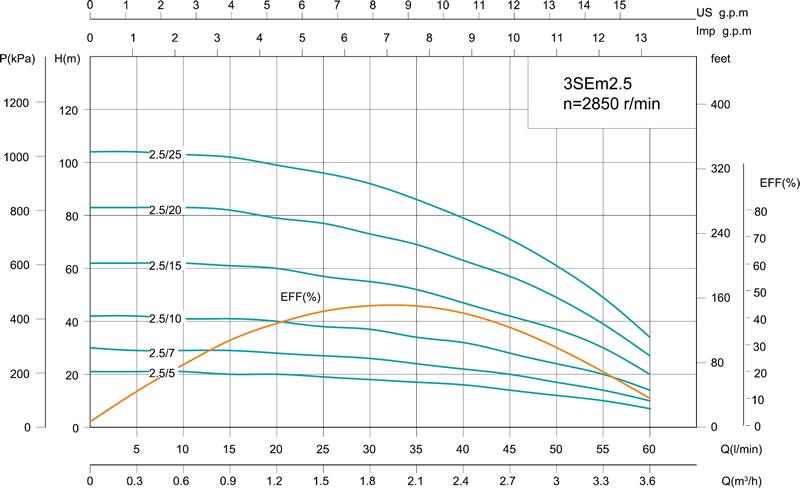

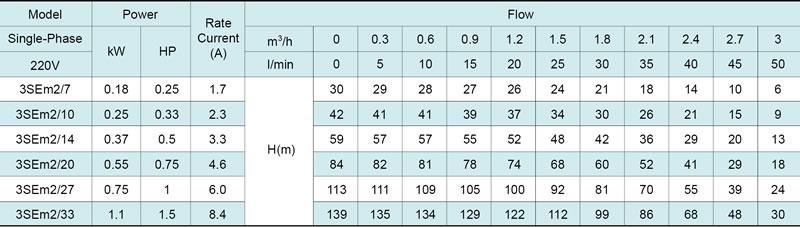

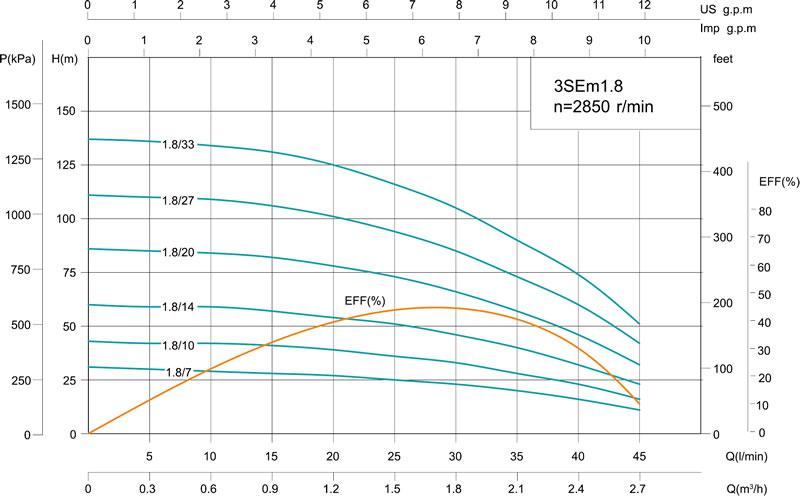

Performance Curve
3SE(m) 3' Deep Well Pump
3SE(m) 3' Deep Well Pump
3SE(m) 3' Deep Well Pump
3SE(m) 3' Deep Well Pump
3SE(m) 3' Deep Well Pump
3SE(m) 3' Deep Well Pump
