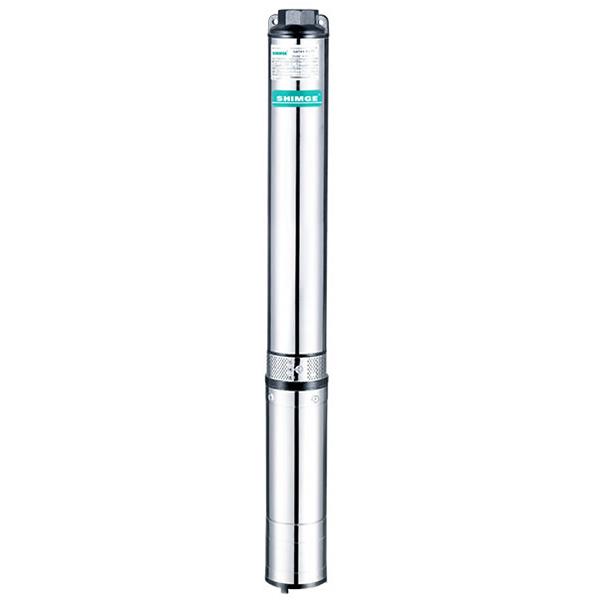

QJD 4' Deep Well Pump

QJD 4" Deep Well Pump

Performance Range

Max. Flow: 4.8m3/h
Max. Head: 119m

Application Limits
  • Max. ambient temperature< 40℃;
  • Sand content (in mass fraction) up to 0.01%;
  • Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
  • pH 6.5 to 8.5;
  • Maximum: 20m below the static water table.
Certificate
Certificate
Application Fields
  • Building/construction work/domestic water supply;
  • Irrigation and small water work;
  • Landscaping;
  • Water conservancy system;
  • Factory.
Features
  • Treble seal shield for excellent sand prevention;
  • High efficiency and lower power consumption;
  • Single phase motor with built in capacitor & thermal mode protector;
  • Pump sleeve with screw thread, single stage floating impellers;
  • Installation in 4" or larger boreholes;
Optional Available On Request

No

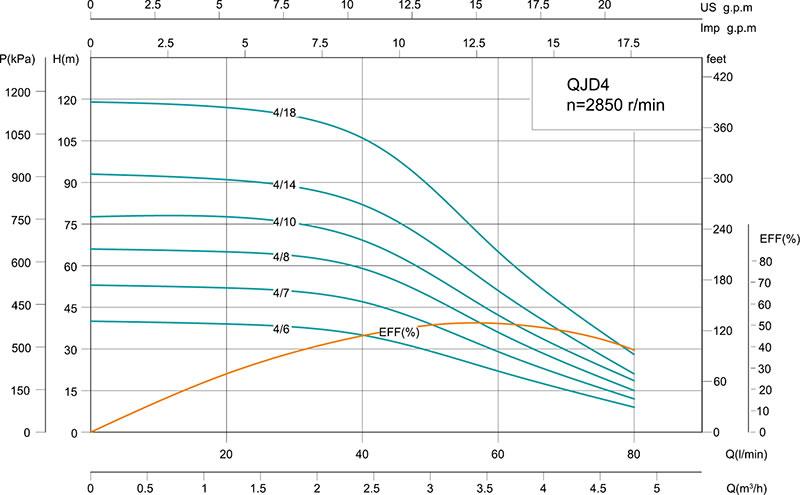

Performance Curve
QJD 4' Deep Well Pump
QJD 4' Deep Well Pump
