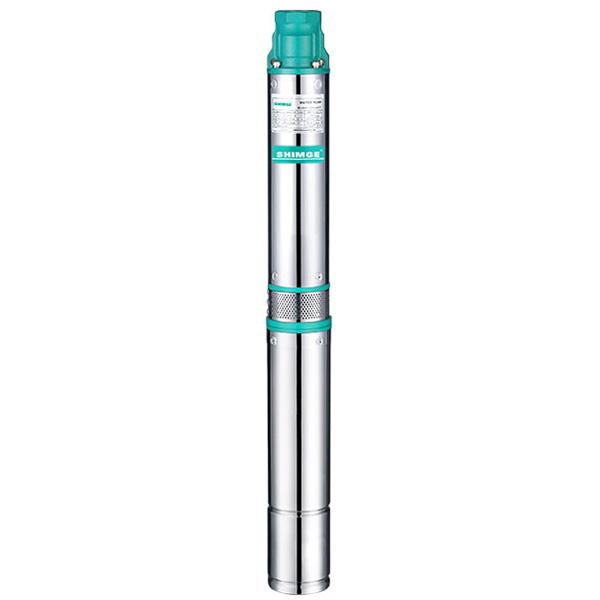

3.5SE(m) 3.5' Deep Well Pump

3.5SE(m) 3.5" Deep Well Pump

Performance Range

Max. Flow: 7.2m3/h
Max. Head: 169m

Application Limits
  • Max. ambient temperature < 40℃;
  • Sand content (in mass fraction) up to 0.01%;
  • Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
  • pH 6.5 to 8.5;
  • Maximum: 70m below the static water table.
Certificate
Certificate
Application Fields
  • Building/construction work/domestic water supply;
  • Irrigation and small water work;
  • Landscaping;
  • Water conservancy system;
  • Factory.
Features
  • Edible oil filled motor, stable & reliable running with pressure regulating membrane;
  • Single phase motor with built in B Grade oil proofed capacitor &thermal mode protector;
  • Available with cable with a motor plug, disassemble conveniently;
  • Available with pump casing with plug, integrated stage floating impellers;
  • Installation in 3.5" or larger boreholes;
Optional Available On Request

NO

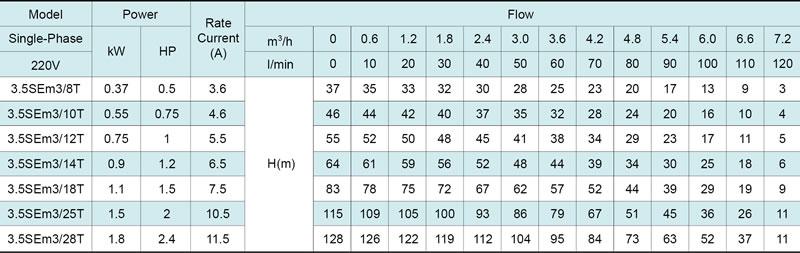

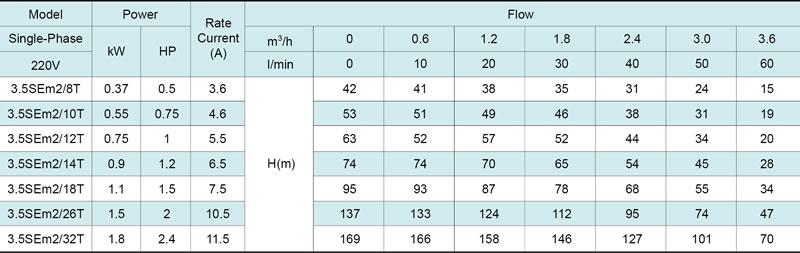

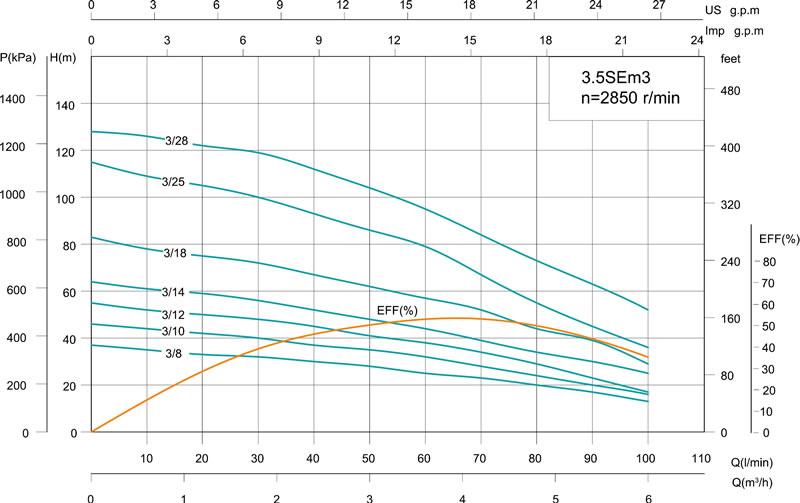

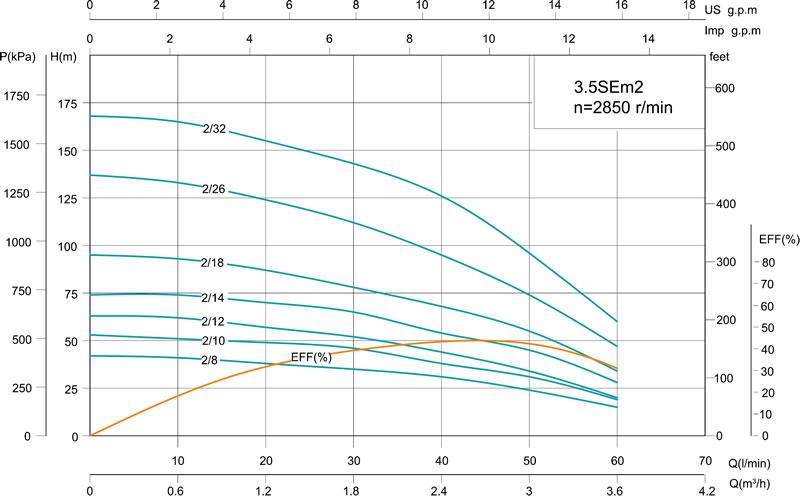

Performance Curve
3.5SE(m) 3.5' Deep Well Pump
3.5SE(m) 3.5' Deep Well Pump
3.5SE(m) 3.5' Deep Well Pump
3.5SE(m) 3.5' Deep Well Pump
