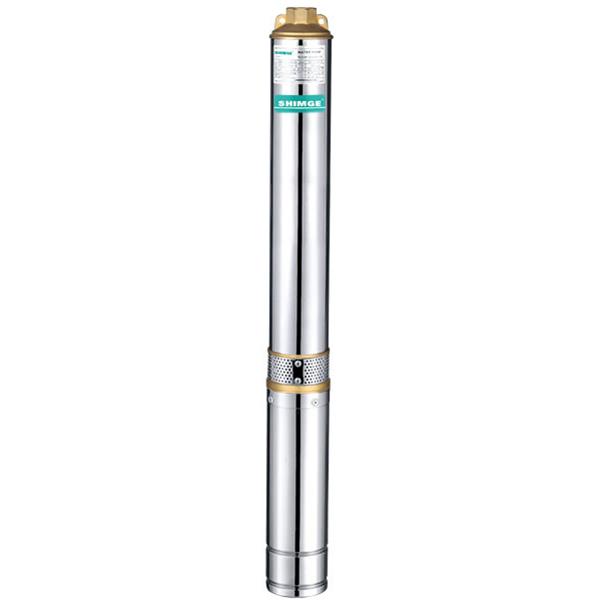

3.5SG(m) 3.5’’ Deep Well Pump

Performance Range

Max. Flow: 6.0m3/h
Max. Head: 186m

Application Limits

1. Max. ambient temperature < 40℃;
2. Sand content(in mass fraction)up to 0.01%;
3. hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
4. pH 6.5 to 8.5;
5. Maximum: 70m below the static water table.

Certificate

Application Fields

1. Building/construction work/domestic water supply;
2. Irrigation and small water work;
3. Landscaping;
4. Water conservancy system;
5. Factory.

Features

1. Edible oil filled motor, stable& reliable running with pressure regulating membrane;
2. Motor equipped with start box which is built in capacitor & current mode thermal protector, convenient for replacement;
3. Pump sleeve with screw thread, single stage floating impellers;
4. Installation in 3.5" or larger boreholes;

Optional Available On Request

No

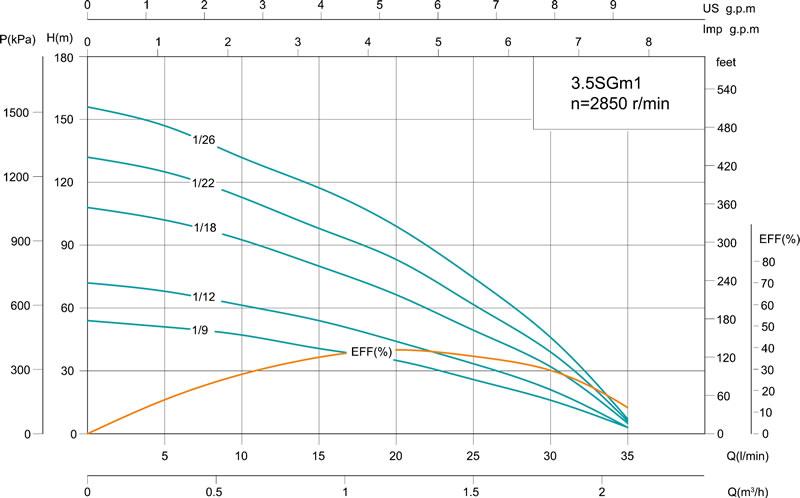

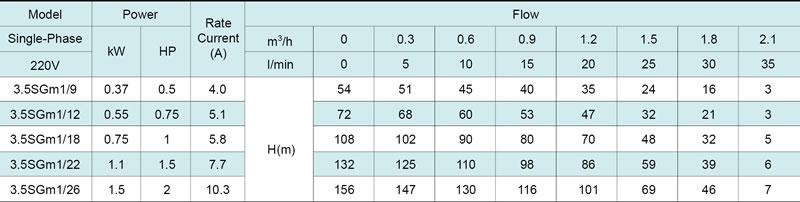

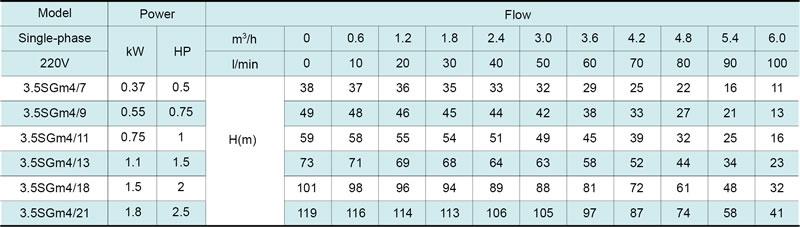

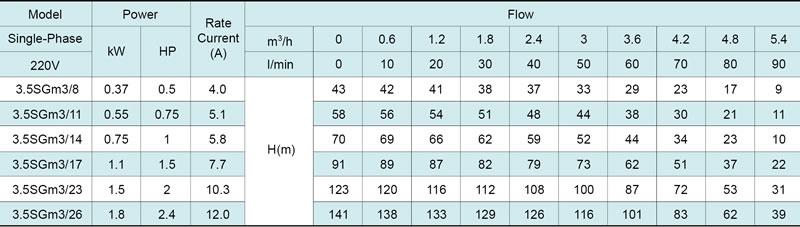

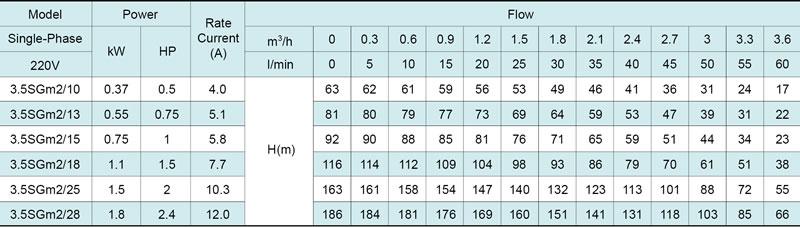

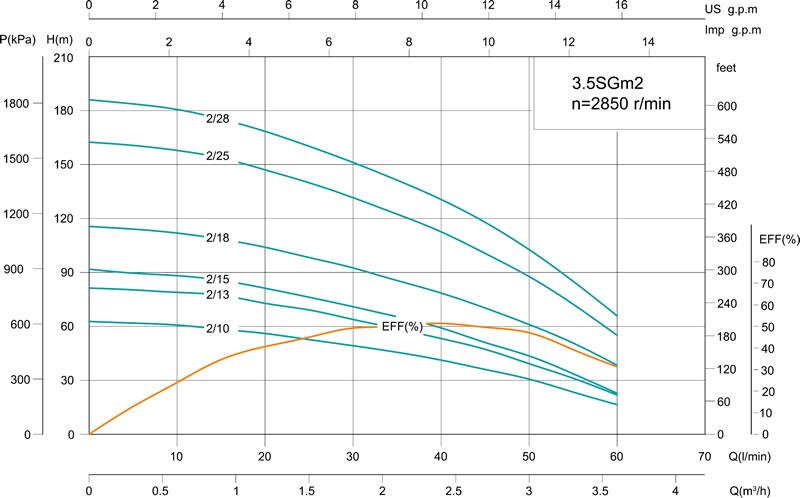

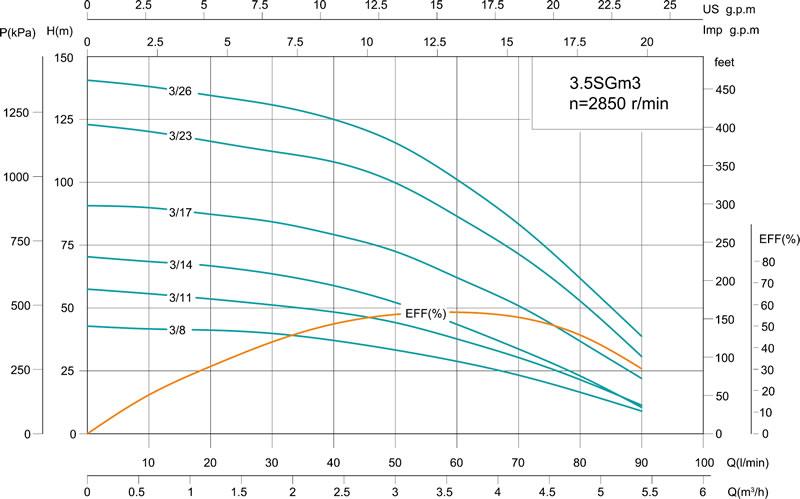

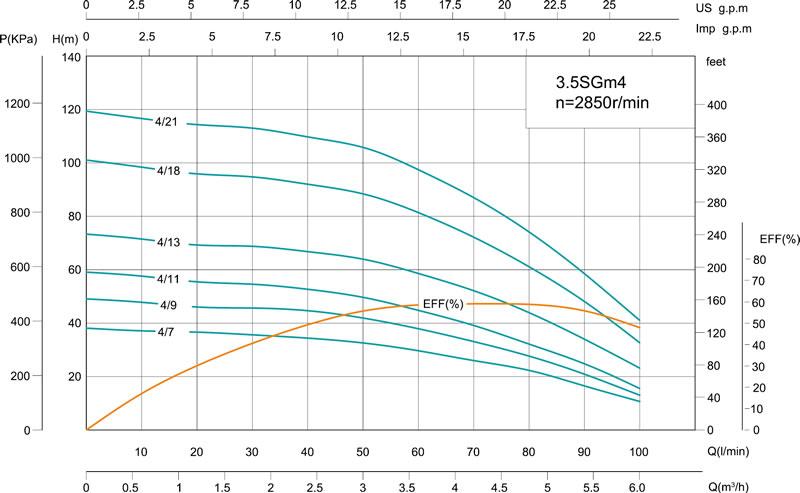

Performance Curve
