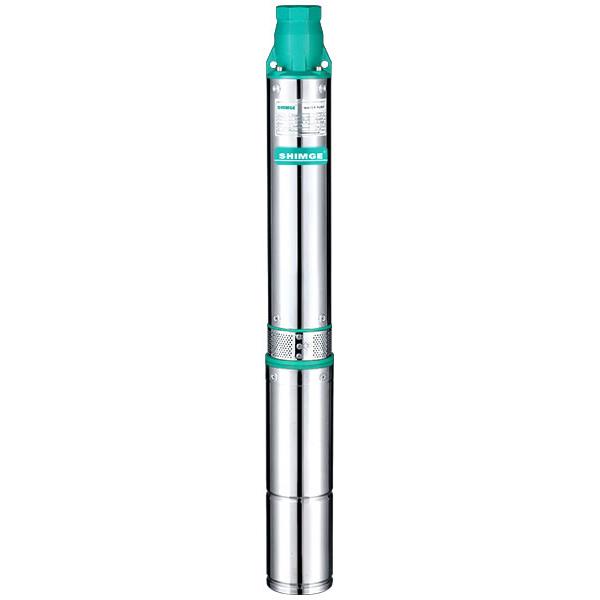

4SE(m) 4' Deep Well Pump

4SE(m) 4" Deep Well Pump

Performance Range

Max. Flow: 22m3/h
Max. Head: 480m

Application Limits
  • Max. ambient temperature < 40℃;
  • Sand content(in mass fraction)up to 0.01%;
  • hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
  • pH 6.5 to 8.5;
  • Maximum: 70m below the static water table.
Certificate
Certificate
Application Fields
  • Building/construction work/domestic water supply;
  • Irrigation and small water work;
  • Landscaping;
  • Water conservancy system;
  • Factory.
Features
  • Edible oil filled motor, stable& reliable running with pressure regulating membrane;
  • Single phase motor with built in B Grade oil proofed capacitor &thermal mode protector;
  • Available with cable with a motor plug, disassemble conveniently;
  • Available with pump casing with plug, 2~8 m3/hrs series with single stage floating impellers, 10~16m3/hrs series with integrated stage floating impellers;
  • Installation in 4" or larger boreholes;
Optional Available On Request

Oil chamber is available with brass or SS304; Discharge chamber, Inlet parts are available SS304.

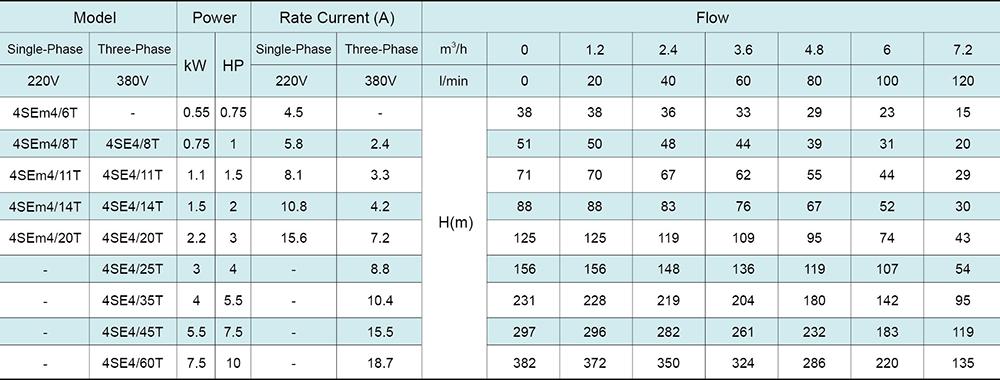

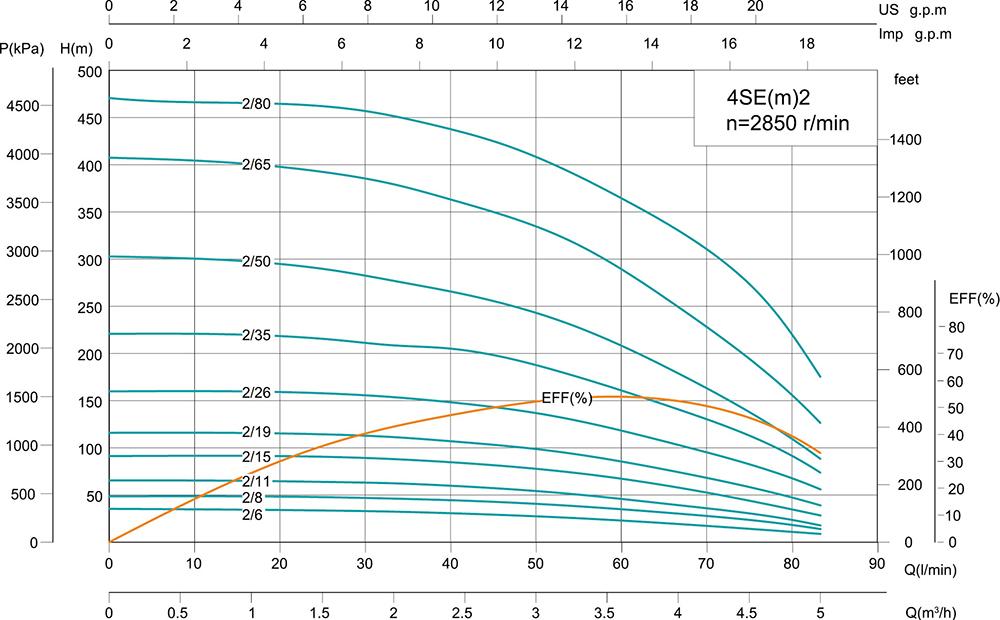

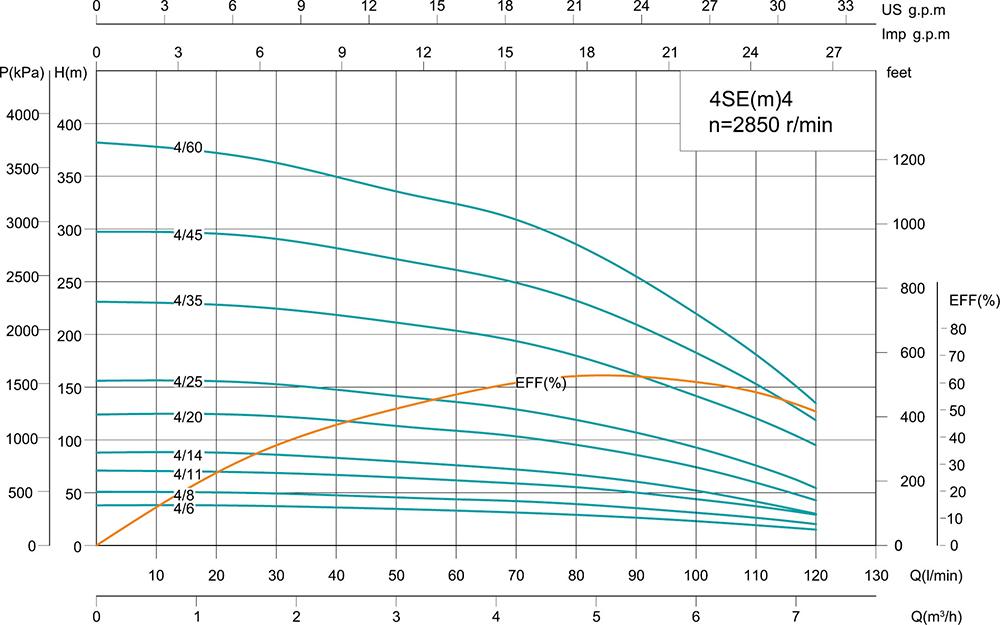

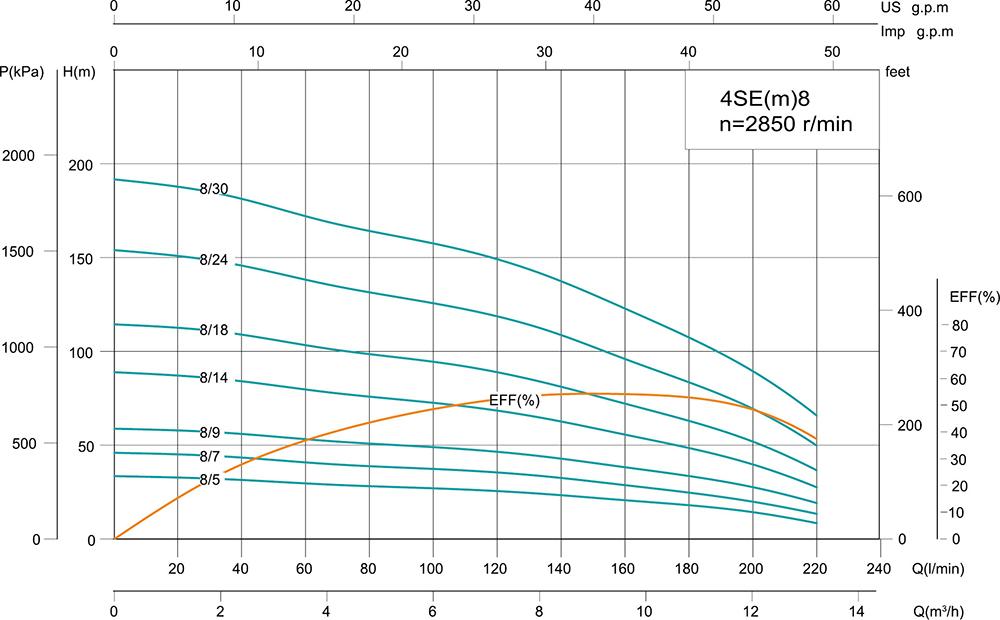

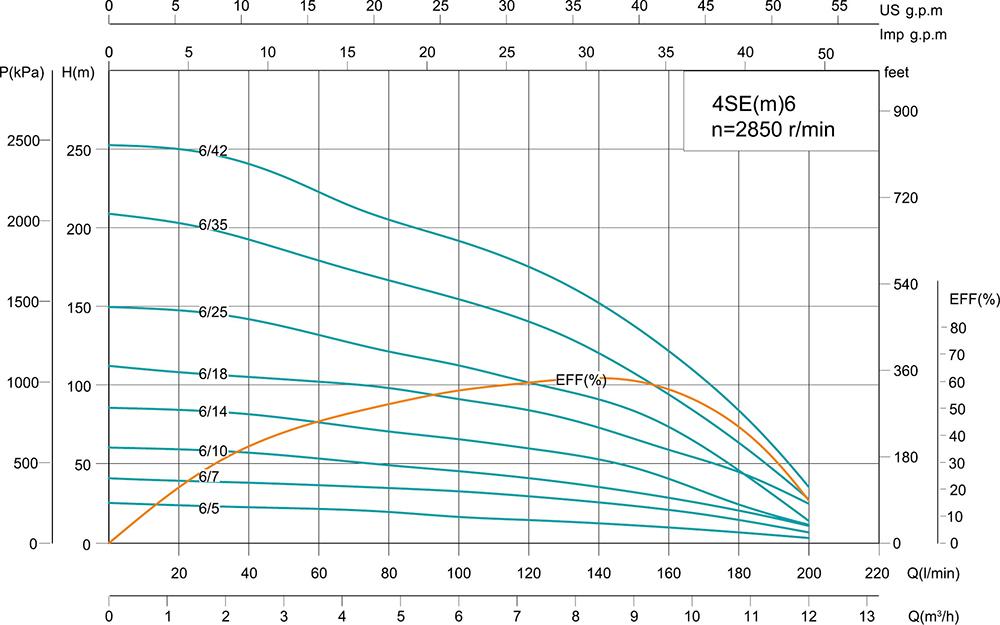

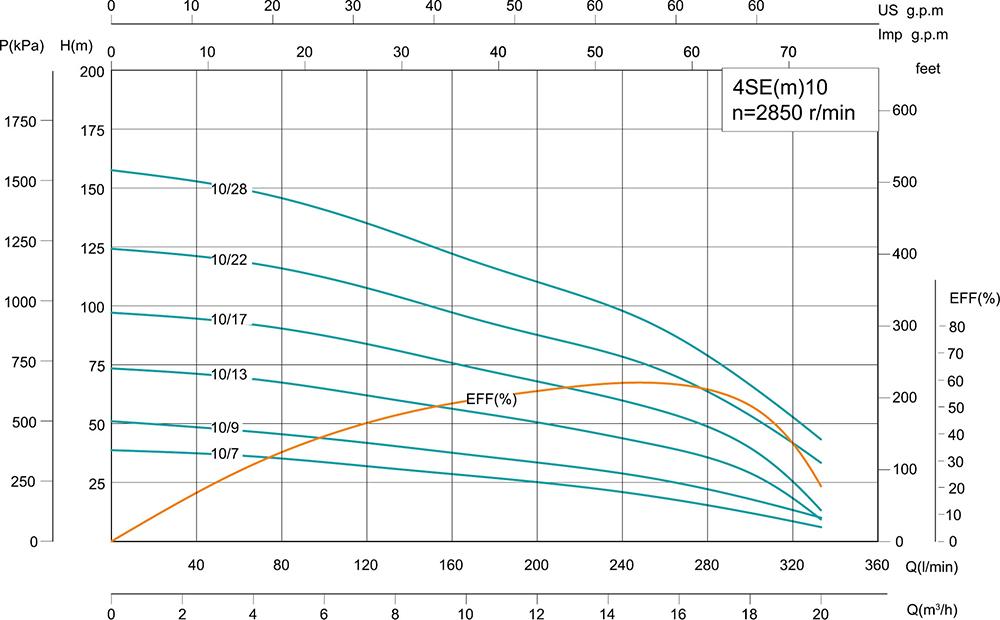

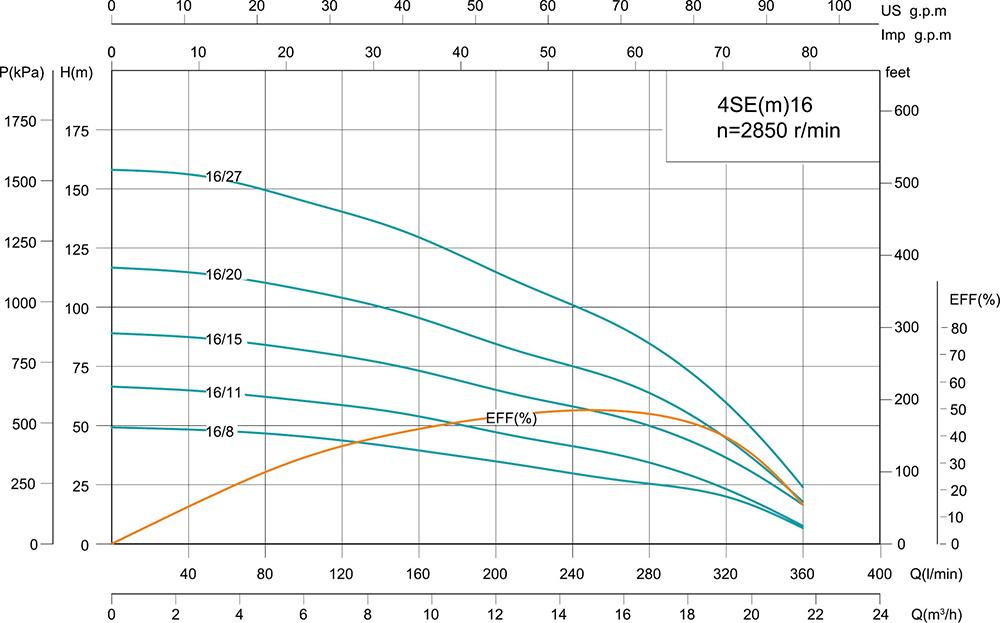

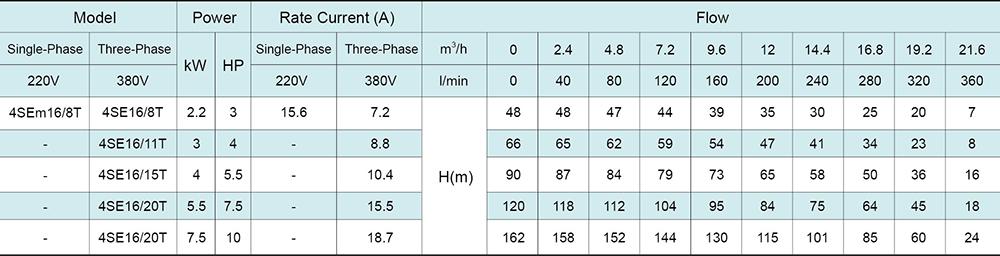

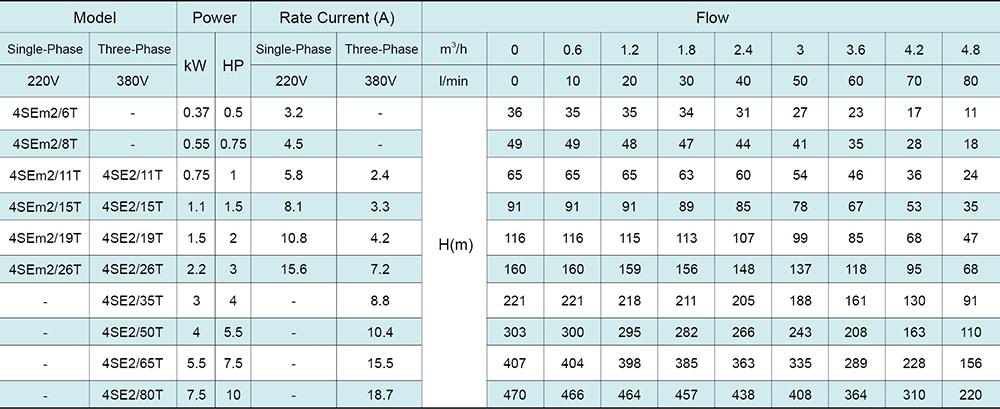

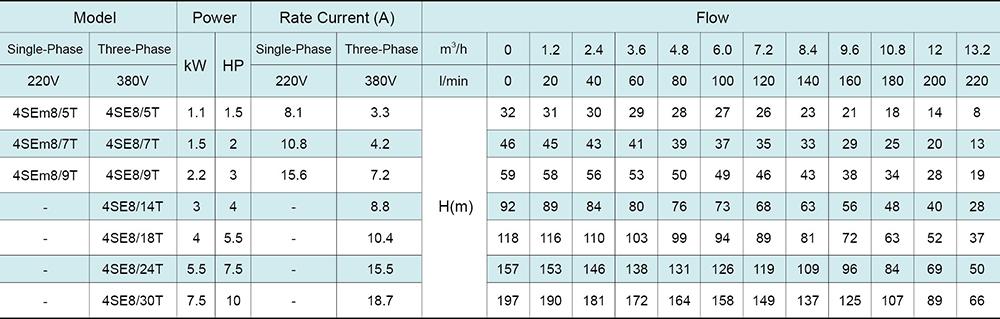

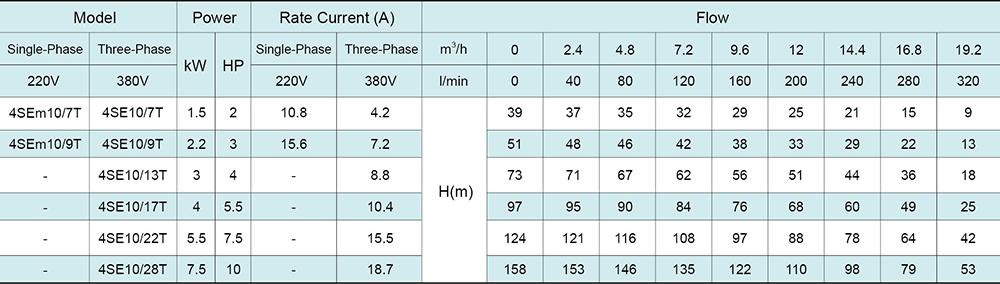

Performance Curve
4SE(m) 4' Deep Well Pump
4SE(m) 4' Deep Well Pump
4SE(m) 4' Deep Well Pump
4SE(m) 4' Deep Well Pump
4SE(m) 4' Deep Well Pump
4SE(m) 4' Deep Well Pump
4SE(m) 4' Deep Well Pump
4SE(m) 4' Deep Well Pump
4SE(m) 4' Deep Well Pump
4SE(m) 4' Deep Well Pump
4SE(m) 4' Deep Well Pump
4SE(m) 4' Deep Well Pump
