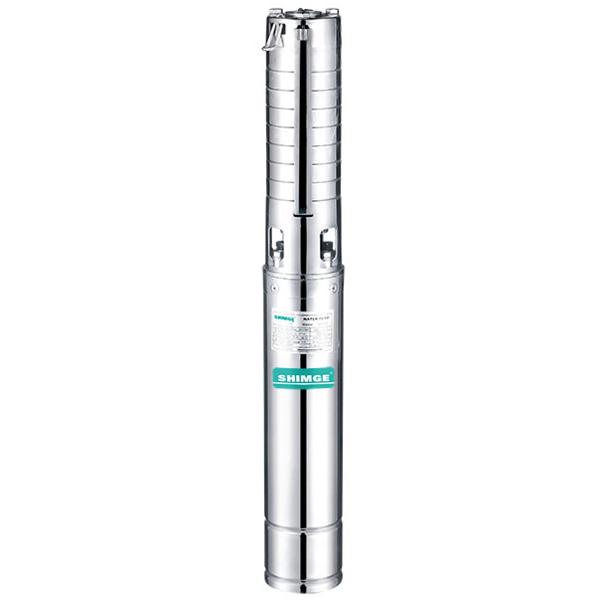

4SS 4' Deep Well Pump

4SS 4" Deep Well Pump

Performance Range

Max. Flow: 10.8m3/h
Max. Head: 330m

Application Limits
  • Max. ambient temperature < 40℃;
  • Sand content(in mass fraction)up to 0.01%;
  • Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
  • pH 6.5 to 8.5;
  • Maximum: 70m below the static water table.
Certificate
Certificate
Application Fields
  • Building/construction work/domestic water supply;
  • Irrigation and small water work;
  • Landscaping;
  • Water conservancy system;
  • Factory.
Features
  • Edible oil filled motor, stable& reliable running with pressure regulating membrane;
  • Single phase motor equipped with start box which built in capacitor ¤t mode thermal protector, convenient for replacement;
  • Available with stainless steel pump head, effective against the corrosion and abrasive wear;
  • Installation in 4" or larger boreholes.
Optional Available On Request

Pipe connection of discharge chamber is available with 1.25", 1.5", 2".

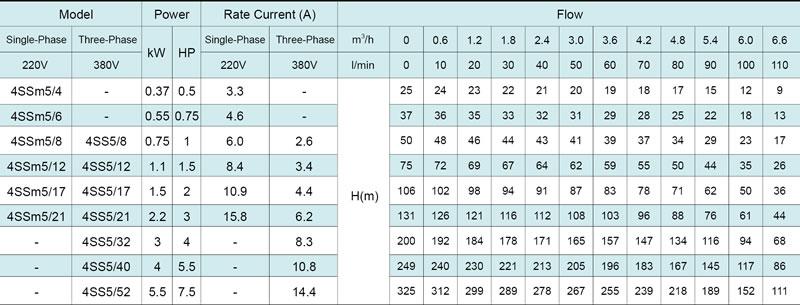

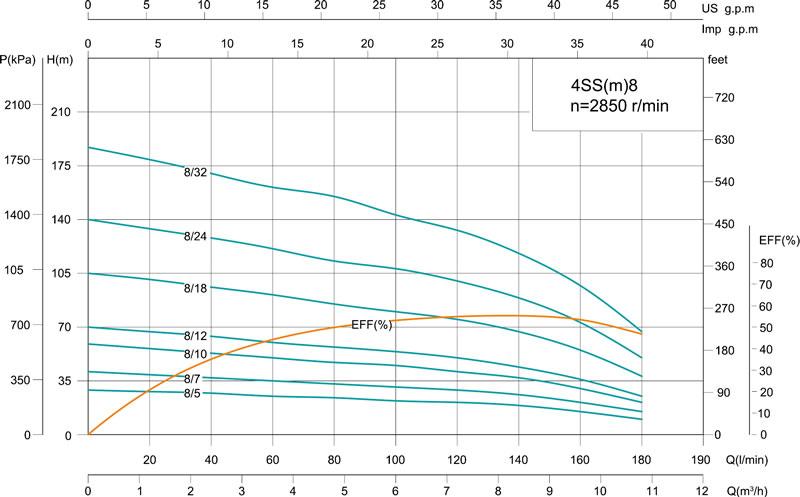

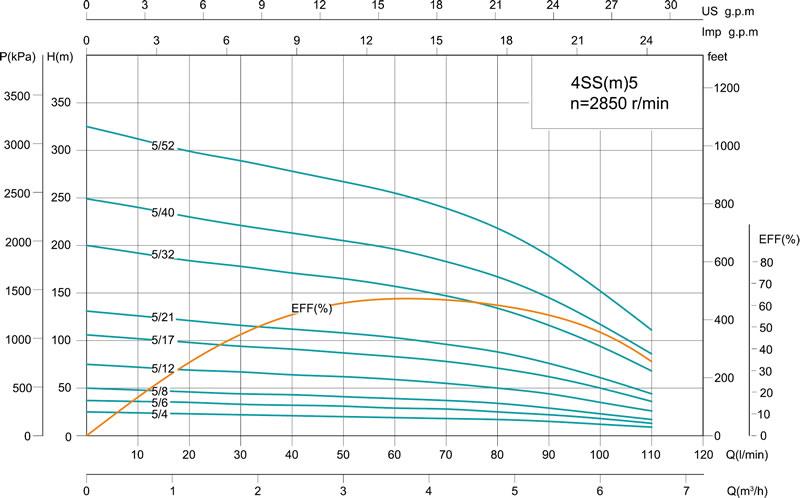

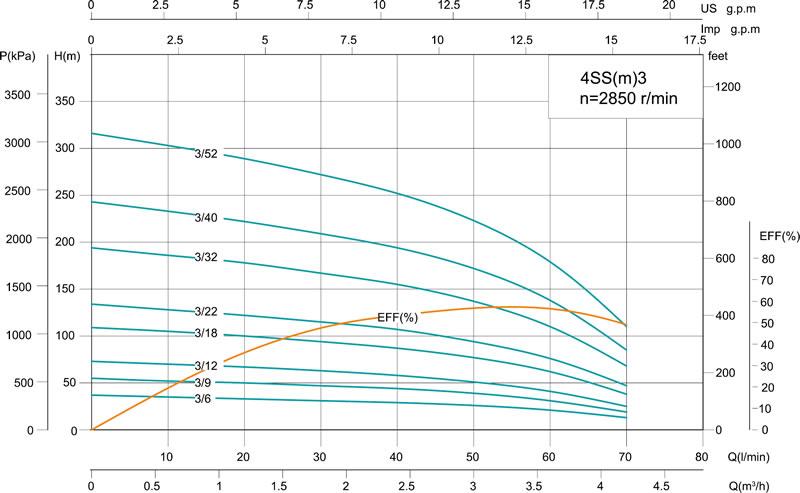

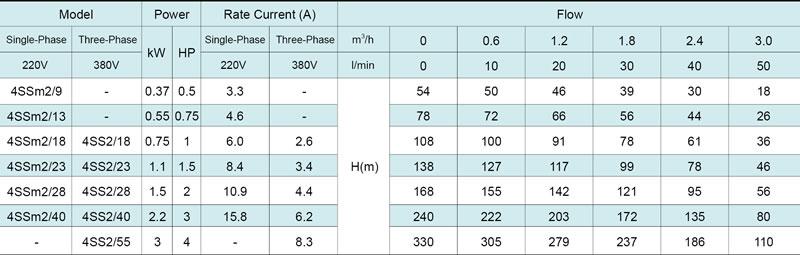

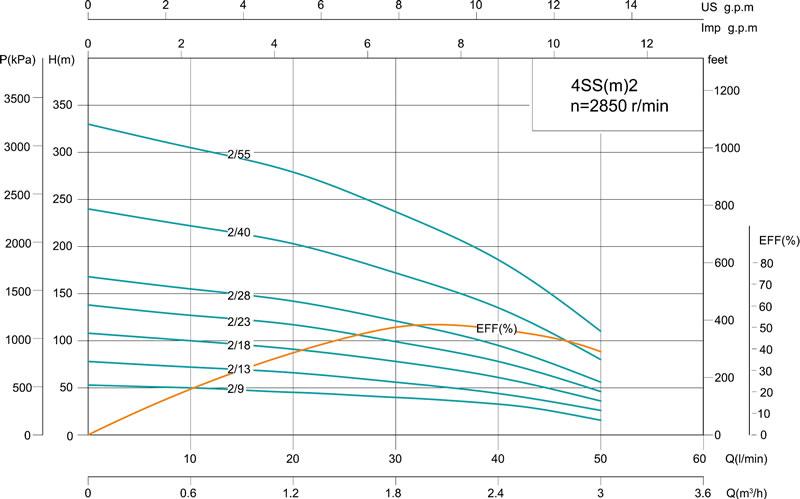

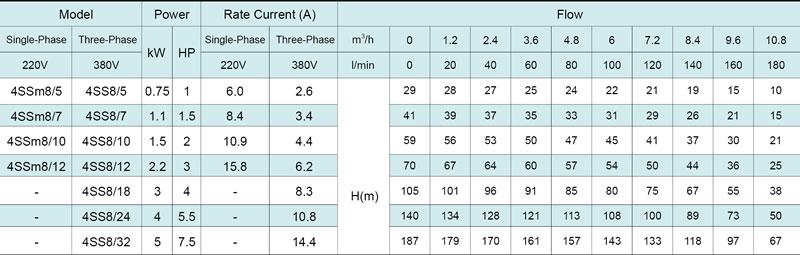

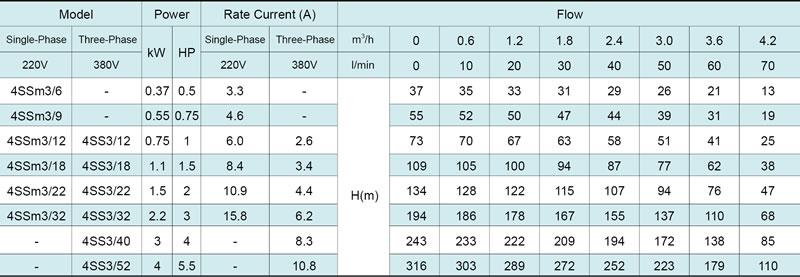

Performance Curve
4SS 4' Deep Well Pump
4SS 4' Deep Well Pump
4SS 4' Deep Well Pump
4SS 4' Deep Well Pump
4SS 4' Deep Well Pump
4SS 4' Deep Well Pump
4SS 4' Deep Well Pump
4SS 4' Deep Well Pump
