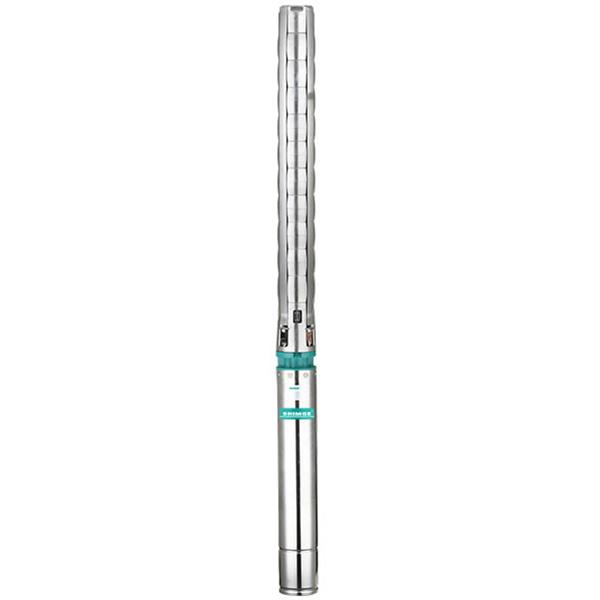

6SS 6’’ Deep Well Pump

Performance Range

Max. Flow: 78m3/h
Max. Head: 283m

Application Limits

1. Max. ambient temperature < 40℃;
2. Sand content(in mass fraction)up to 0.01%;
3. hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
4. pH 6.5 to 8.5;
5. Maximum: 70m below the static water table.


Application Fields

1. Building/construction work/domestic water supply;
2. Irrigation and small water work;
3. Landscaping;
4. Water conservancy system;
5. Factory.


1. Available with stainless steel pump head, effective against the corrosion and abrasive wear;
2. Edible oil filled motor, stable& reliable running with pressure regulating membrane;
3. Available with controller box, bring about general protection;
4. Installation in 6" or larger boreholes.

Optional Available On Request

Discharge chamber is available with 3"or 4"

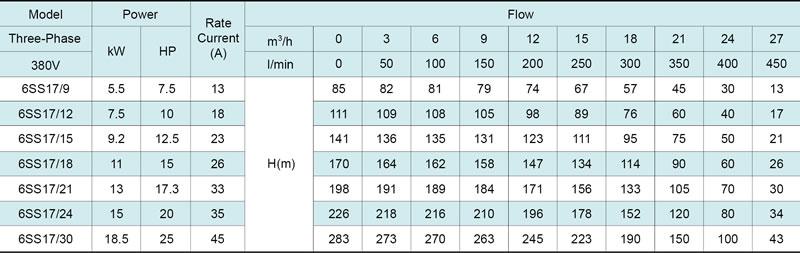

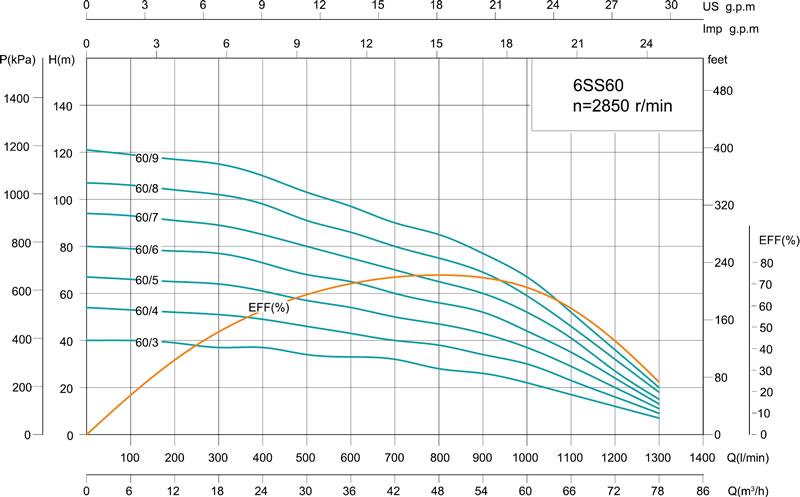

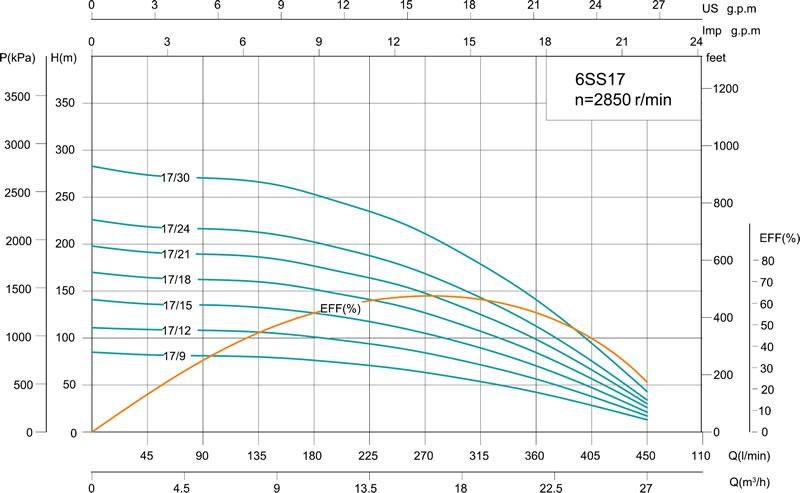

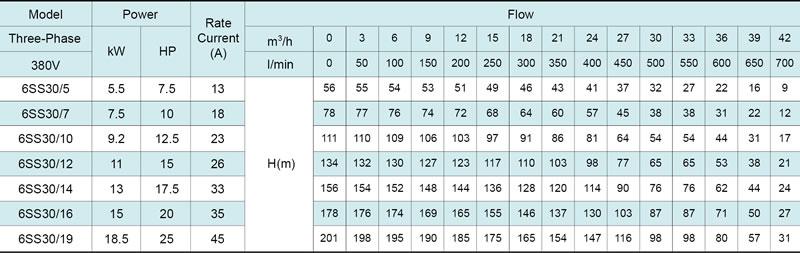

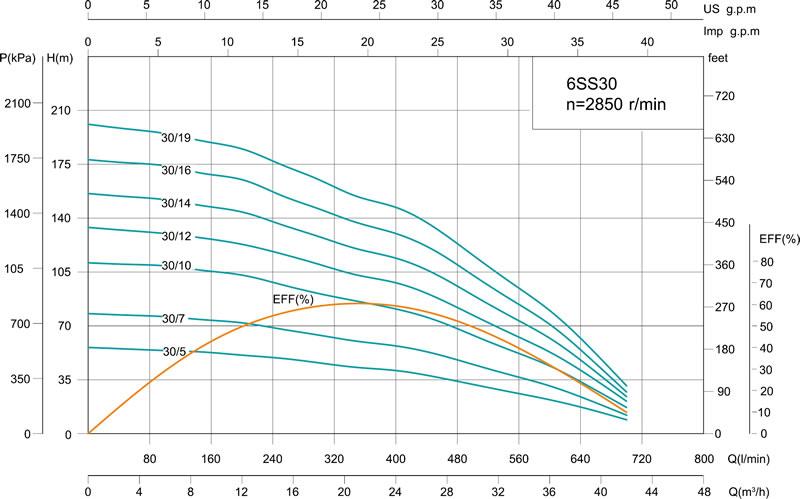

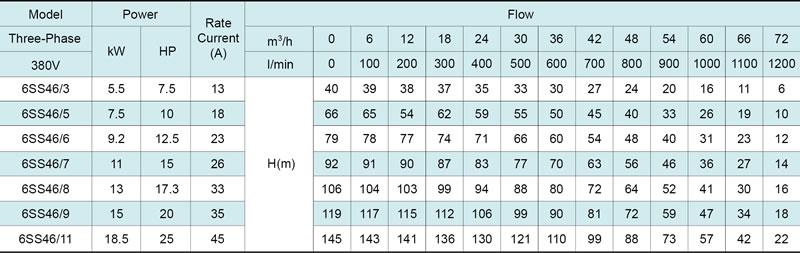

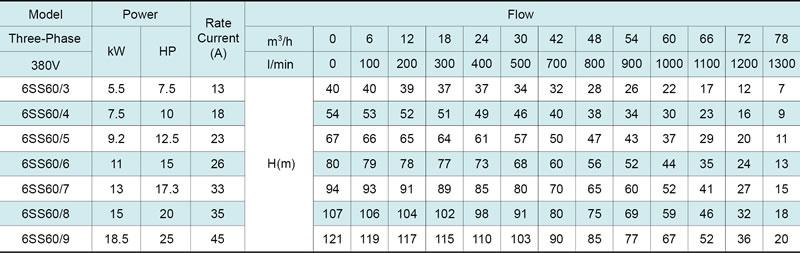

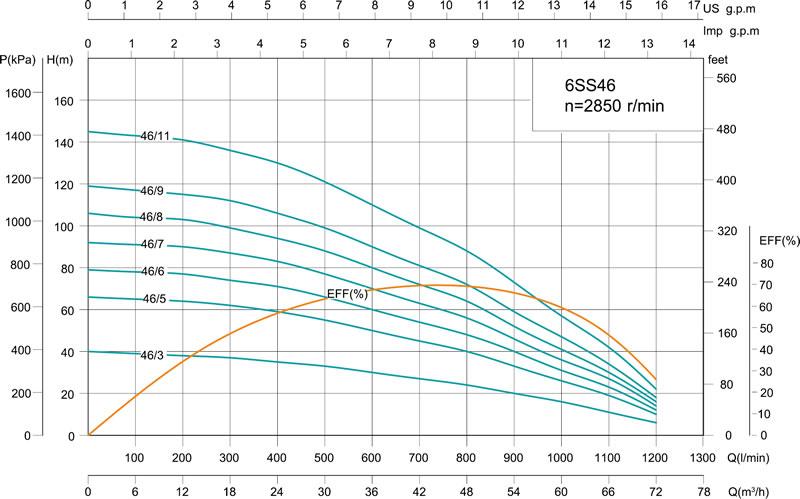

Performance Curve
