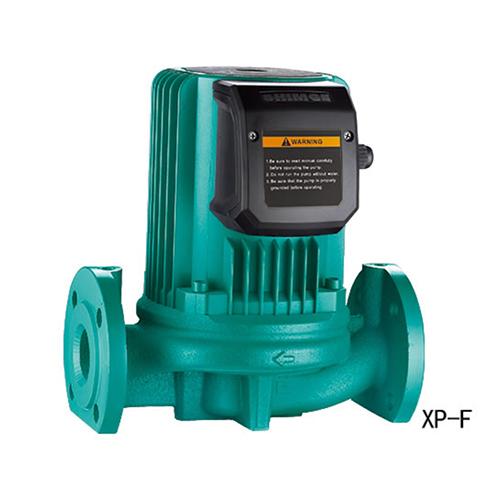

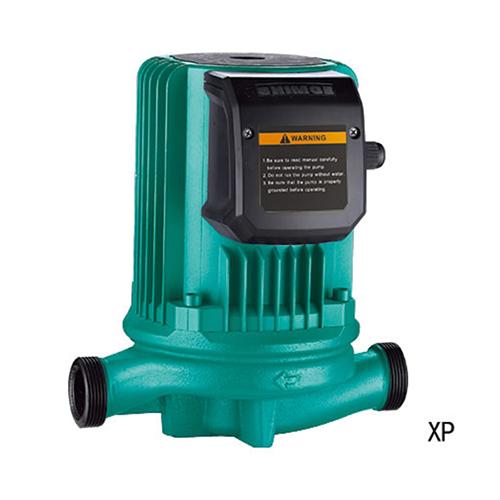

XP Single Speed Circulation Pump

inquiry form
Performance Range

1. Max. Flow: 30m3/h
2. Max. Head: 18m

Application Limits

1. Liquid temperature: +2℃~+110℃
2. Maximum ambient temperature: +40℃
3. Maximum system pressure: 10bar
4. Protection level: IP44
5. Mains connection: 220V/50Hz, 380V/50Hz
6. Insulation class: F
7. Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water
8. Installation: the motor shaft must be kept in horizontal direction
9. pH: 6.5 to 8.5

Certificate

Applications Fields

For HVAC systems such as air energy hot water circulation system, solar hot water circulation system, boiler heating system, pressurization of domestic tap water, industry hot or cold water circulation system, etc.

Features

1. Wet rotor, canned motor, low noise, no leakage
2. Silicon carbide friction pair, which is very wear-resisting

Optional Available on Request

1. Products can be customized according to customer's voltage and frequency
2. Brass pump body, enamel pump body, stainless steel pump body

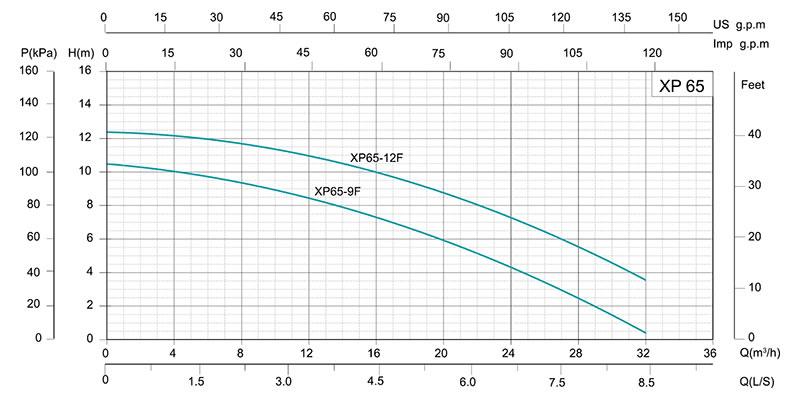

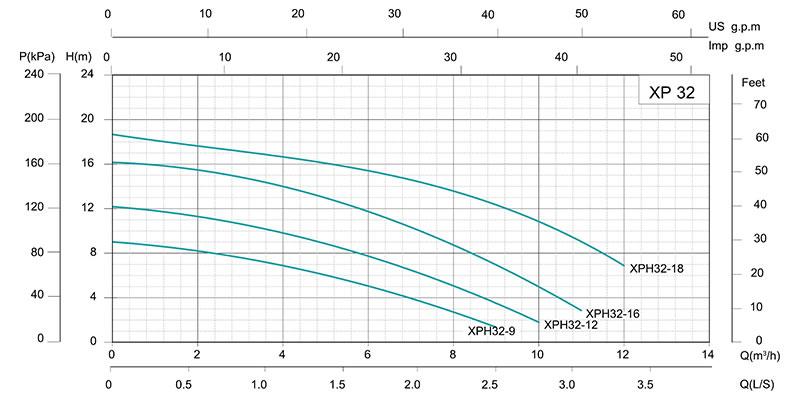

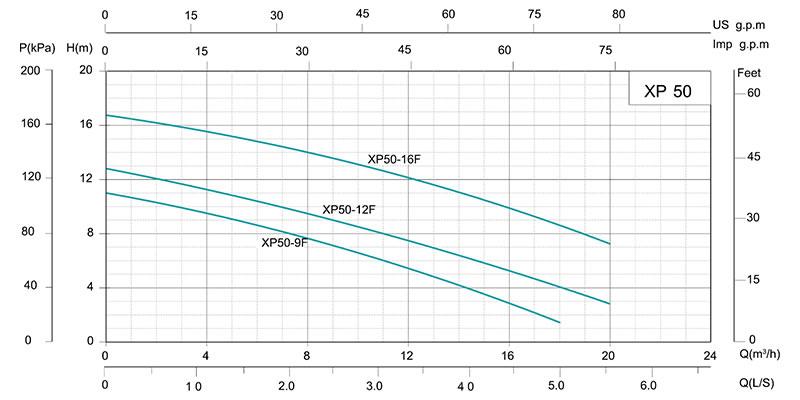

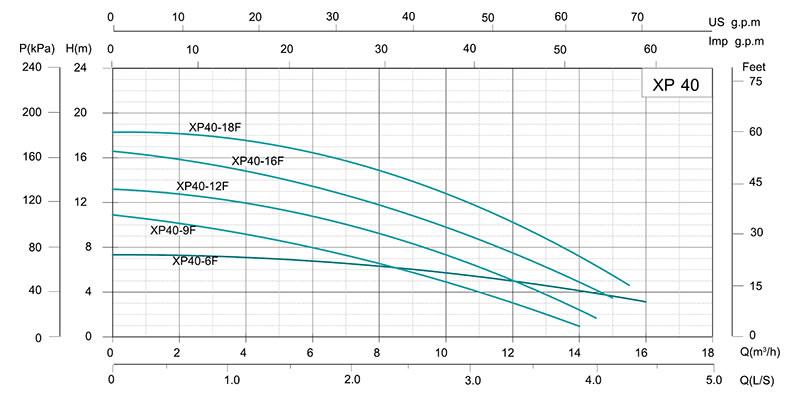

Performance Curve
