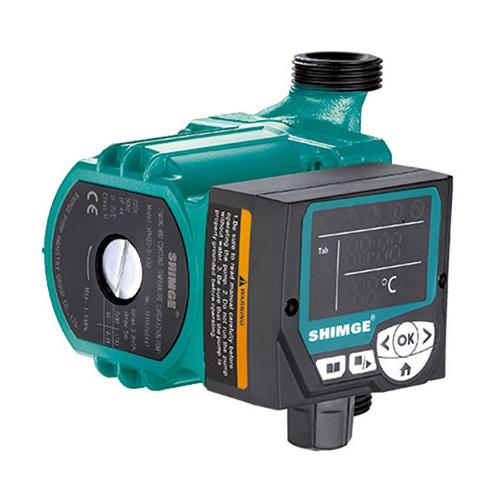

XPH Timing and Constant Temperature Circulation Pump

inquiry form
Performance Range

1. Max. Flow: 3.5m3/h
2. Max. Head: 6m

Application Limits

1. Liquid temperature: +2℃~+75℃
2. Maximum ambient temperature: +40℃
3. Maximum system pressure: 10bar
4. Protection level: IP44
5. Mains connection: 220V/50Hz, 220V/60Hz, 127V/60Hz
6. Insulation class: H
7. Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water
8. Installation: the motor shaft must be kept in horizontal direction
9. pH: 6.5 to 8.5

Certificate

Applications Fields

XPH series circulating pump is specifically designed for heating systems such as mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system, etc.

Features

1. Low noise
2. No leakage
3. Timing operation
4. Temperature constant operation
5. Timing and temperature constant operation

Optional Available on Request

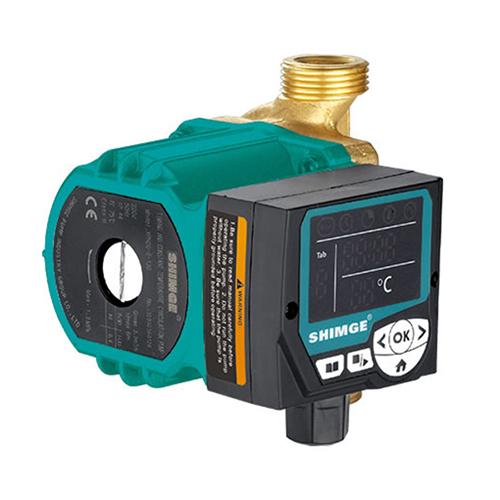

Brass pump body, enamel pump body, stainless steel pump body

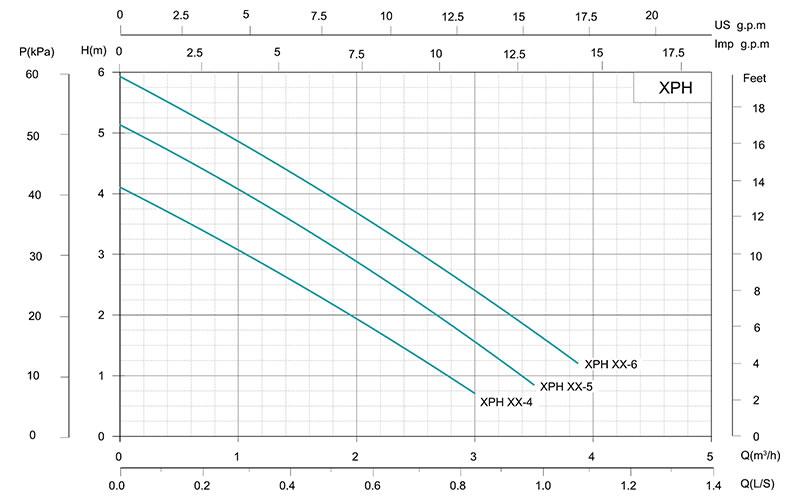

Performance Curve
