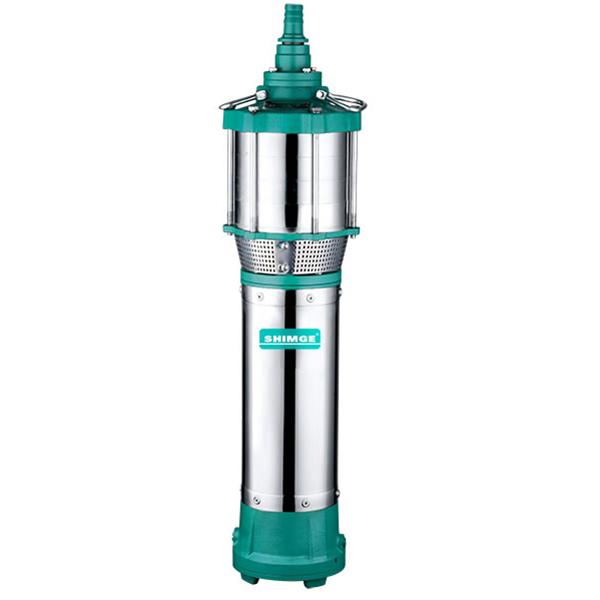

Q(D)Y-K2 Multi-stage Submersible Pump

Performance Range

Max. Flow: 34m3/h
Max. Head: 127m

Application Limits

1. Maximum liquid temperature +40℃
2. pH level from 6.5-8.5
3. Maximum sand content is 0.1%. Passage of suspended solids up to 0.2mm
4. Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC for three phase with the range from -10% to 10%.
5. Immersion depth from 0.5m-5m

Certificate

Application Fields

Due to multi-stage structure, Q(D)Y-K2 series pumps with high pressure are widely applied in many fields, such as agricultural irrigation, sprinkler irrigation, garden irrigation, water supply for wells, reservoirs, aquaculture, etc.

Features

1. Oiled well pump motor structure, portable and durable.
2. The impeller and flow components are made of engineering plastics which apply to use in seawater.
3. High head, multistage centrifugal pump.

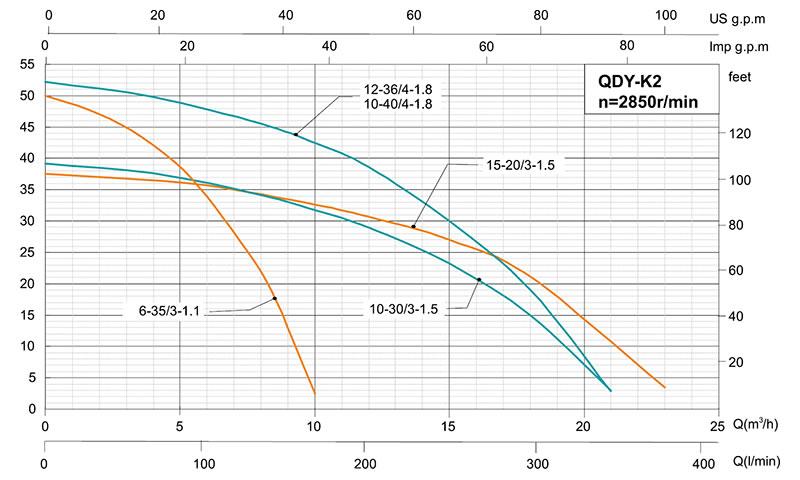

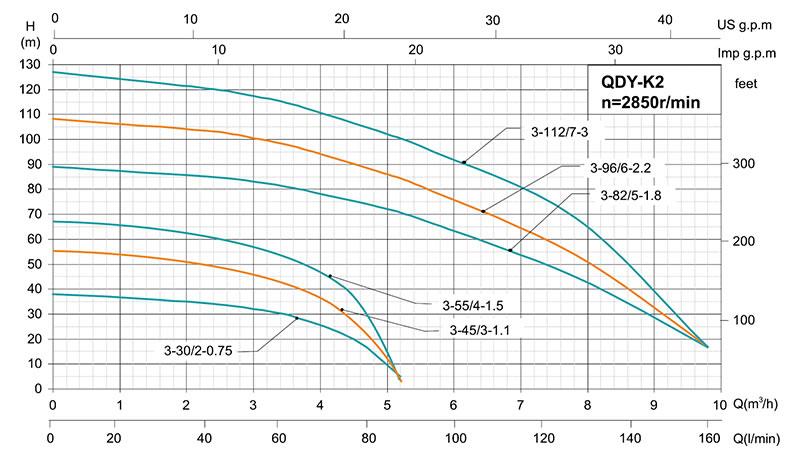

Performance Curves
