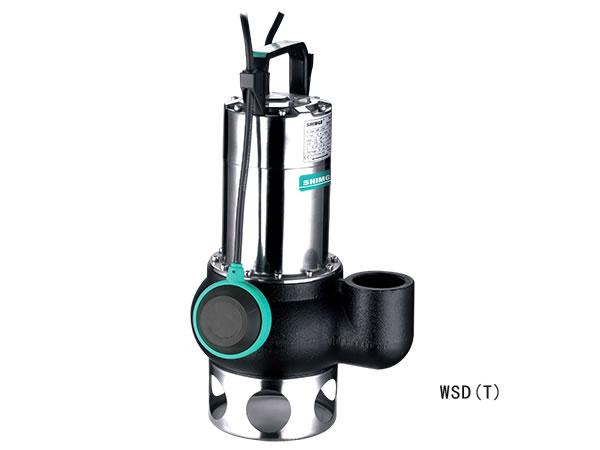

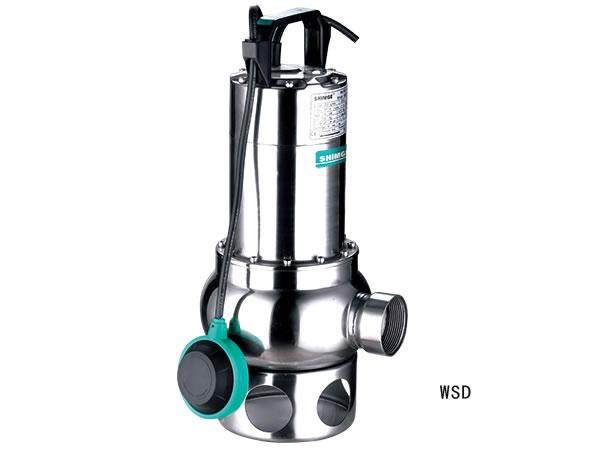

WSD Stainless Steel Submersible Sewage Pump

Performance Range

Max. Flow: 22m3/h
Max. Head: 10

Application Limits

1. Maximum liquid temperature +40℃
2. pH level from 4-10
3. Passage of suspended solids up to 50mm
4. Power frequency is 50Hz. Voltage fluctuation range ±10%

Certificate

Application Fields

With small size and light weight, the WSD(50Hz) series pump is especially suitable for the rural wells water pumping, farmland irrigation and drainage, garden watering, water spraying and family households, as well as other applications such as industrial, construction, aquaculture, fish ponds, etc.

Features

1. External components of SS304 material which is corrosion-resistant.
2. Whirlpool impeller with larger passage of suspended solid.
3. Automatic operation for the floating switch.

Optional Available on Request

Other voltage or frequency is 60Hz

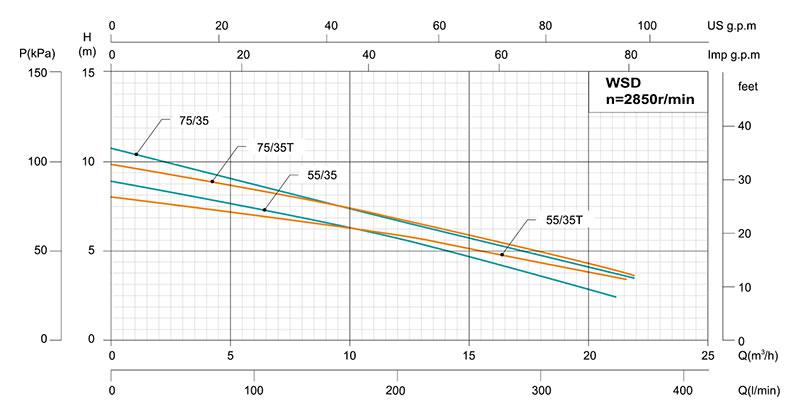

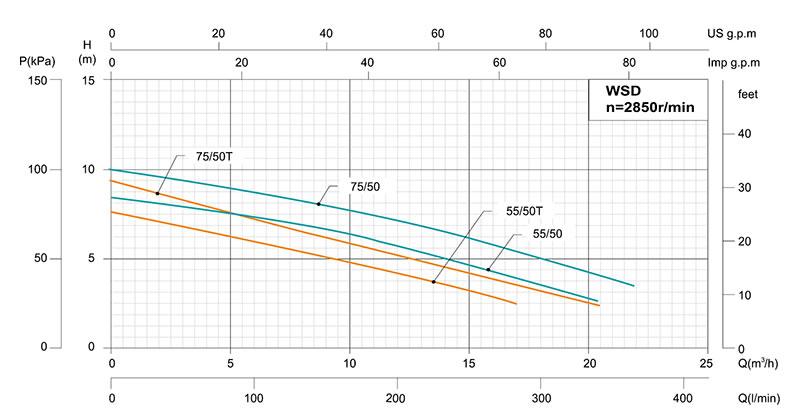

Performance Curves
