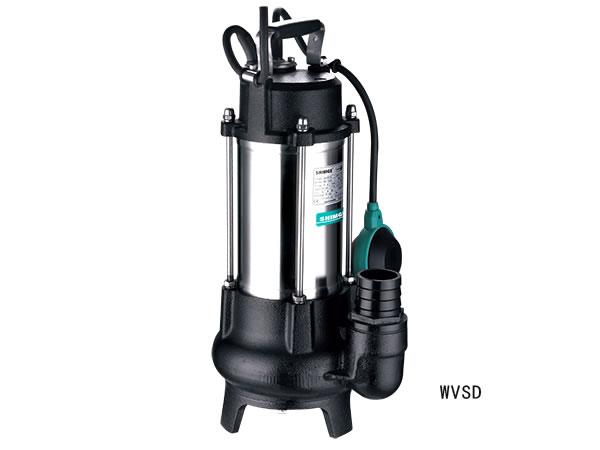

WVSD Stainless Steel Submersible Sewage Pump

Performance Range

Max. Flow: 27m3/h
Max. Head: 15

Application Limits

1. Maximum liquid temperature +40℃
2. pH level from 4-10
3. Maximum liquid density 1.2×103 kg/m3
4. Power frequency is 50Hz. Nominal voltage is 220VAC for single-phase and 380VAC with tolerance of ±10%.
5. Immersion depth from 0.5m-5m

Certificate

Application Fields

WVS(D) series pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as short fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc. They are ideal equipment for agricultural irrigation and drainage, pool silt cleaning and site construction, but do not apply to the location with explosion-proof requirements.

Features

1. Stainless steel casing and rod bolts, beautiful, durable and stable.
2. Opening impeller with good flow ability.
3. The stainless steel shaft extension, carbide double sides mechanical sealing.

Optional Available on Request

Other voltage or frequency is 60Hz

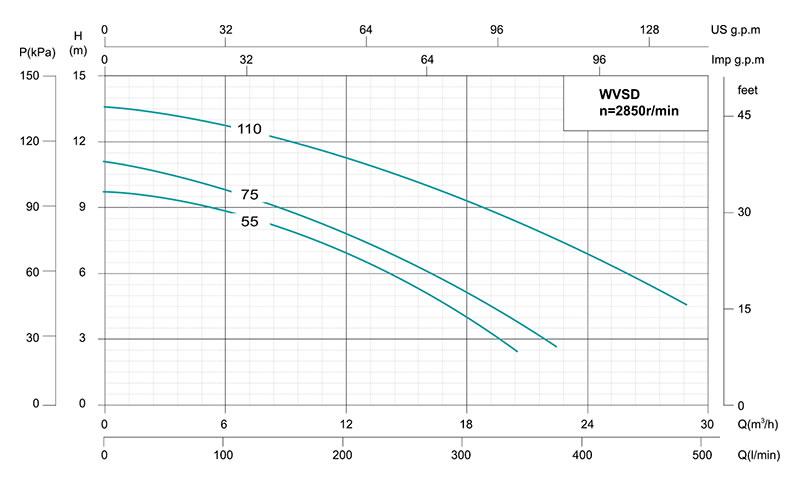

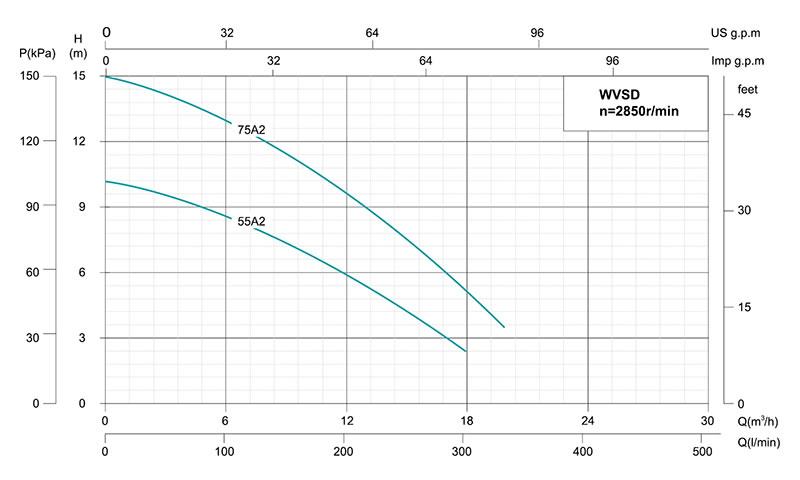

Performance Curves
