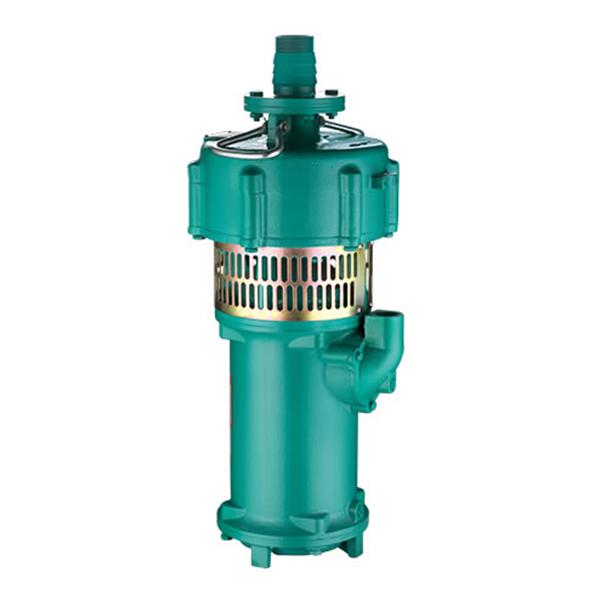

QY Multi-stage Submersible Pump

Performance Range

Max. Flow: 360m3/h
Max. Head: 190m

Application Limits

1. Maximum liquid temperature +40℃
2. pH level from 6.5-8.5
3. Maximum sand content is 0.1%.Passage of suspended solids up to 0.2mm
4. Power frequency is 50Hz.Nominal voltage is 380VAC for three phase with the range from -10% to 10%
5. Immersion depth from 0.5m-5m


Application Fields

Due to multi-stage structure, QY-L1/L2 series pumps with high pressure are widely applied in many fields, such as agricultural irrigation, sprinkler irrigation, garden irrigation, water supply for wells or reservoirs, aquaculture, etc.


1. Wear-resistant whole cast iron parts design.
2. Compact structure, easy to use.
3. High quality double sides mechanical sealing to be reliable operating.

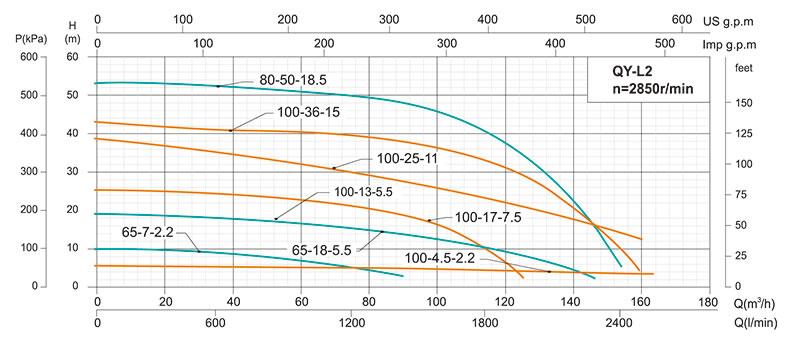

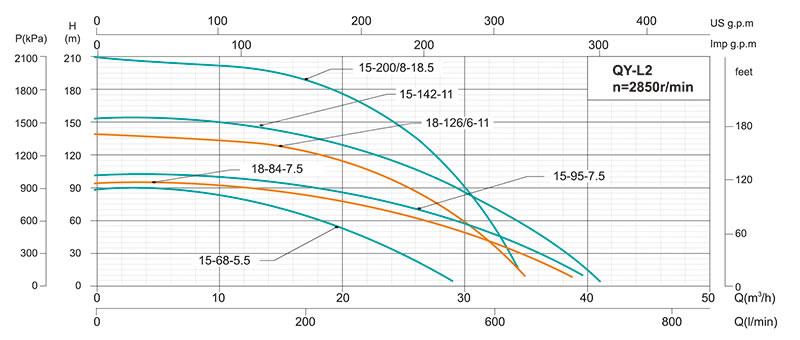

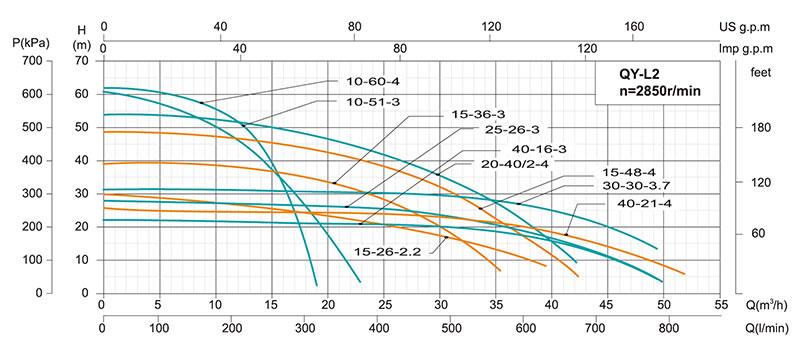

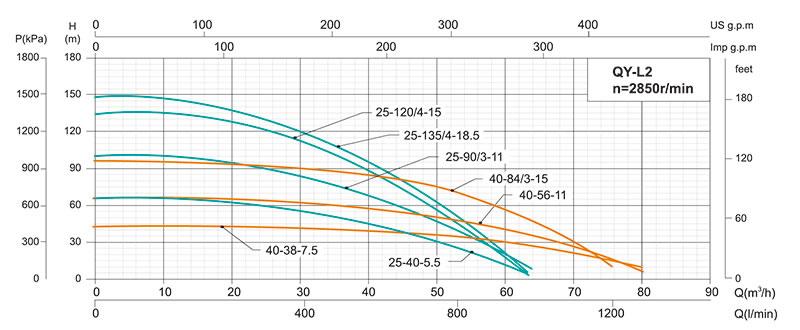

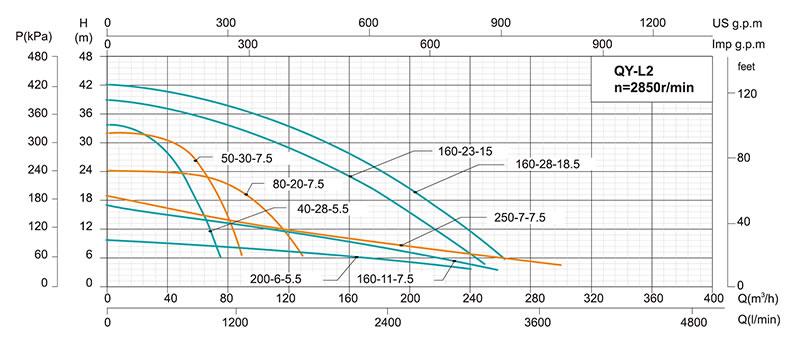

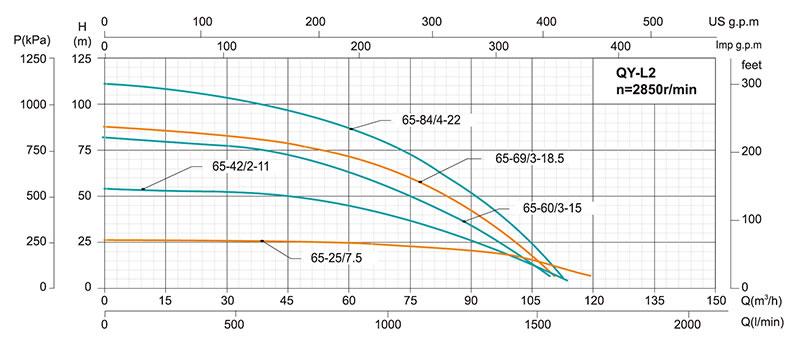

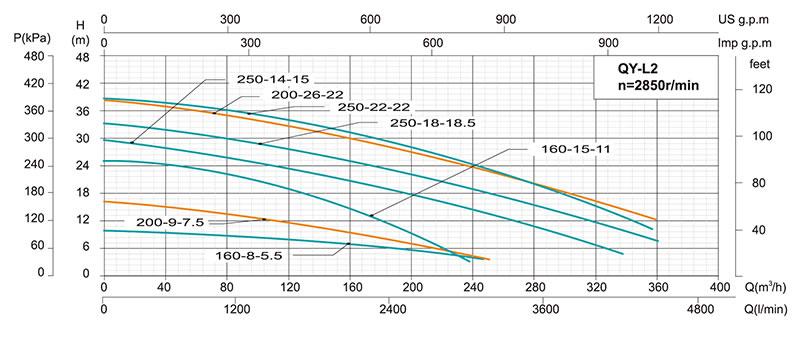

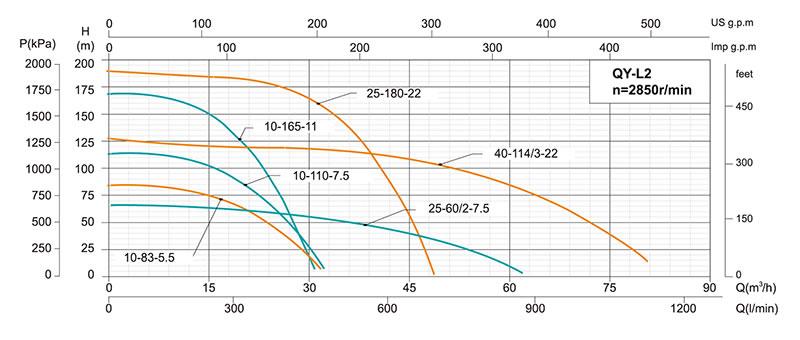

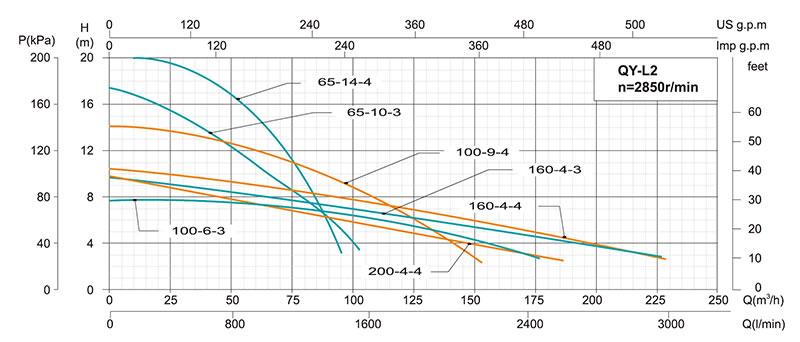

Performance Curves
