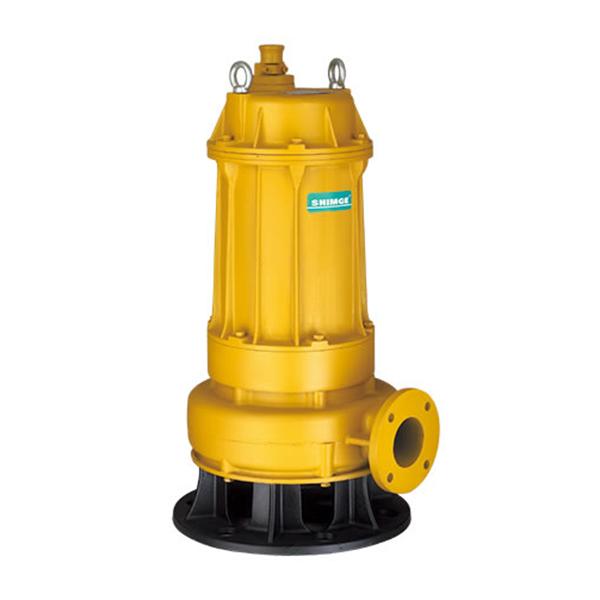

WQ Multi-stage Submersible Sewage Pump

Performance Range

Max. Flow: 63m3/h
Max. Head: 44m

Application Limits

1. Maximum liquid temperature +40℃
2. pH level from 4-10
3. Maximum liquid density 1.2×103kg/m3
4. Voltage fluctuation range ±10%
5. Immersion depth from 0.5m-5m

Certificate

Application Fields

WQ(Single stage with high power) series pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as short fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc. They are ideal equipment for agricultural irrigation and drainage, pool silt cleaning and site construction, but do not apply to the location with explosion-proof requirements.

Features

1. Large power submersible sewage pump, the standard flange outlet.
2. Double channel impeller, good flowing capacity, excellent hydraulic performance.
3. Stainless steel shaft extension and carbide double side mechanical sealing.

Optional Available on Request

Other voltage or frequency is 60Hz

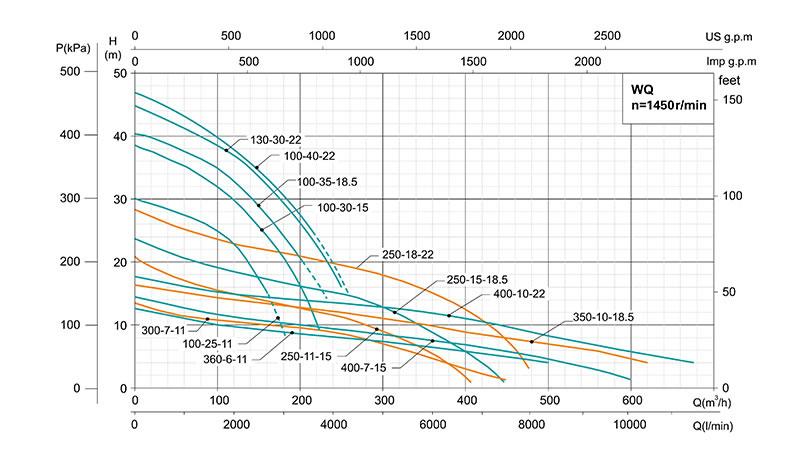

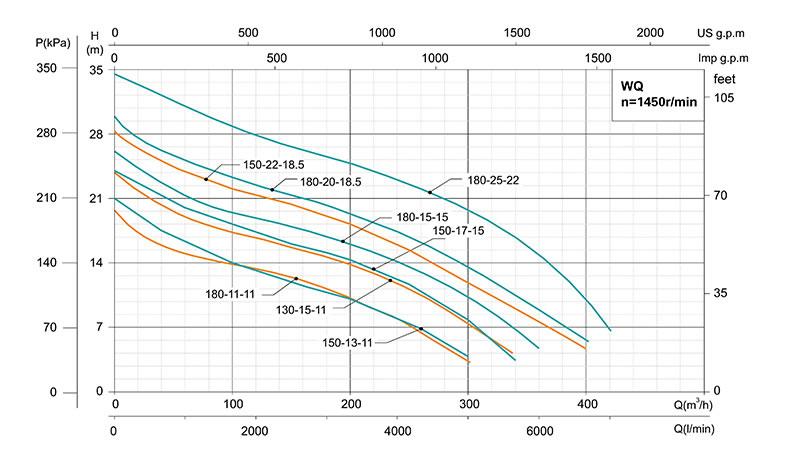

Performance Curves
