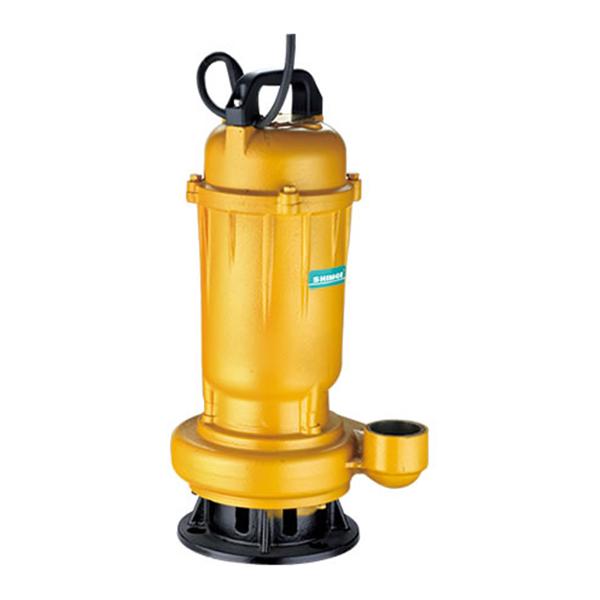

WQ(D) Multi-stage Submersible Sewage Pump

Performance Range

Max. Flow: 140m3/h
Max. Head: 44m

Application Limits

1. Maximum liquid temperature +40℃
2. pH level from 4-10
3. Maximum liquid density 1.2×103kg/m3
4. Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC or 415VAC for three phase with the range from -10% to 10%.
5. Immersion depth from 0.5m-5m

Certificate

Application Fields

WQ(D) series pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as short fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc. They are ideal equipment for agricultural irrigation and drainage, pool silt cleaning and site construction, but do not apply to the location with explosion-proof requirements.

Features

1. Wear-resistant whole cast iron parts design
2. Double channel impeller, good flow capacity, excellent hydraulic performance
3. The stainless steel shaft extension, carbide double sides mechanical sealing

Optional Available on Request

Other voltage or frequency is 60Hz

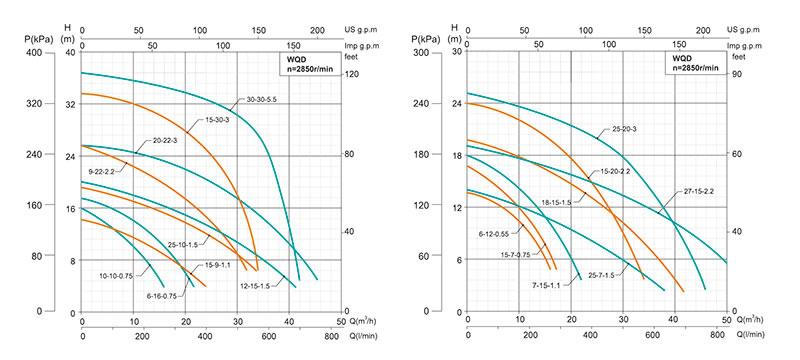

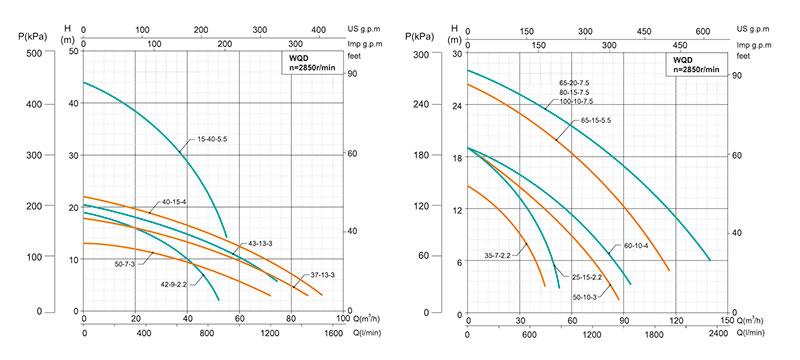

Performance Curves
